2013 Kawasaki Brute Force® 750 4x4i EPS Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2013 Kawasaki Brute Force® 750 4x4i EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

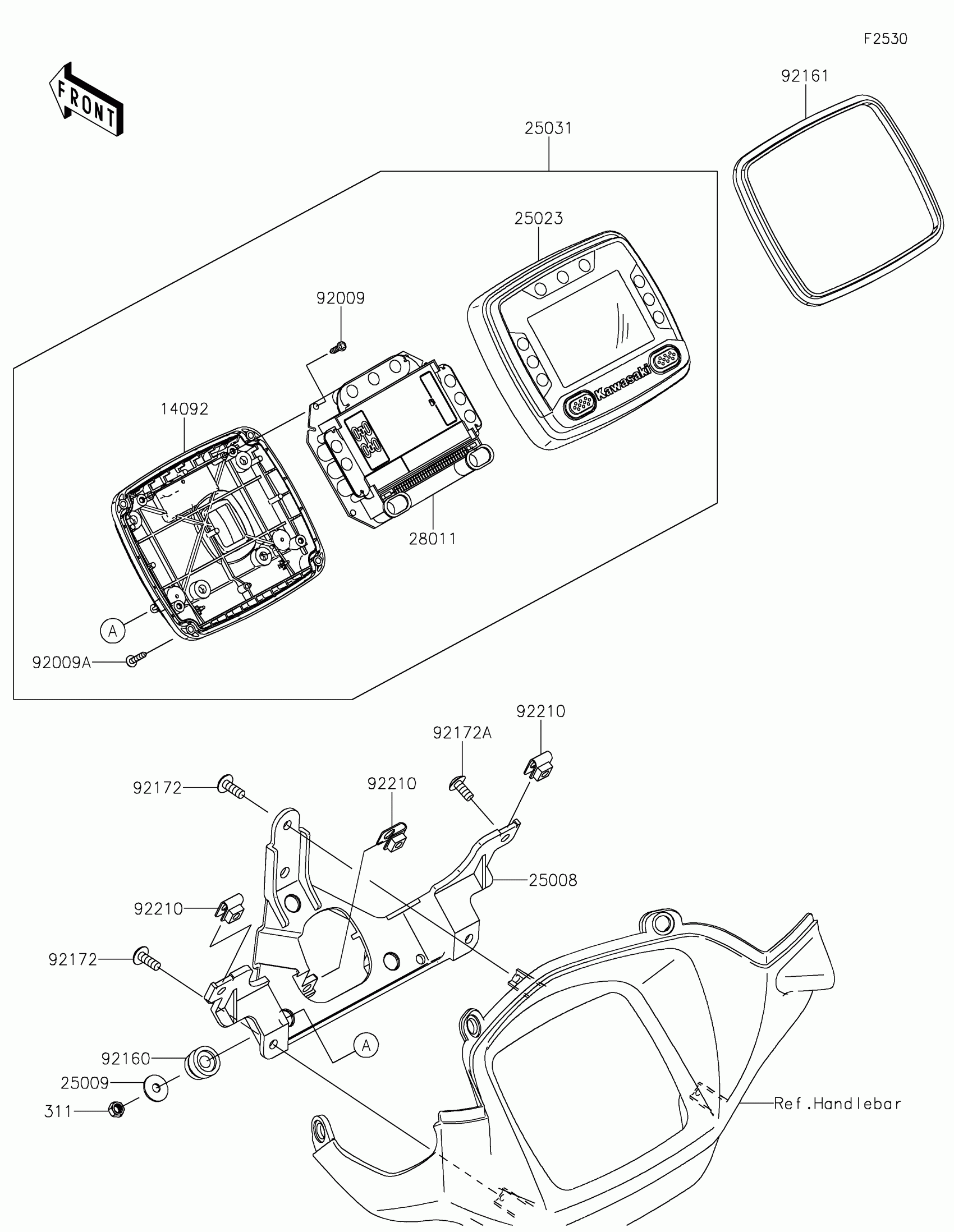

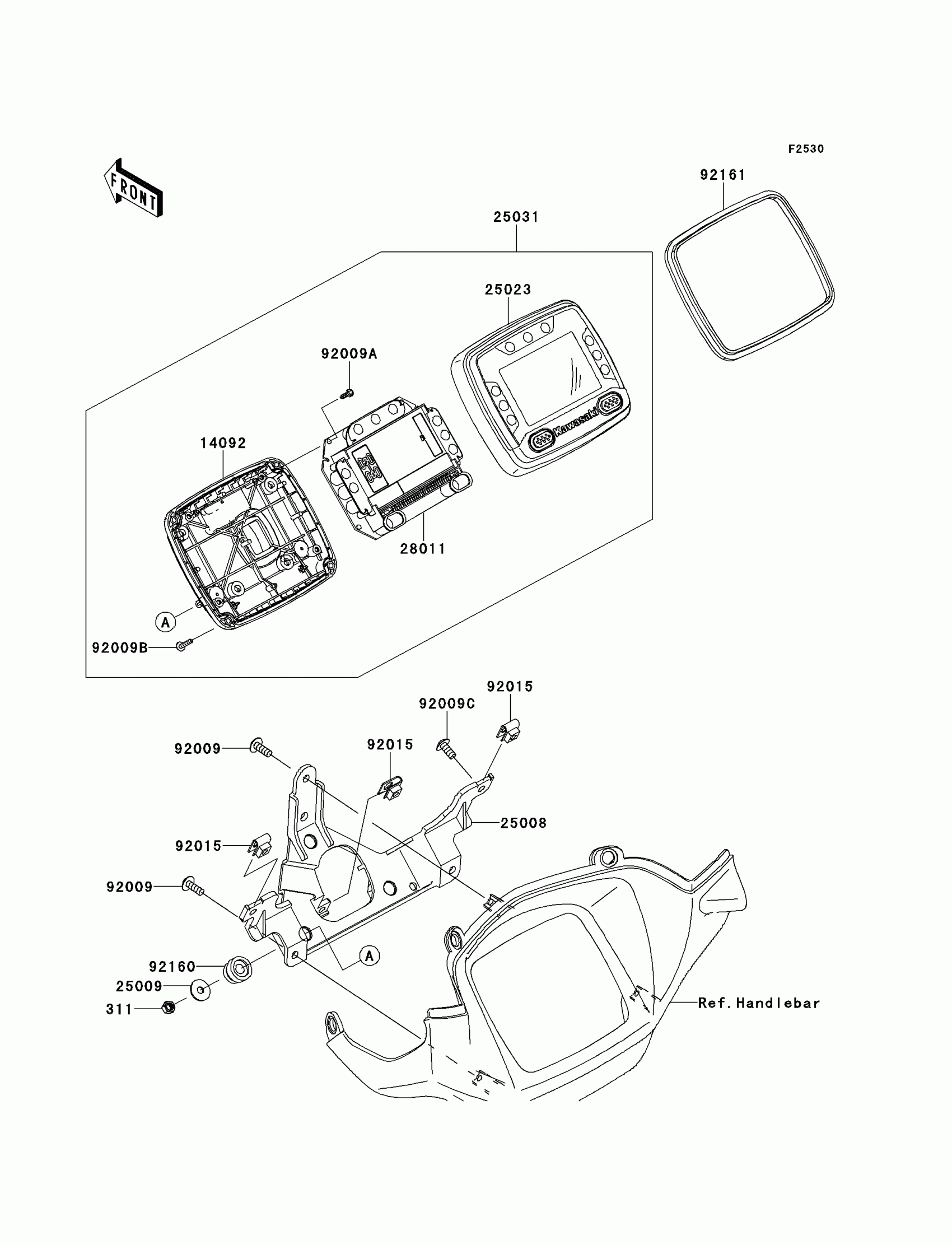

2013 Kawasaki Brute Force® 750 4x4i EPS Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

311

NUT-HEX,5MM

311AB0500

1
Out of stock

14092

COVER,LWR CASE

14092-0179

1
Out of stock

25008

BRACKET-METER

25008-0034

1
Out of stock

25009

WASHER,5.2X16X1.2

25009-004

1
Out of stock

25023

COVER-METER CASE,UPP

25023-0069

1
Out of stock

25031

METER-ASSY

25031-0363

1
Out of stock

28011

METER,LCD

28011-0181

1
Out of stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92009A

SCREW,3X12

92009-1326

1
Out of stock

92009B

SCREW,TAPPING,3X16

92009-1391

1
Out of stock

92009C

SCREW,5X12

92009-1652

1
Out of stock

92015

NUT,5MM

92015-1573

1
Out of stock

92160

DAMPER

92160-1460

1
Out of stock

92161

DAMPER,METER

92161-0906

1
Out of stock
