2013 Kawasaki Brute Force® 750 4x4i EPS Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2013 Kawasaki Brute Force® 750 4x4i EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

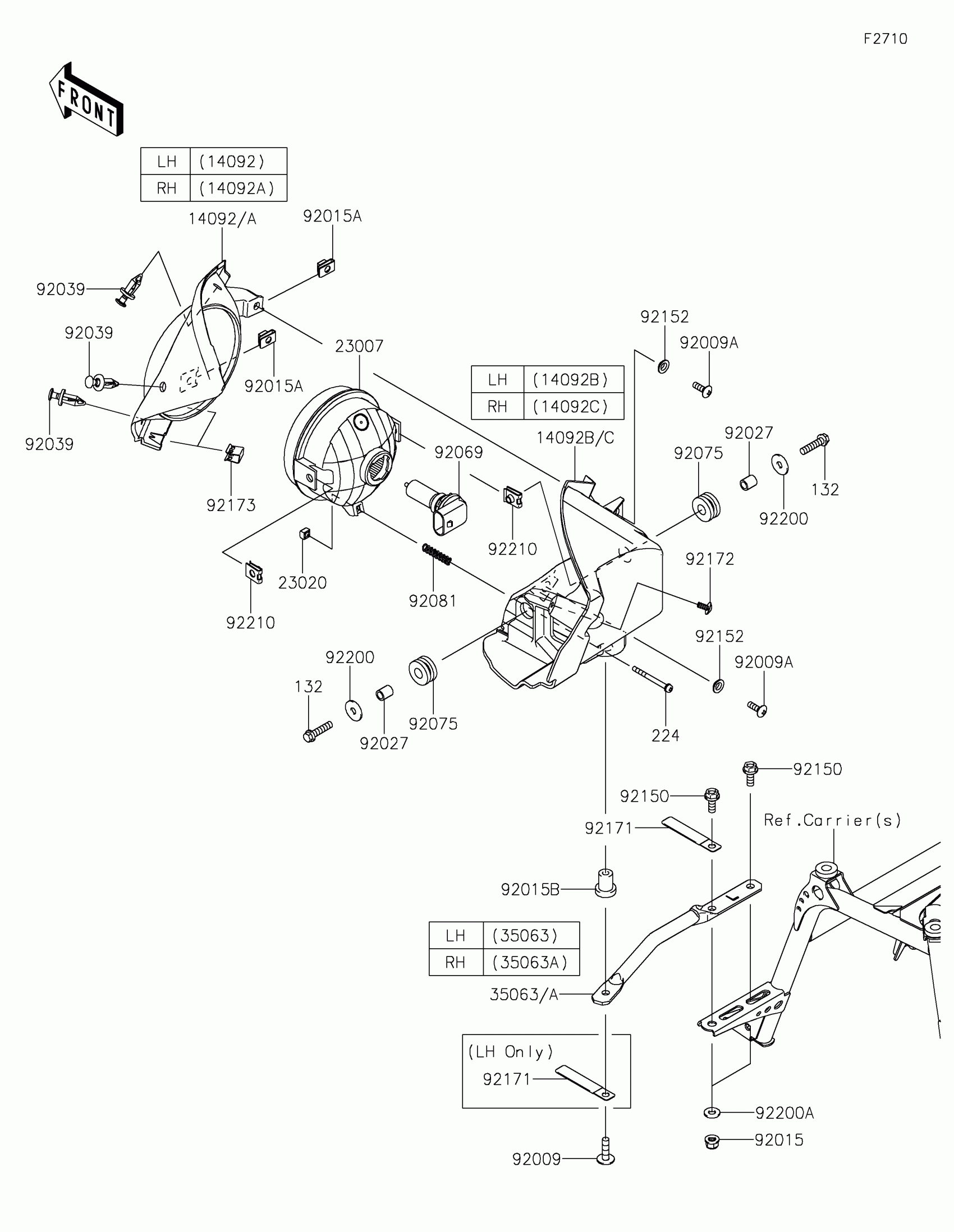

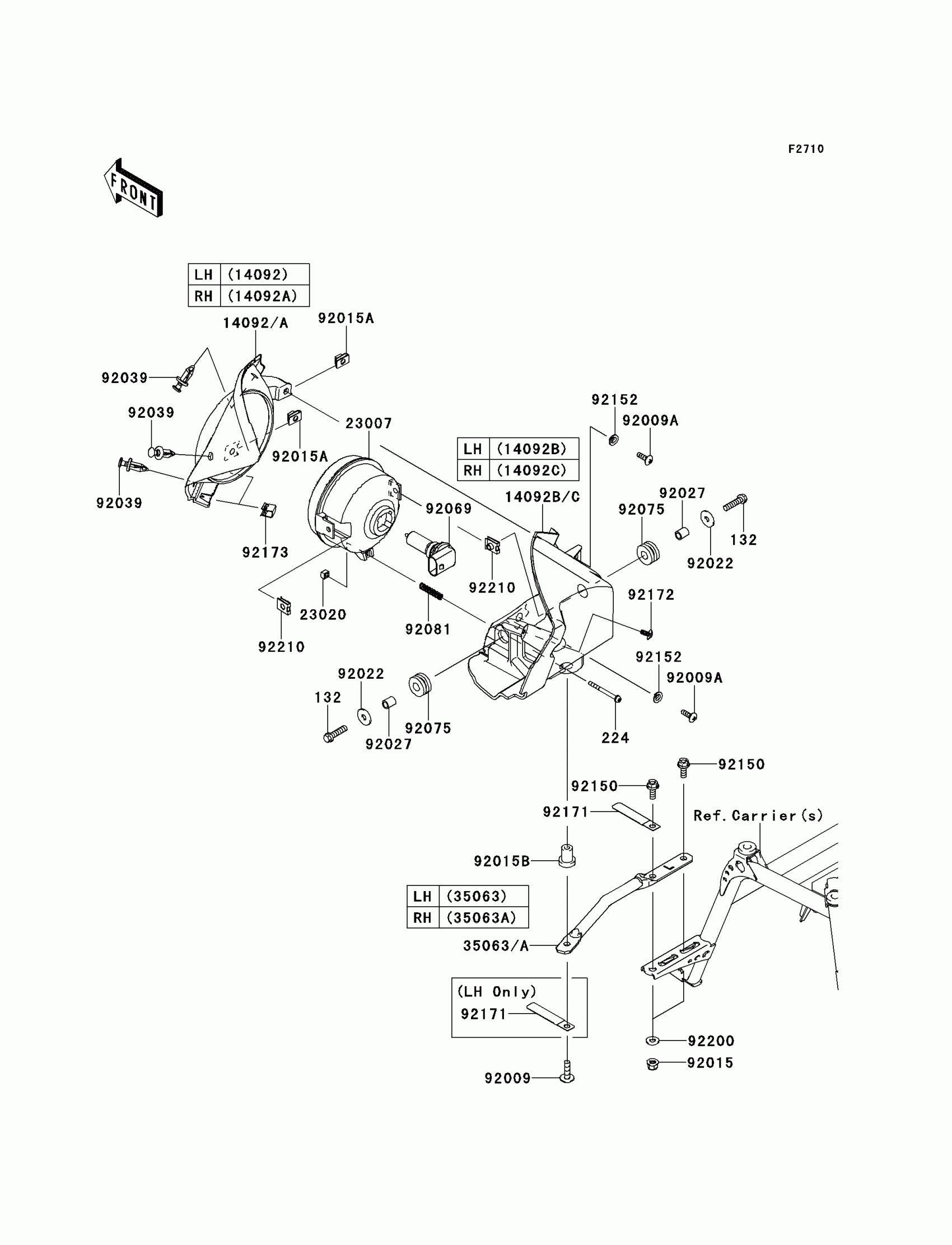

2013 Kawasaki Brute Force® 750 4x4i EPS Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$2.29

In stock

224

1

$1.54

In stock

14092

1

$19.53

In stock

14092A

1

$19.53

In stock

14092B

1

$12.04

In stock

14092C

1

$12.04

In stock

23007

LENS-COMP,HEAD LAMP

23007-0096

1

$45.84

In stock

23020

1

$3.69

In stock

35063

STAY,HEAD LAMP,LH

35063-0806

1

$37.71

In stock

35063A

STAY,HEAD LAMP,RH

35063-0807

1

$37.71

In stock

92009

SCREW,6X22,BLACK

92009-1256

1
Out of stock

92009A

SCREW,5X16,BLACK

92009-1654

1
Out of stock

92015

1

$1.20

In stock

92015A

NUT,5MM

92015-1627

1

$4.69

In stock

92015B

NUT,RUBBER,6MM

92015-1692

1

$5.84

In stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92027

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92039

RIVET

92039-1229

1

$0.80

In stock

92069

BULB,12V 35/35W

92069-0019

1

$12.44

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92081

SPRING,FOCUS ADJUST

92081-1896

1

$4.16

In stock

92150

BOLT,FLANGED,6X15

92150-1015

1

$1.10

In stock

92152

COLLAR

92152-0250

1

$2.42

In stock

92171

CLAMP,L=60

92171-0652

1

$2.15

In stock

92172

SCREW,TAPPING,5X10

92172-1061

1
Out of stock

92173

CLAMP

92173-0104

1

$2.92

In stock

92200

WASHER,6.5X14.5X1.5

92200-3775

1
Out of stock

92210

NUT

92210-1125

1
Out of stock
