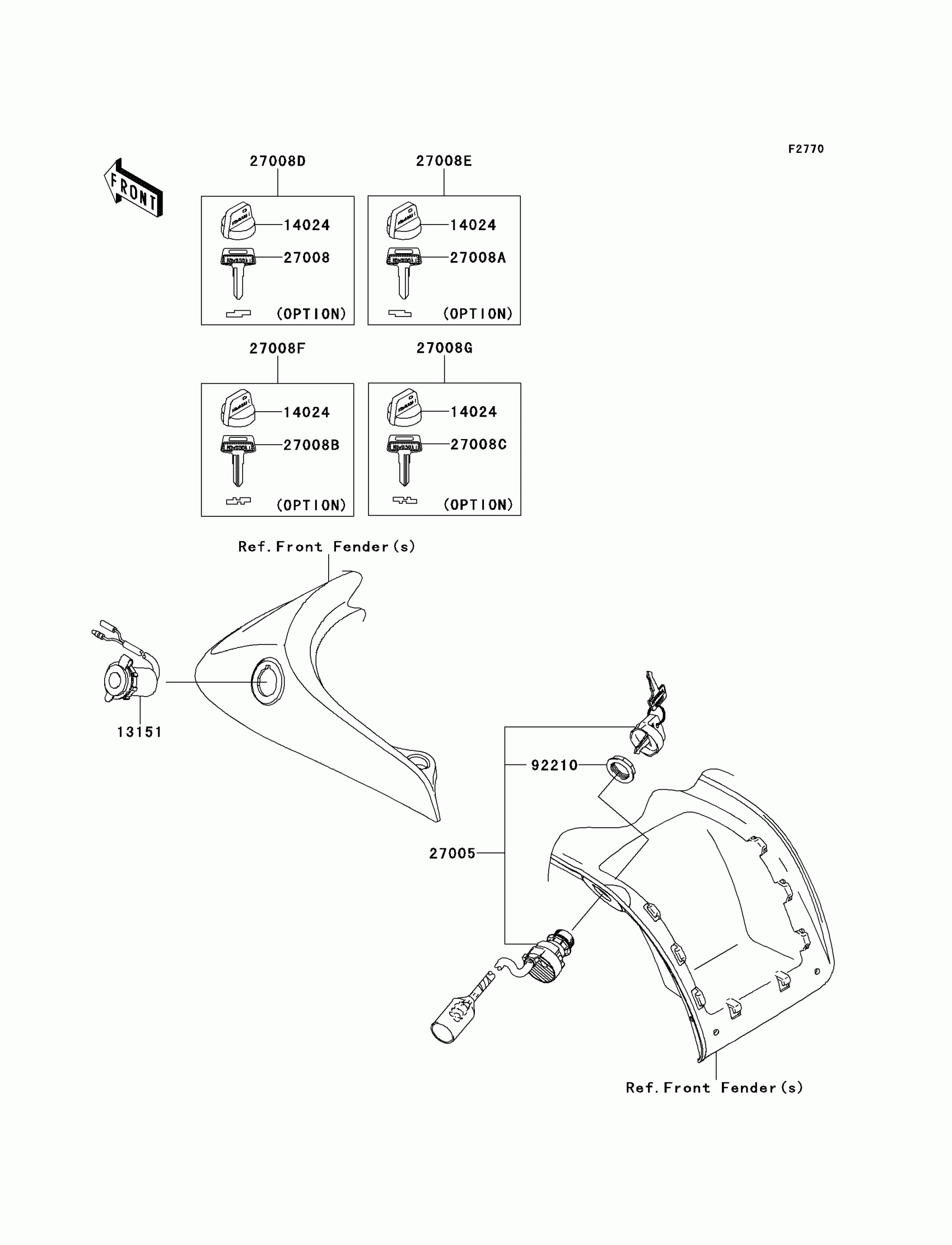

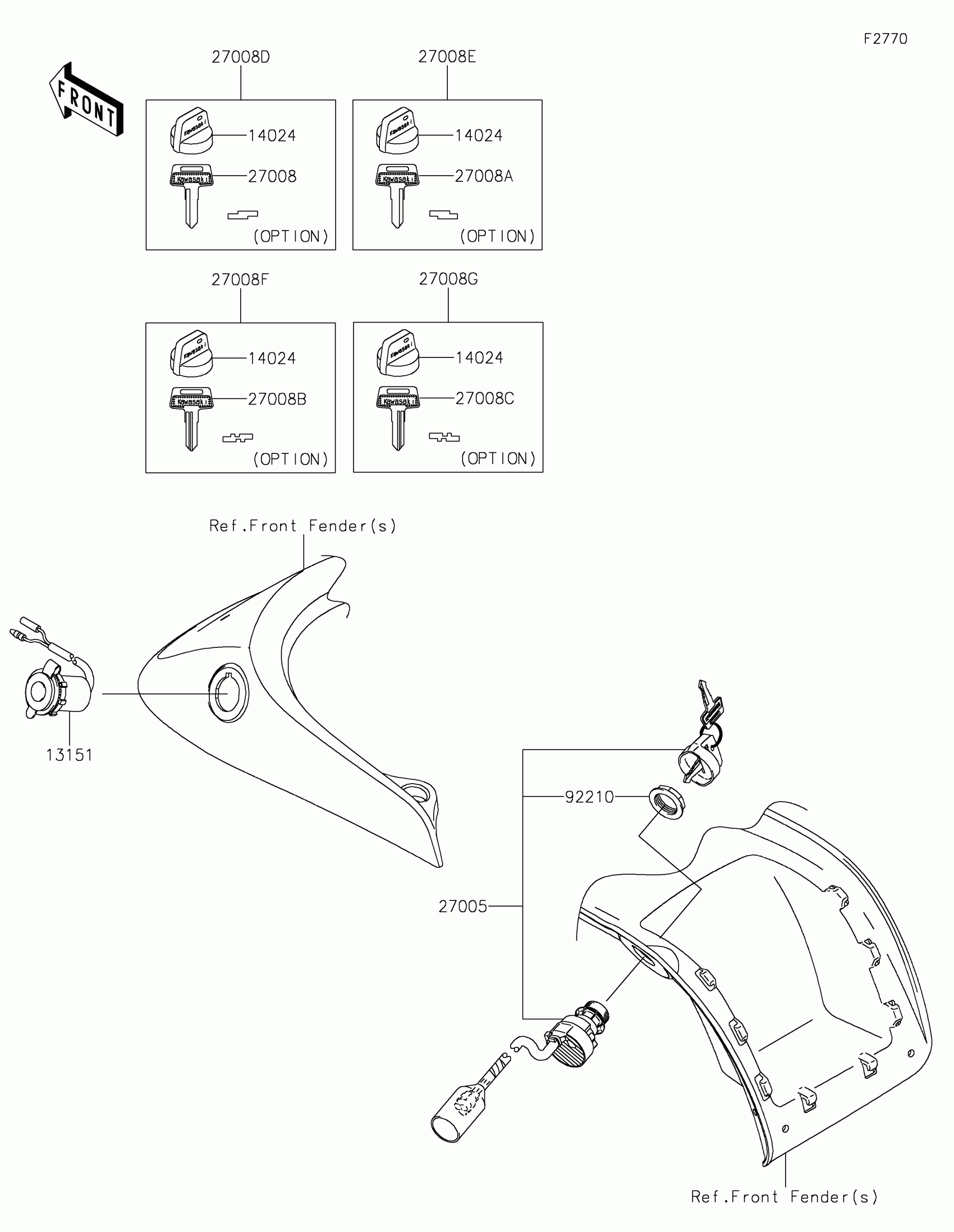

2013 Kawasaki Brute Force® 750 4x4i EPS Ignition Switch Diagram

← All diagrams

Find the part on the Ignition Switch diagram for your 2013 Kawasaki Brute Force® 750 4x4i EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Brute Force® 750 4x4i EPS Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13151

SWITCH-COMP,D.C. TERMINAL

13151-0557

1
Out of stock

14024

COVER,KEY

14024-1551

1

$4.98

In stock

27005

SWITCH-ASSY-IGNITION

27005-0019

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1041

1
Out of stock

27008A

KEY-LOCK,BLANK

27008-1042

1
Out of stock

27008B

KEY-LOCK,BLANK

27008-1043

1
Out of stock

27008C

KEY-LOCK,BLANK

27008-1044

1
Out of stock

27008D

KEY-LOCK,BLANK,W/COVER

27008-1132

1
Out of stock

27008E

KEY-LOCK,BLANK,W/COVER

27008-1133

1
Out of stock

27008F

KEY-LOCK,BLANK,W/COVER

27008-1134

1
Out of stock

27008G

KEY-LOCK,BLANK,W/COVER

27008-1135

1
Out of stock

92210

NUT,IGNITION SWITCH

92210-1109

1
Out of stock
