2013 Kawasaki Brute Force® 750 4x4i EPS Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2013 Kawasaki Brute Force® 750 4x4i EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

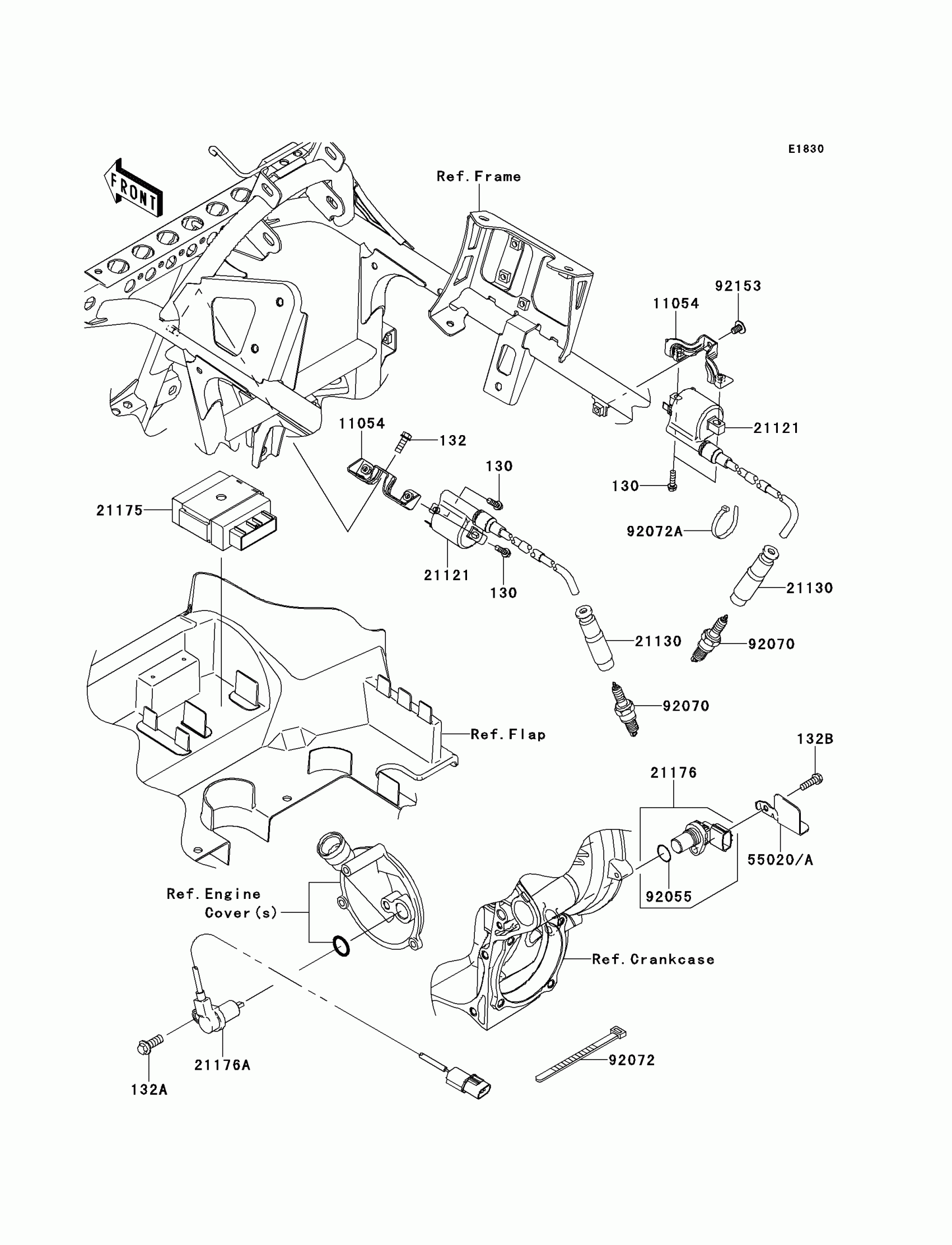

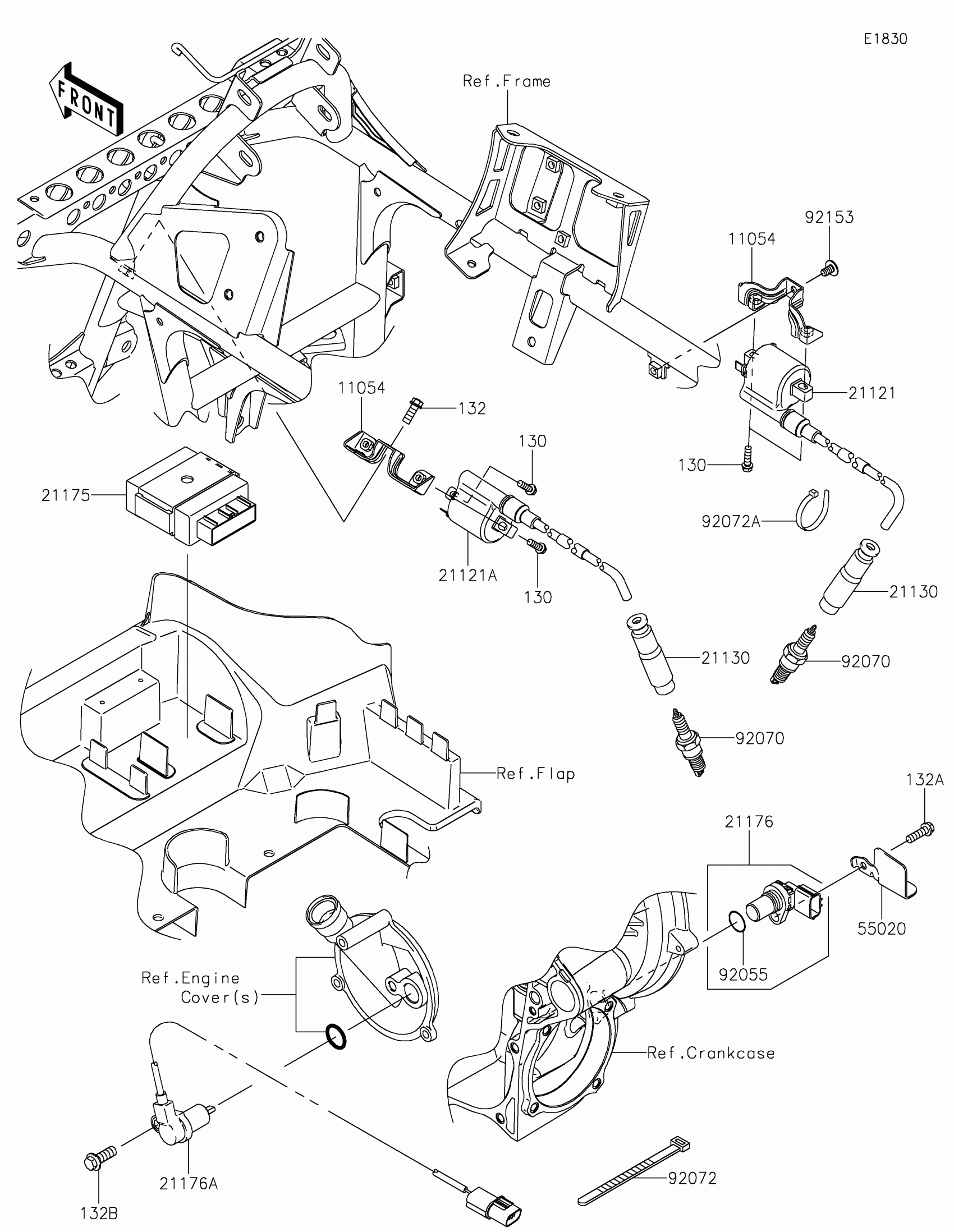

2013 Kawasaki Brute Force® 750 4x4i EPS Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X18

130BB0518

1

$1.71

In stock

132

1

$1.21

In stock

132A

1

$2.20

In stock

132B

1

$3.28

In stock

11054

BRACKET

11054-1328

1

$6.78

In stock

21121

COIL-IGNITION

21121-0039

1
Out of stock

21130

CAP-SPARK PLUG

21130-1071

1
Out of stock

21175

CONTROL UNIT-ELECTRONIC

21175-0216

1
Out of stock

21176

SENSOR,SPEED

21176-1104

1
Out of stock

21176A

SENSOR,REVERSE

21176-1109

1
Out of stock

55020A

GUARD

55020-0762

1

$4.42

In stock

92055

RING-O

92055-1718

1
Out of stock

92070

PLUG-SPARK,CR7E(NGK)

92070-1209

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,L=188

92072-1239

1
Out of stock

92153

BOLT,SOCKET,6X10

92153-1527

1
Out of stock
