2005 Kawasaki Brute Force 650 4x4 Taillight Diagram

← All diagrams

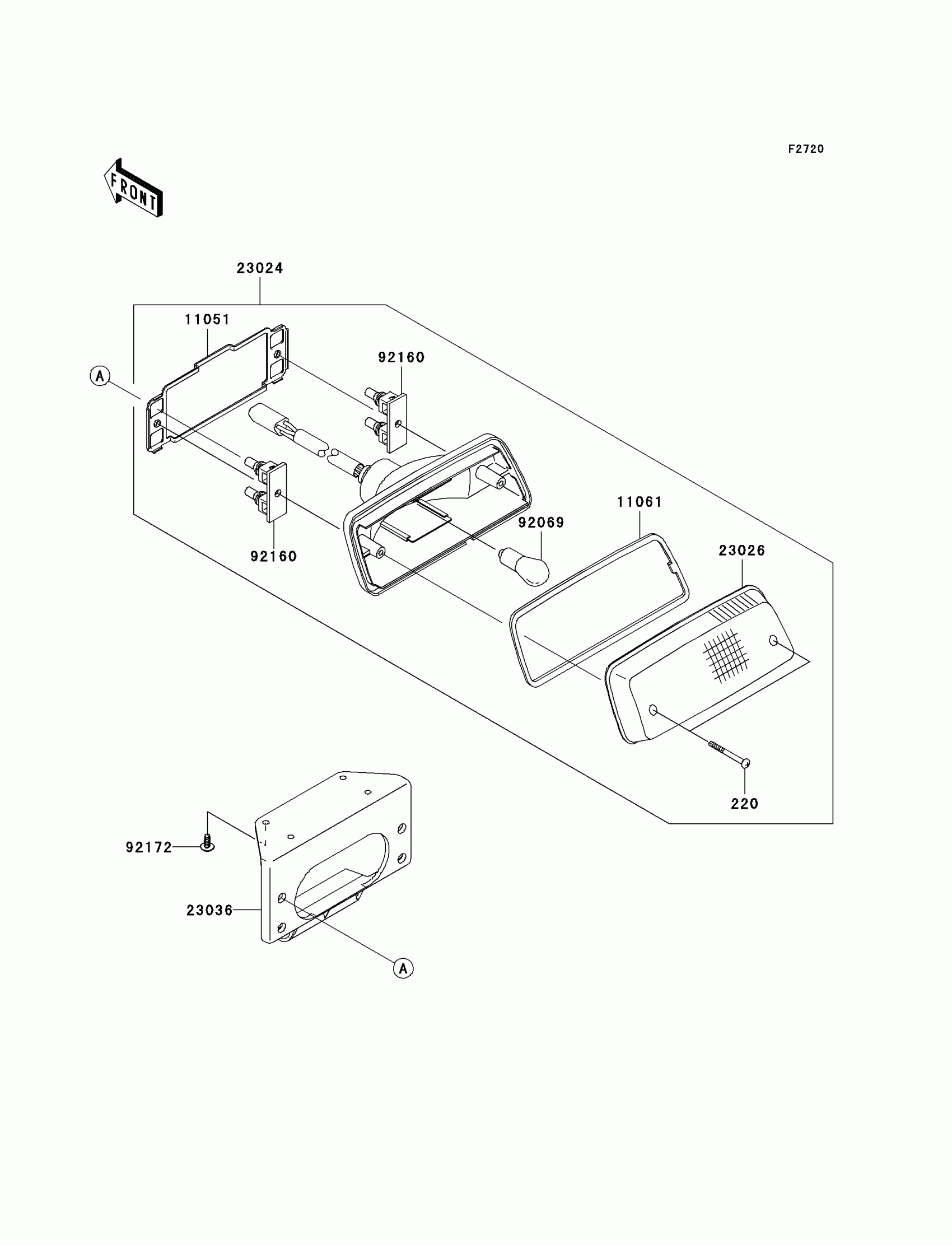

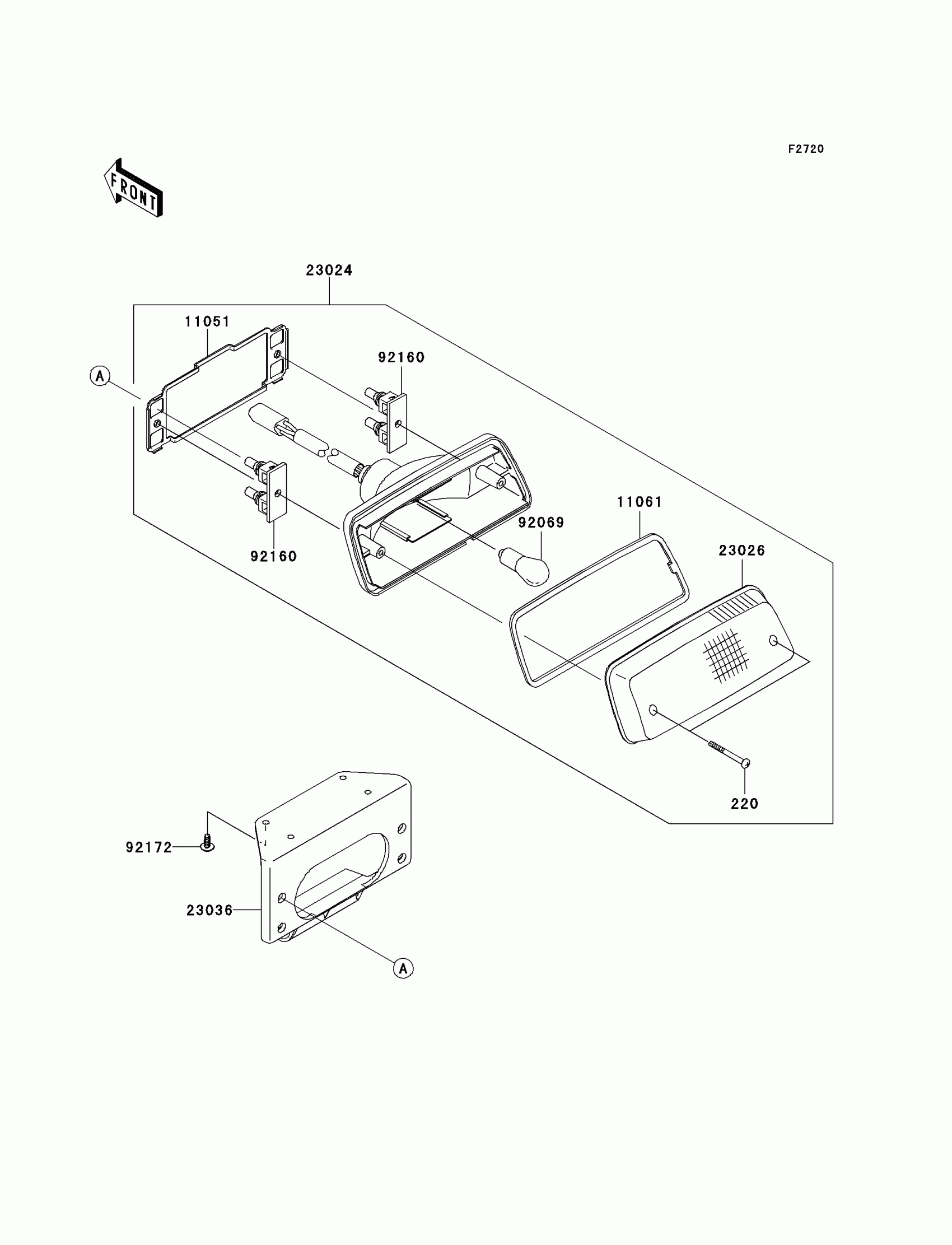

Find the part on the Taillight diagram for your 2005 Kawasaki Brute Force 650 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Brute Force 650 4x4 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS

220B0440

1
Out of stock

11051

BRACKET,TAIL LAMP

11051-1870

1
Out of stock

11061

GASKET,TAIL LAMP LENS

11061-0055

1
Out of stock

23024

LAMP-ASSY-TAIL

23024-1130

1
Out of stock

23026

LENS,TAIL LAMP

23026-1230

1
Out of stock

23036

BRACKET-TAIL LAMP

23036-0005

1
Out of stock

92069

BULB,12V 21/5W

92069-063

1
Out of stock

92160

DAMPER,TAIL LAMP

92160-1053

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-1061

1
Out of stock
