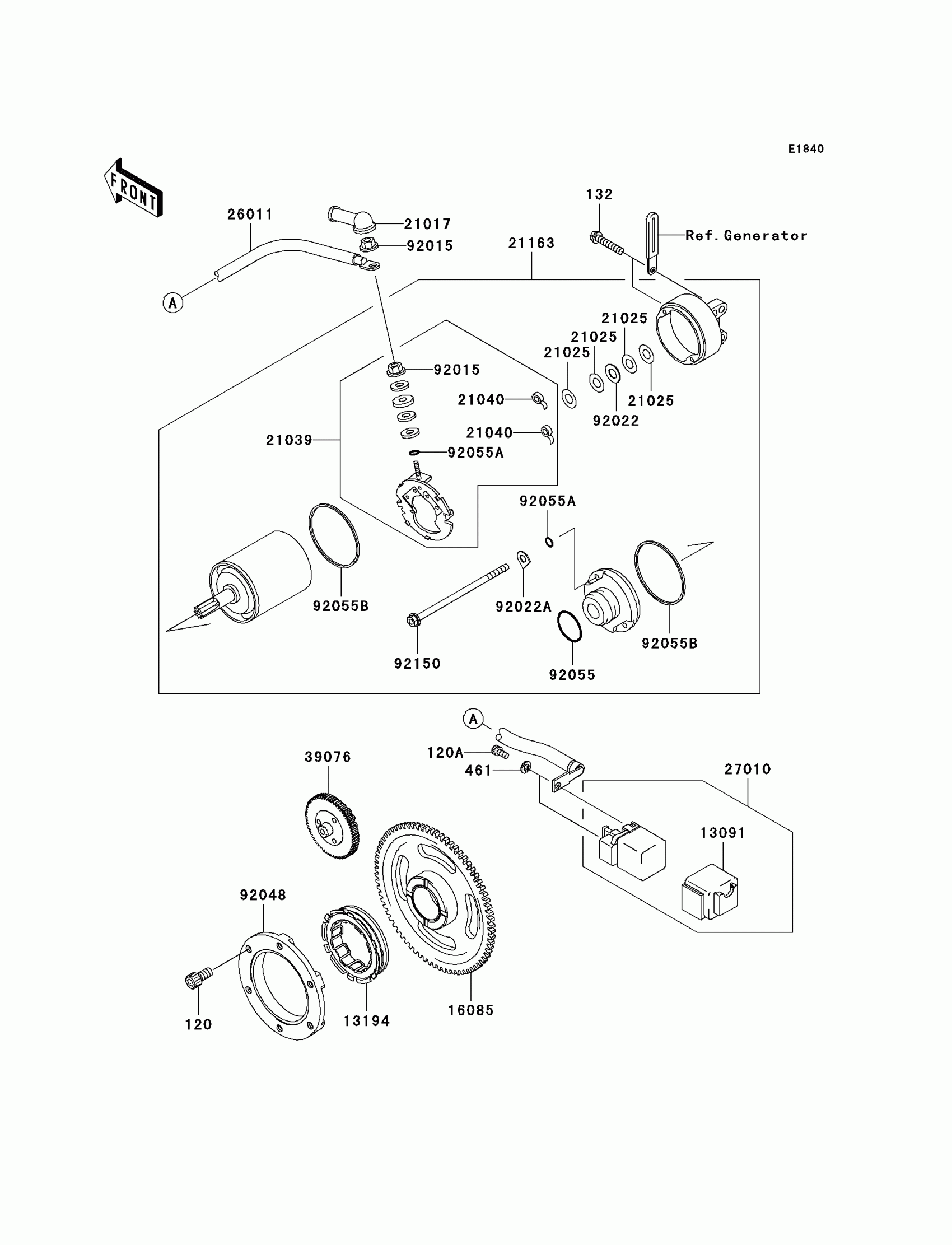

Find the part on the Starter Motor diagram for your 2005 Kawasaki Brute Force 650 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Brute Force 650 4x4 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X16

120P0816

1
Out of stock

120A

BOLT-SOCKET,5X10

120S0510

1
Out of stock

132

BOLT-FLANGED-SMALL,6X30

132Y0630

1
Out of stock

461

WASHER-SPRING,5MM,BLACK

461K0500

1
Out of stock

13091

HOLDER

13091-1992

1

$7.47

In stock

13194

CLUTCH-ONEWAY

13194-1094

1
Out of stock

16085

GEAR,STARTER

16085-1238

1
Out of stock

21017

GROMMET,STARTER TERMINAL

21017-017

1
Out of stock

21025

WASHER,9.1X18X0.2

21025-011

1
Out of stock

21039

BRUSH,CARBON

21039-1063

1
Out of stock

21040

SPRING-BRUSH

21040-1057

1
Out of stock

21163

STARTER-ELECTRIC

21163-1320

1
Out of stock

26011

WIRE-LEAD

26011-1814

1
Out of stock

27010

SWITCH,MAGNETIC

27010-1376

1
Out of stock

39076

LIMITER,STARTER

39076-0005

1

$231.23

In stock

92015

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92022

WASHER,9.1X18X0.8

92022-1132

1
Out of stock

92022A

WASHER,LOCK,T=2.0

92022-1458

1
Out of stock

92048

RACE,ONE WAY CLUTCH

92048-0002

1
Out of stock

92055

RING-O

92055-1276

1
Out of stock

92055A

RING-O,4.5X2.0

92055-1370

1
Out of stock

92055B

RING-O,STARTER MOTOR

92055-1381

1
Out of stock

92150

BOLT

92150-1243

1
Out of stock
