2005 Kawasaki Brute Force 650 4x4 Carrier Diagram

← All diagrams

Find the part on the Carrier diagram for your 2005 Kawasaki Brute Force 650 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

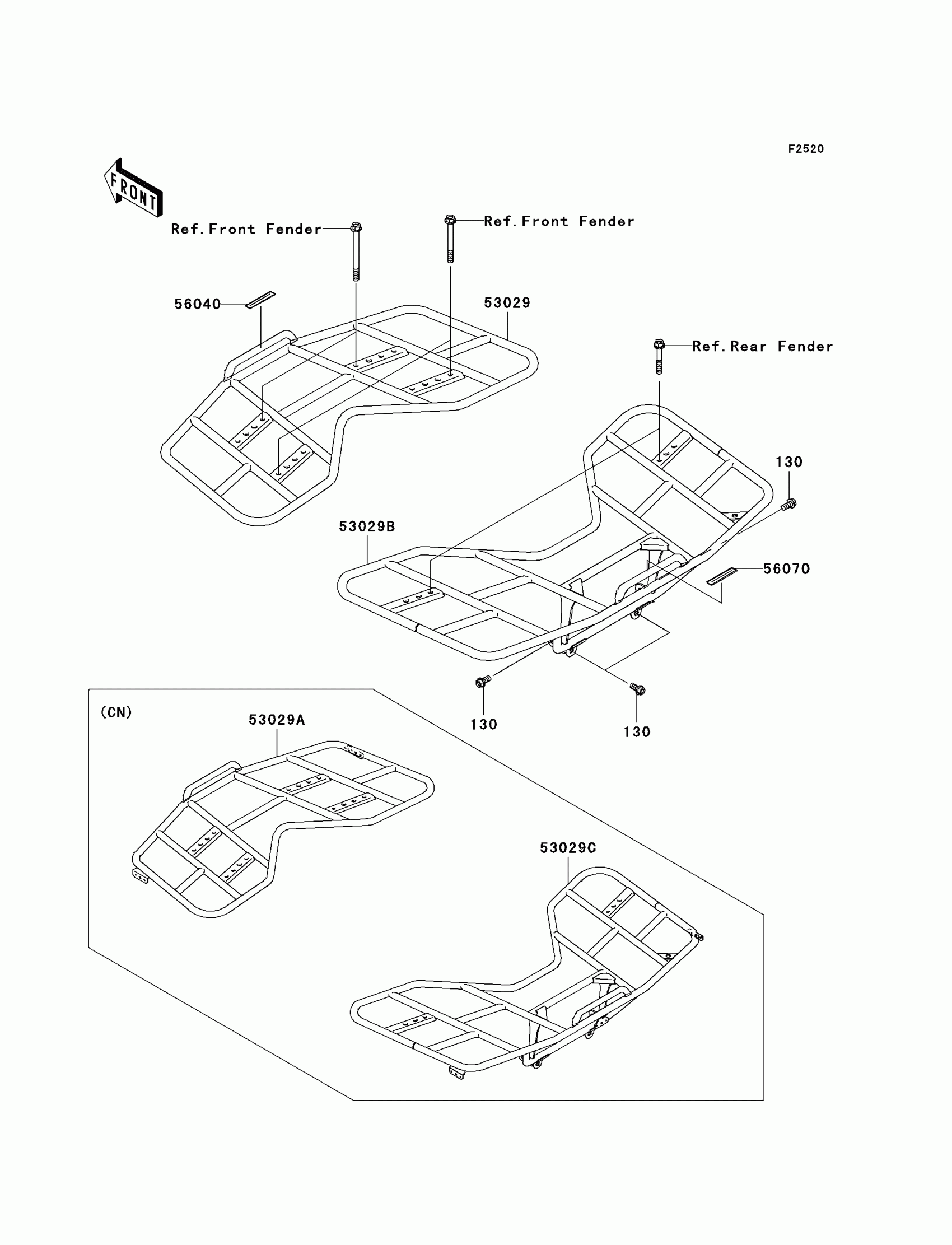

2005 Kawasaki Brute Force 650 4x4 Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,10X20

130S1020

1
Out of stock

56040

LABEL-WARNING,MAXIMUM LOAD

56040-1321

1
Out of stock

56070

LABEL-WARNING,MAXIMUM LOAD

56070-0041

1
Out of stock

53029

CARRIER,FR,M.GRAYSTONE

53029-0003-379

1

$171.92

In stock

53029A

CARRIER,FR,M.GRAYSTONE

53029-0007-379

1
Out of stock

53029B

CARRIER,RR,M.GRAYSTONE

53029-0016-379

1
Out of stock

53029C

CARRIER,RR,M.GRAYSTONE

53029-0025-379

1
Out of stock
