2005 Kawasaki Brute Force 650 4x4 Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2005 Kawasaki Brute Force 650 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

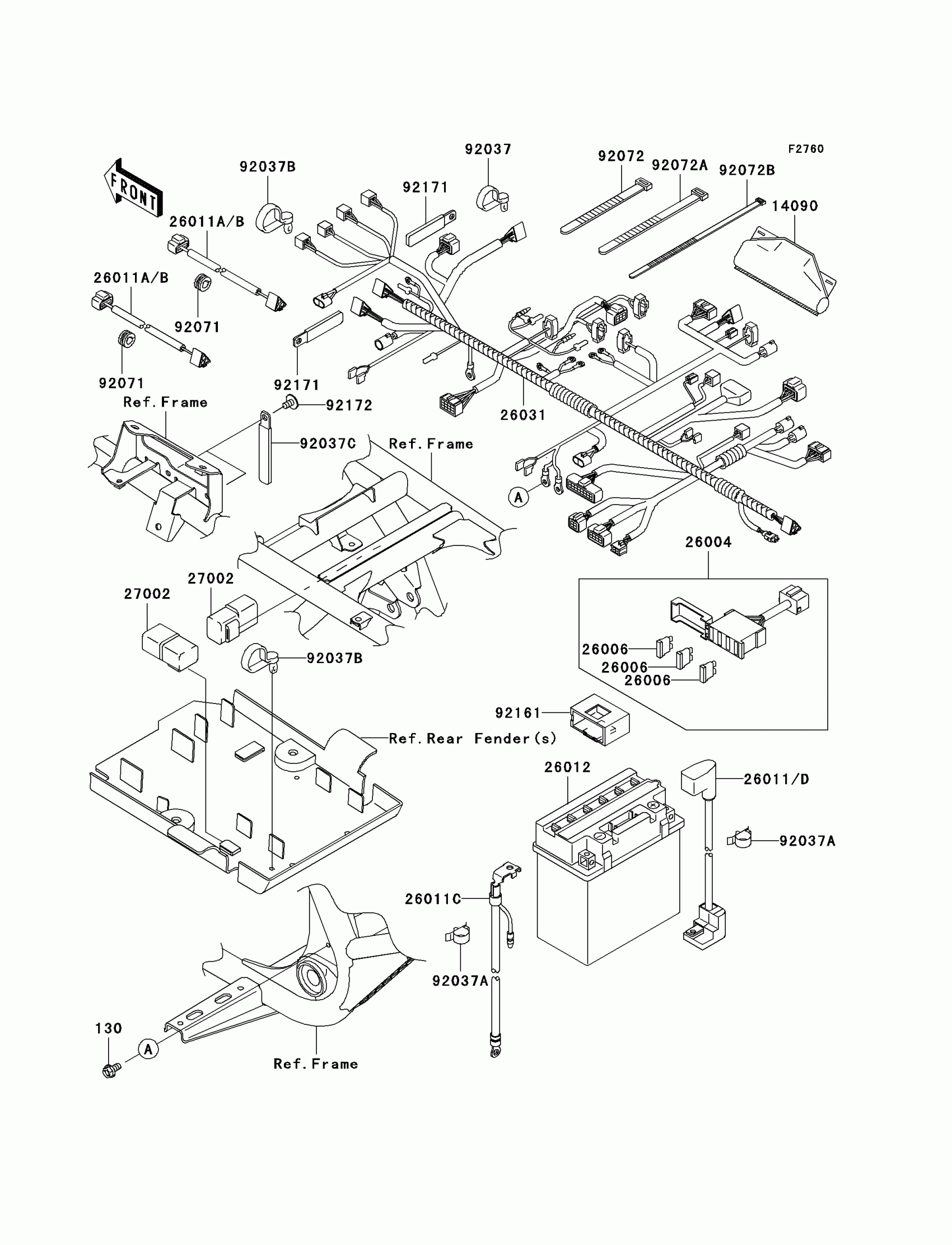

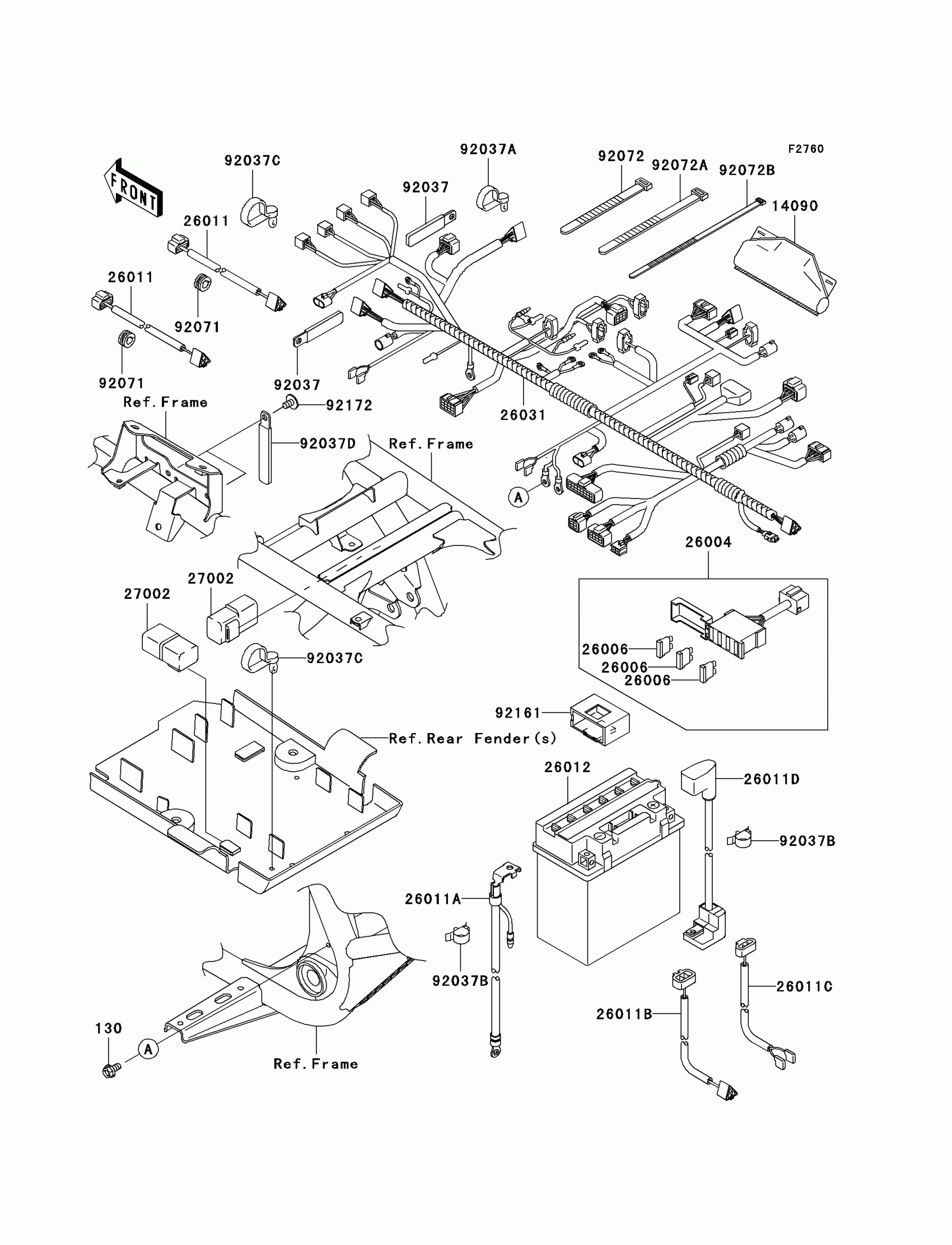

2005 Kawasaki Brute Force 650 4x4 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT

130B0612

1
Out of stock

14090

COVER,COUPLER

14090-1331

1

$8.31

In stock

26004

FUSE-ASSY

26004-0010

1
Out of stock

26006

FUSE,BLADE,10A,RED

26006-1007

1
Out of stock

26011

WIRE-LEAD,HEAD LAMP

26011-1741

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-1752

1
Out of stock

26011B

WIRE-LEAD,SPEED SENSOR

26011-1801

1
Out of stock

26011C

WIRE-LEAD,FRONT BRAKE

26011-1802

1
Out of stock

26011D

WIRE-LEAD,BATTERY(+)

26011-1827

1
Out of stock

26012

BATTERY,MF,KMX14-BS,12V 12AH

26012-1414

1
Out of stock

26031

HARNESS,MAIN

26031-0239

1
Out of stock

27002

RELAY-ASSY

27002-1086

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92037B

CLAMP,HARNESS

92037-1878

1
Out of stock

92037C

CLAMP,SPEED,L=80.5

92037-1903

1
Out of stock

92037D

CLAMP

92037-1993

1
Out of stock

92071

GROMMET

92071-1128

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,L=149

92072-031

1
Out of stock

92072B

BAND,L=188

92072-1239

1
Out of stock

92161

DAMPER,FUSE

92161-1136

1
Out of stock

92172

SCREW,6X10

92172-0005

1
Out of stock
