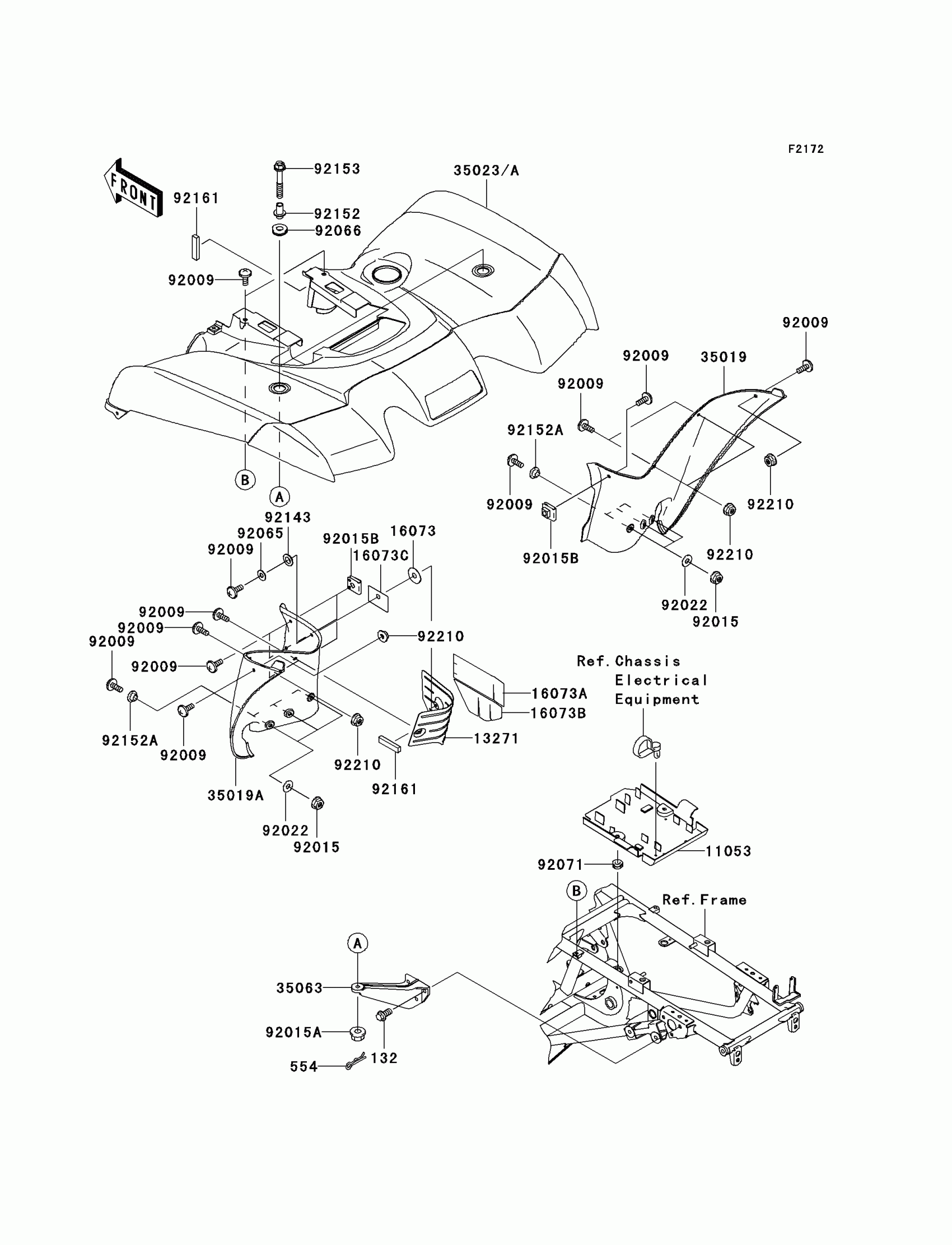

Kawasaki Brute Force 650 4x4 Rear Fender(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,8X18

132J0818

Unavailable

554

PIN-SNAP,8MM

554A0800

Unavailable

11053

BRACKET,ELECTRIC

11053-1308

$14.73

13271

PLATE,HEAT GUARD

13271-0411

$67.95

16073

INSULATOR

16073-0023

$1.66

16073A

INSULATOR

16073-0024

$10.42

16073B

INSULATOR

16073-0025

$8.03

16073C

INSULATOR

16073-0026

$3.86

35019

FLAP,RR,RH,F.BLACK

35019-0033-6Z

$36.15

35019A

FLAP,RR,LH,F.BLACK

35019-0041-6Z

$36.15

35023

FENDER-REAR,A.RED

35023-0056-260

$245.61

35023A

FENDER-REAR,W.GREEN

35023-0056-286

$233.77

35063

STAY,RR FENDER

35063-1100

$149.66

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT,LOCK,FLANGED,8MM

92015-1397

$3.29

92015B

NUT,CLAMP,6MM

92015-1678

$4.18

92022

WASHER,6.5X16X1.0

92022-1093

$1.49

92065

GASKET,6X14X0.8

92065-092

$3.32

92066

PLUG

92066-1438

$3.91

92071

GROMMET

92071-1131

$5.93

92143

COLLAR

92143-1087

$2.98

92152

COLLAR,L=38.5

92152-0098

$11.20

92152A

COLLAR

92152-0224

$4.27

92153

BOLT,FLANGED,8X68

92153-0326

$5.61

92161

DAMPER

92161-0272

$3.37

92210

NUT,6MM

92210-1368

$1.80
