2005 Kawasaki Brute Force 650 4x4 Converter Cover Diagram

← All diagrams

Find the part on the Converter Cover diagram for your 2005 Kawasaki Brute Force 650 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

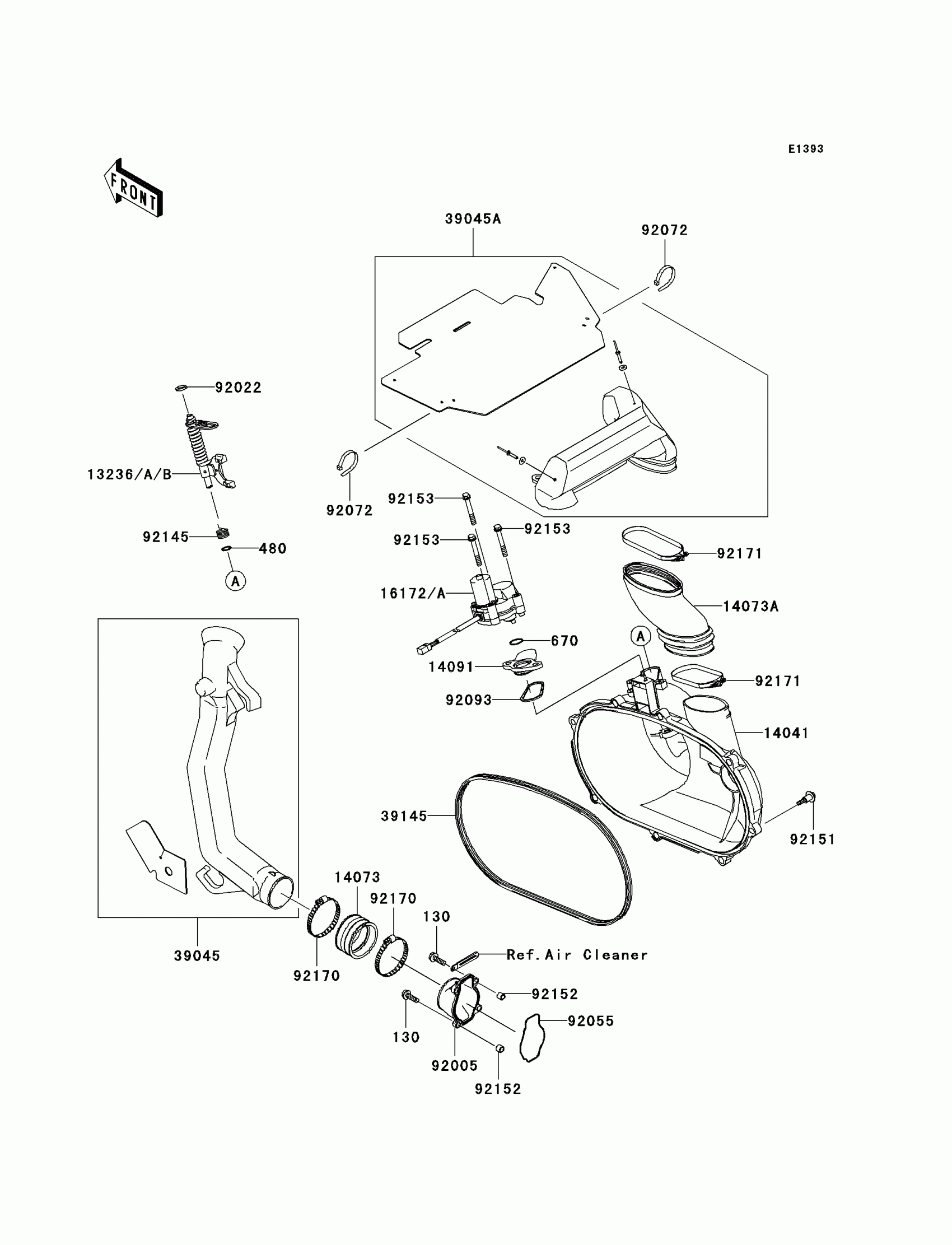

2005 Kawasaki Brute Force 650 4x4 Converter Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130Z0620

1
Out of stock

480

1

$0.66

In stock

670

O RING

670D3022

1

$2.29

In stock

13236

LEVER-COMP,YELLOW

13236-0046

—

$134.44

In stock

13236A

LEVER-COMP,GREEN

13236-0047

—

$134.44

In stock

13236B

1

$134.44

In stock

14041

COVER-COMP

14041-1158

1
Out of stock

14073

DUCT,JOINT

14073-1775

1

$3.46

In stock

14073A

DUCT,EXHAUST

14073-1792

1

$16.22

In stock

14091

COVER

14091-1421

1
Out of stock

16172

ACTUATOR

16172-0006

1
Out of stock

39045

1

$30.55

In stock

39045A

1

$51.32

In stock

39145

TRIM-SEAL

39145-1135

1
Out of stock

92005

FITTING

92005-1387

1
Out of stock

92022

WASHER,10.2X16X1

92022-1829

1
Out of stock

92055

RING-O

92055-1630

1

$8.32

In stock

92072

BAND,L=188

92072-1239

1

$1.51

In stock

92093

SEAL

92093-1548

1

$9.73

In stock

92145

SPRING

92145-1567

1

$2.27

In stock

92151

BOLT,FLANGED,6X30

92151-1686

1

$7.48

In stock

92152

COLLAR

92152-1332

1

$3.33

In stock

92153

BOLT,6X47

92153-0678

1
Out of stock

92170

CLAMP

92170-1764

1

$9.09

In stock

92171

CLAMP

92171-1336

1

$10.72

In stock
