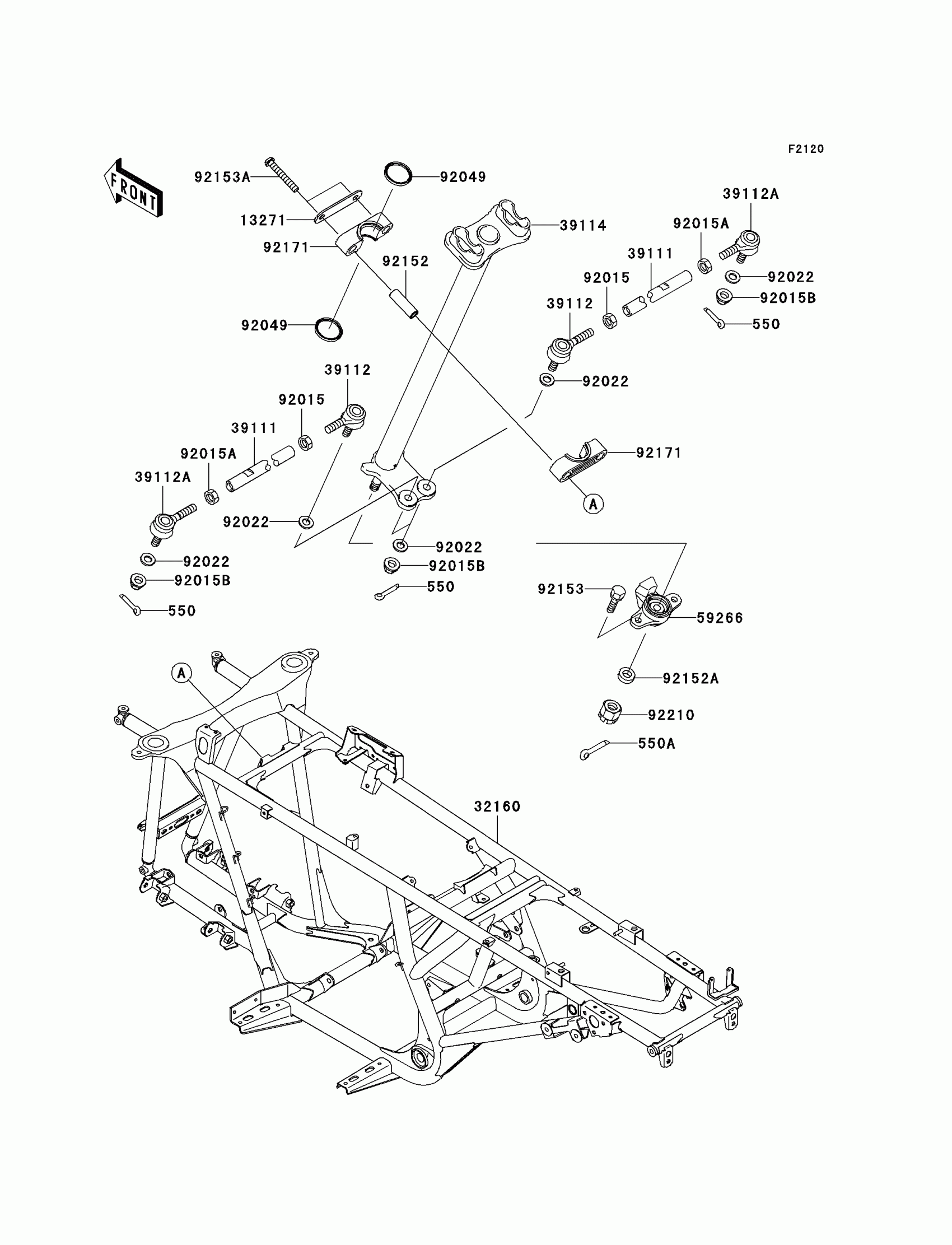

Kawasaki Brute Force 650 4x4 Frame Diagram

Description

Price

550

PIN COTTER 2.0X15

550D2015

Unavailable

550A

PIN-COTTER,3.0X25

550D3025

Unavailable

13271

PLATE,STEERING

13271-0419

$1.71

32160

FRAME-COMP

32160-0002

$1,008.29

39111

ROD-TIE

39111-1090

$32.98

39112

RODEND-TIE

39112-1083

$92.31

39112A

RODEND-TIE

39112-1085

$50.81

39114

SHAFT-COMP-STRG

39114-0007

$234.66

59266

JOINT-BALL

59266-1125

$139.63

92015

NUT,LOCK,10MM

92015-1460

$5.66

92015A

NUT,LOCK,10MM

92015-1494

$5.42

92015B

NUT,LOCK,FLANGED,10MM

92015-1717

$7.54

92022

WASHER,10.2X20X1.5

92022-3742

$3.19

92049

SEAL-OIL,SR31.8X37.5X3.8LR

92049-7501

$3.81

92152

COLLAR,9.1X13.95X44

92152-0230

$29.37

92152A

COLLAR,12X21.3X7

92152-1351

$12.24

92153

BOLT,8X30

92153-1065

$2.37

92153A

BOLT,SOCKET,8X55

92153-1324

$7.78

92171

CLAMP,STEERING

92171-0399

$8.03

92210

NUT,12MM

92210-7501

$2.84
