2005 Kawasaki Brute Force 650 4x4 Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 2005 Kawasaki Brute Force 650 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

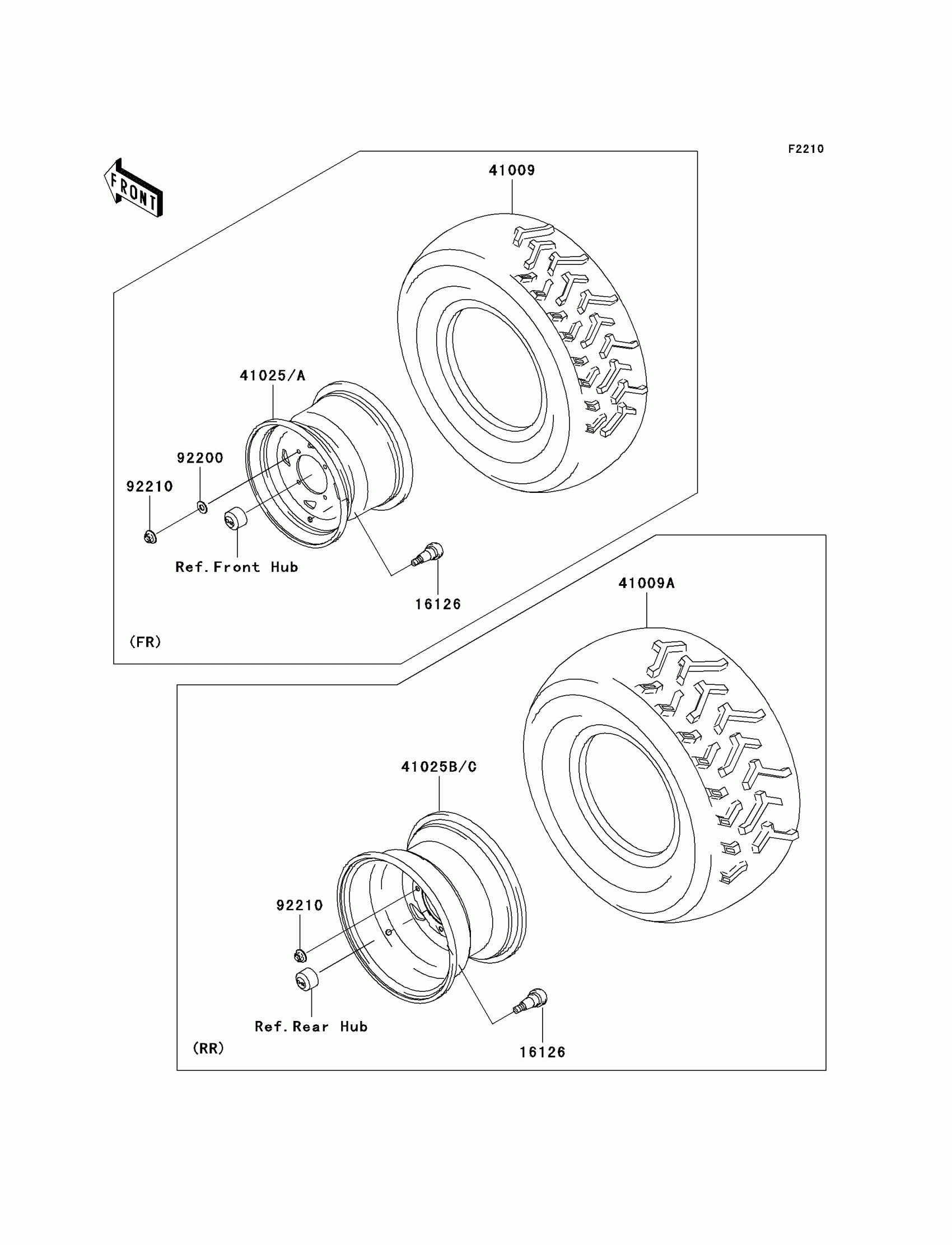

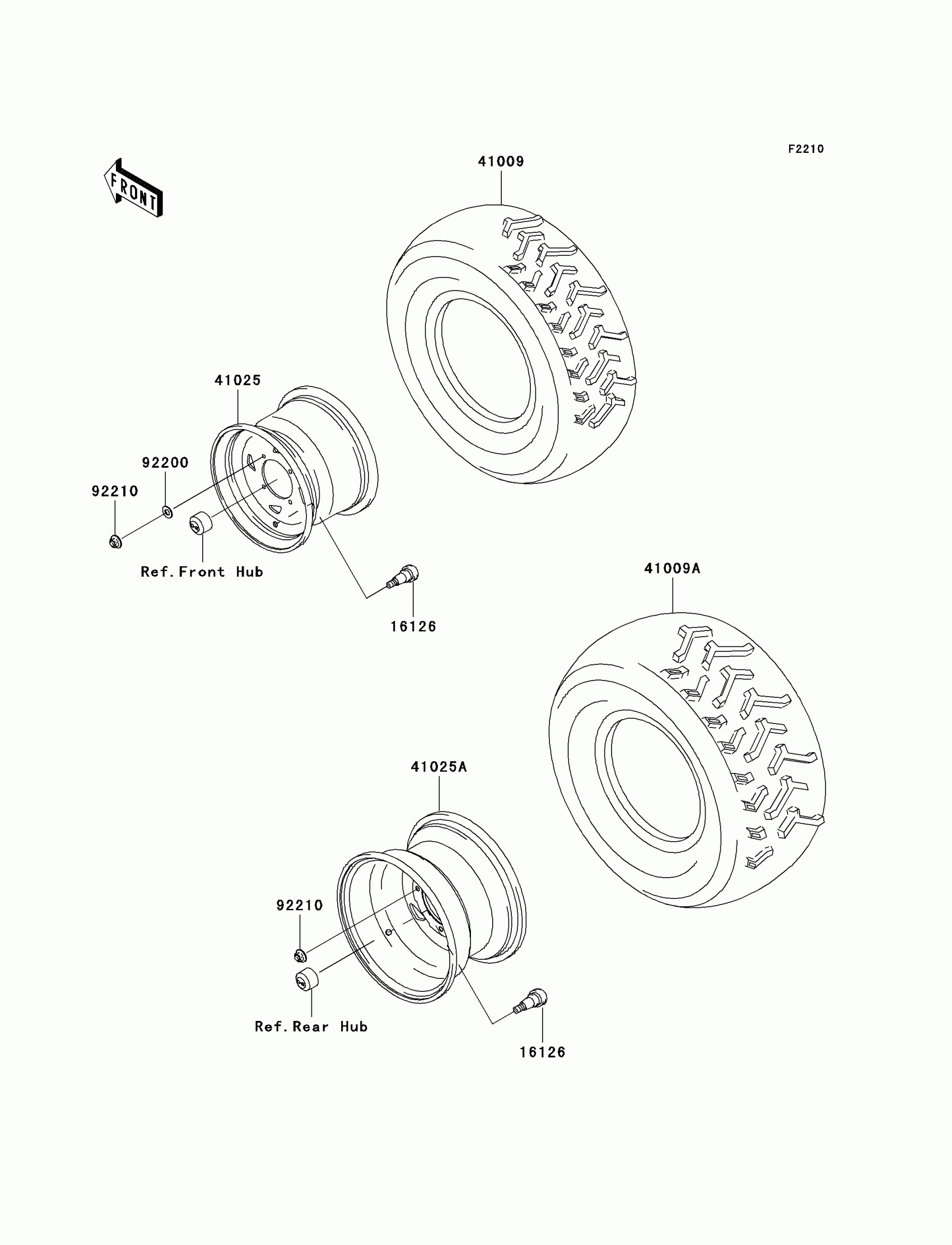

2005 Kawasaki Brute Force 650 4x4 Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16126

VALVE

16126-4001

1
Out of stock

41009

1

$135.68

In stock

41009A

1

$173.21

In stock

41025

RIM,FR,12X6.0,M.GRAYSTONE

41025-1375-379

1
Out of stock

41025A

RIM,RR,12X7.5AT,M.GRAYSTONE

41025-1426-379

1
Out of stock

92200

WASHER,10.5X25X1.6

92200-1595

1
Out of stock

92210

NUT,FLANGED,10MM

92210-1325

1
Out of stock
