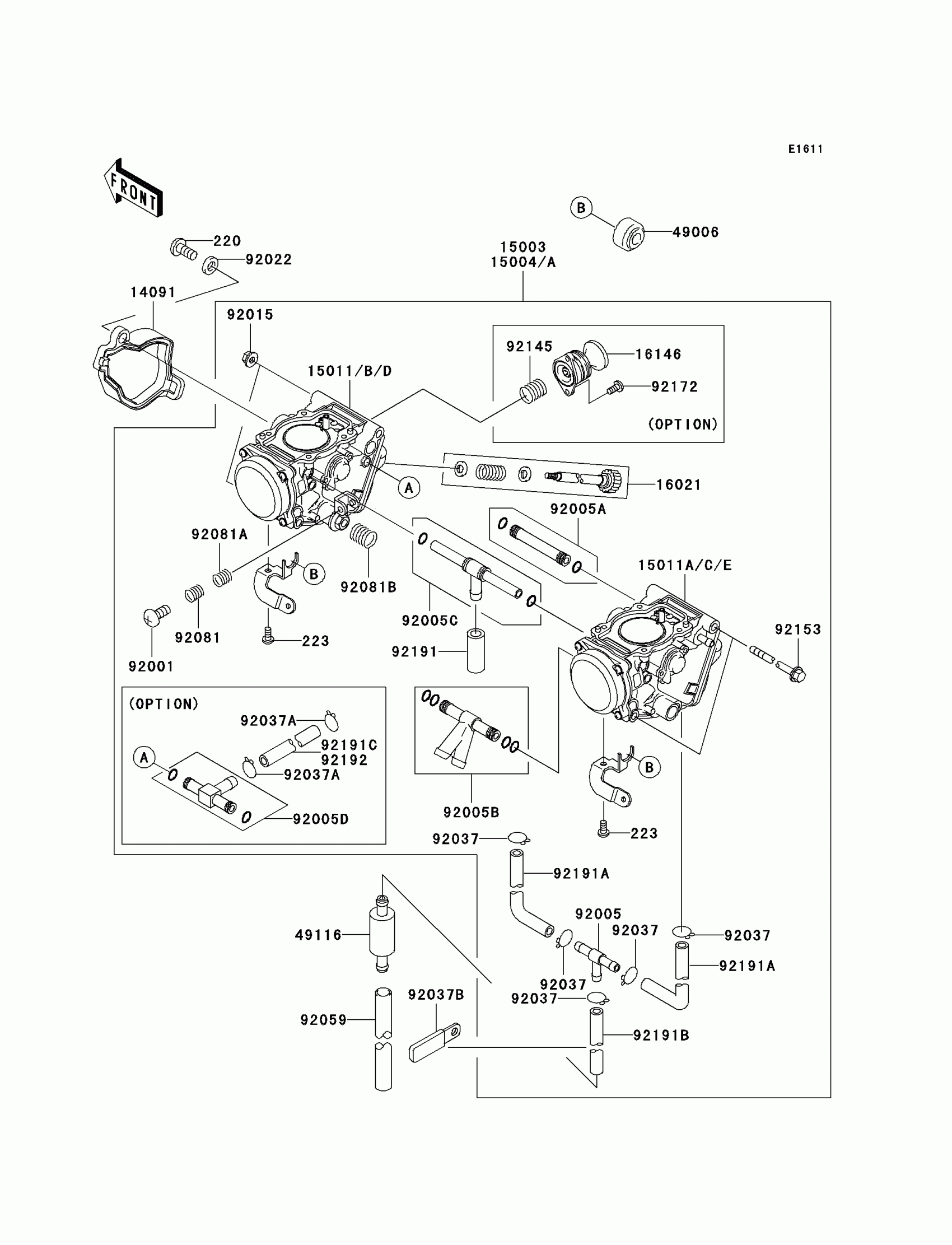

Find the part on the Carburetor diagram for your 2010 Kawasaki Brute Force® 650 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Brute Force® 650 4x4 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92037A

CLAMP,TUBE

92037-1201

1
Out of stock

14091

COVER,THROTTLE CABLE

14091-1196

1
Out of stock

15003

CARBURETOR-ASSY

15003-0095

1
Out of stock

15004A

CARBURETOR-ASSY,CVKR32

15004-0037

1
Out of stock

15011B

CARBURETOR,FR

15011-0100

1
Out of stock

15011C

CARBURETOR,RR

15011-0101

1
Out of stock

15011D

CARBURETOR,FR

15011-0116

1
Out of stock

15011E

CARBURETOR,RR

15011-0117

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1238

1
Out of stock

16146

COVER-ASSY,PRIMING

16146-1225

1
Out of stock

49006

BOOT,STARTER CABLE

49006-1353

1
Out of stock

49116

VALVE-ASSY

49116-1126

1
Out of stock

92001

BOLT,THROTTLE ADJUST

92001-1998

1
Out of stock

92005

FITTING,FUEL,T-TYPE

92005-1112

1
Out of stock

92005A

FITTING

92005-1375

1
Out of stock

92005B

FITTING

92005-1376

1
Out of stock

92005C

FITTING

92005-1385

1
Out of stock

220

SCREW-PAN-CROS,4X8

220AA0408

1
Out of stock

223

SCREW-PAN-WS-CROS,4X8

223AA0408

1
Out of stock

92005D

FITTING

92005-1393

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92022

WASHER,5.2X13X1

92022-1380

1
Out of stock

92037

CLAMP,TUBE

92037-1201

1
Out of stock

92037B

CLAMP,L=45

92037-1539

1
Out of stock

92059

TUBE,7X10X100

92059-1736

1
Out of stock

92081

SPRING

92081-1620

1
Out of stock

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

1
Out of stock

92081B

SPRING,THROTTLE ADJUST CNT

92081-1622

1
Out of stock

92145

SPRING,PRIMING

92145-1451

1
Out of stock

92153

BOLT,5X143

92153-1068

1
Out of stock

92172

SCREW

92172-0230

1
Out of stock

92191

TUBE,7X11X25

92191-1672

1
Out of stock

92191A

TUBE,4.5X8X65

92191-1673

1
Out of stock

92191B

TUBE,4.5X8X420

92191-1674

1
Out of stock

92192

TUBE,4.5X8.5X3.5

92192-0605

1
Out of stock
