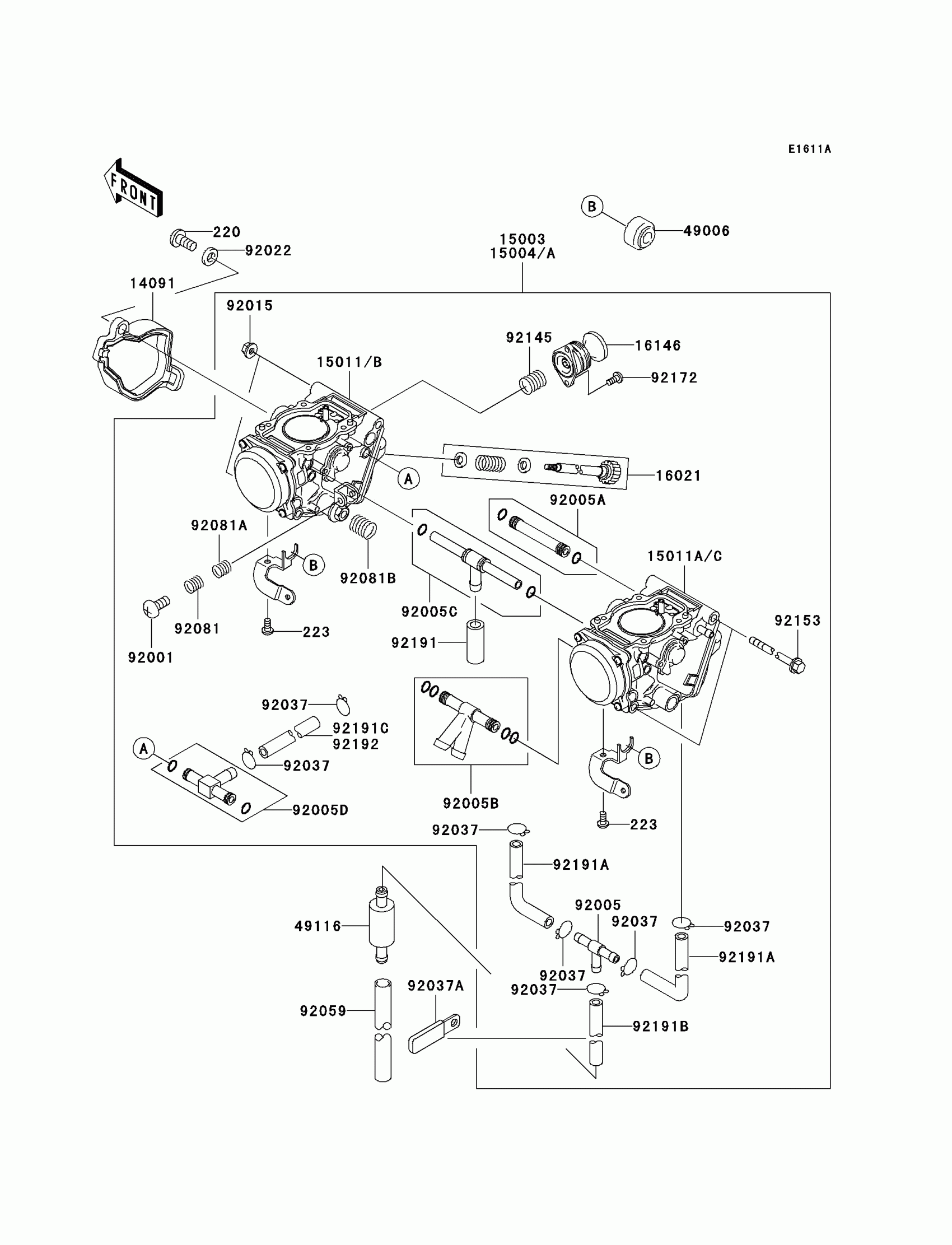

Find the part on the Carburetor diagram for your 2010 Kawasaki Brute Force® 650 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Brute Force® 650 4x4 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

1

$7.76

In stock

15004A

1

$1,396.39

In stock

15011B

CARBURETOR,FR

15011-0116

1

$839.49

In stock

15011C

CARBURETOR,RR

15011-0117

1

$839.49

In stock

16021

SCREW-THROTTLE STOP

16021-1238

1

$70.48

In stock

16146

COVER-ASSY,PRIMING

16146-1225

1

$52.90

In stock

49006

BOOT,STARTER CABLE

49006-1353

1

$3.58

In stock

49116

VALVE-ASSY

49116-1126

1

$19.26

In stock

92001

1

$15.88

In stock

92005

FITTING,FUEL,T-TYPE

92005-1112

1
Out of stock

92005A

FITTING

92005-1375

1
Out of stock

92005B

FITTING

92005-1376

1
Out of stock

92005C

FITTING

92005-1385

1
Out of stock

92005D

FITTING

92005-1393

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92022

WASHER,5.2X13X1

92022-1380

1

$3.43

In stock

92037

CLAMP,TUBE

92037-1201

1

$3.65

In stock

92037A

CLAMP,L=45

92037-1539

1

$4.42

In stock

220

SCREW-PAN-CROS,4X8

220AA0408

1

$0.73

In stock

223

1

$1.17

In stock

92059

TUBE,7X10X100

92059-1736

1

$3.54

In stock

92081

SPRING

92081-1620

1

$3.94

In stock

92081A

1

$4.12

In stock

92081B

1

$10.27

In stock

92145

SPRING,PRIMING

92145-1451

1

$7.76

In stock

92153

BOLT,5X143

92153-1068

1
Out of stock

92172

SCREW

92172-0230

1

$5.17

In stock

92191

TUBE,7X11X25

92191-1672

1
Out of stock

92191A

TUBE,4.5X8X65

92191-1673

1
Out of stock

92191B

TUBE,4.5X8X420

92191-1674

1
Out of stock

92192

TUBE,4.5X8.5X3.5

92192-0605

1
Out of stock
