2005 Kawasaki Brute Force 650 4x4 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2005 Kawasaki Brute Force 650 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

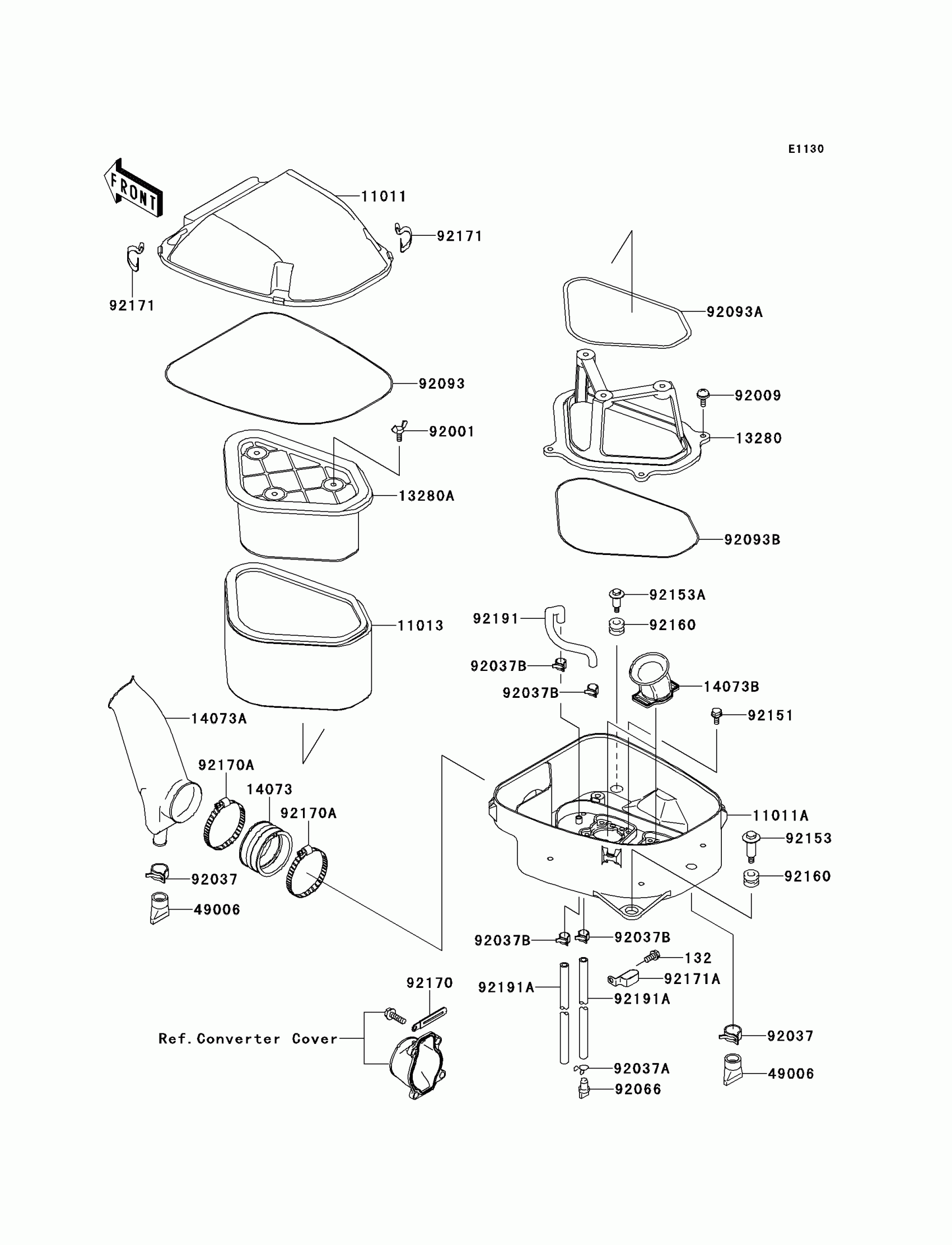

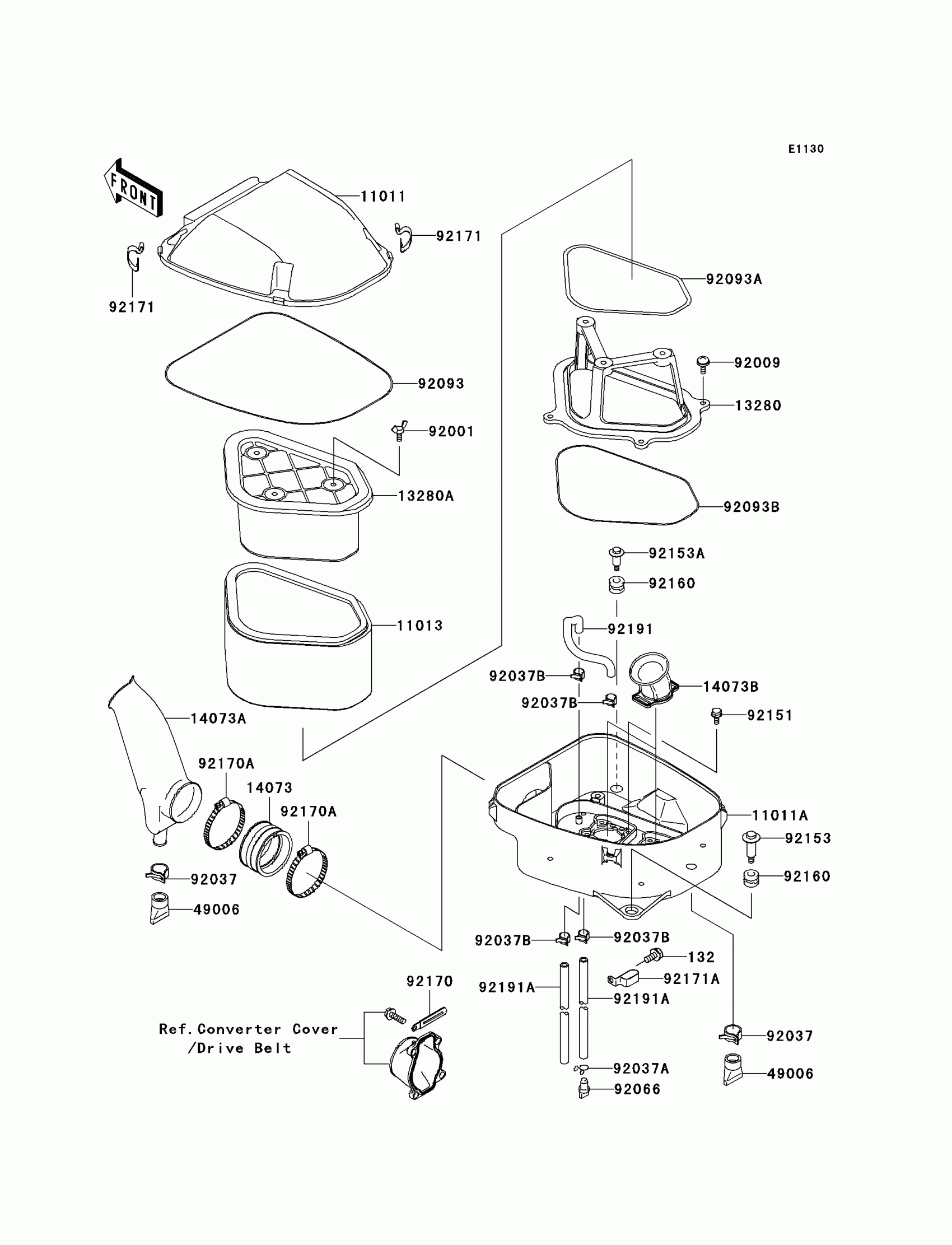

2005 Kawasaki Brute Force 650 4x4 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X12

132Y0612

1
Out of stock

11011

CASE-AIR FILTER,UPP

11011-0046

1
Out of stock

11011A

CASE-AIR FILTER,LWR

11011-0047

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-0001

1
Out of stock

13280

HOLDER

13280-0111

1

$16.63

In stock

13280A

HOLDER

13280-1272

1

$36.46

In stock

14073

DUCT,JOINT

14073-1775

1

$3.46

In stock

14073A

DUCT,INTAKE

14073-1778

1

$22.14

In stock

14073B

DUCT,AIR FANNEL

14073-1830

1

$8.01

In stock

49006

BOOT

49006-1292

1
Out of stock

92001

BOLT,WING,6X15

92001-1703

1
Out of stock

92009

SCREW,6X16

92009-1621

1
Out of stock

92037

CLAMP,HOSE CLIP

92037-1460

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1
Out of stock

92037B

CLAMP,TUBE

92037-1505

1
Out of stock

92066

PLUG,DRAIN

92066-1211

1
Out of stock

92093

SEAL,AIR FILTER CASE

92093-1522

1
Out of stock

92093A

SEAL,HOLDER-HOLDER

92093-1569

1
Out of stock

92093B

SEAL

92093-1570

1
Out of stock

92151

BOLT,FLANGED,5X12

92151-1305

1
Out of stock

92153

BOLT,AIR FILTER,LH

92153-1051

1
Out of stock

92153A

BOLT,FLANGED,6X28.7

92153-1052

1
Out of stock

92160

DAMPER

92160-1594

1
Out of stock

92170

CLAMP

92170-1514

1

$3.43

In stock

92170A

CLAMP

92170-1764

1

$9.09

In stock

92171

CLAMP,AIR FILTER CASE

92171-1394

1
Out of stock

92171A

CLAMP,AIR VENT

92171-1522

1
Out of stock

92191

TUBE,7X11X210

92191-1494

1
Out of stock

92191A

TUBE,7X11X470

92191-1531

1
Out of stock
