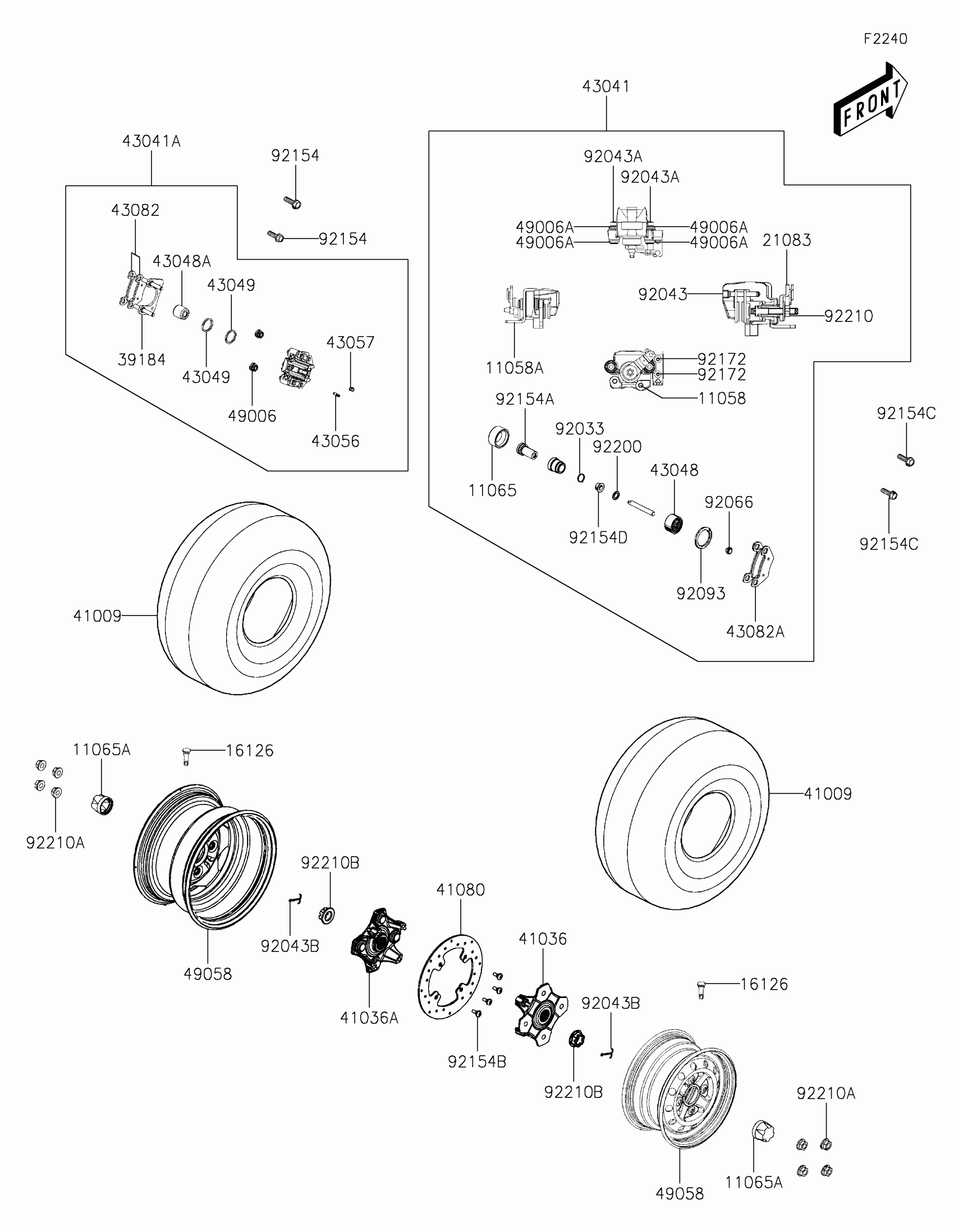

Kawasaki Brute Force 450 Rear Hub Diagram

#

Description
Price

11058

BRACKET,RR CALIPER

11058-Y004

$19.10

11058A

BRACKET,CABLE

11058-Y005

$37.00

11065

CAP,RR CALIPER

11065-Y050

$1.59

11065A

CAP,WHEEL

11065-Y051

$4.55

16126

VALVE,RIM

16126-Y001

$5.69

21083

ARM,BRAKE

21083-Y009

$21.03

39184

BRACKET-ASSY,CALIPER,FR,LH

39184-Y004

$78.29

41009

TIRE,RR,AT24X10-12

41009-Y010

$241.41

41036

HUB-ASSY,RR

41036-Y006

$58.43

41036A

HUB-ASSY,FR

41036-Y007

$98.04

41080

DISC,FR

41080-Y010

$50.78

43041

CALIPER-ASSY,RR,RH,SILVER

43041-Y014-934

Unavailable

43041A

CALIPER-ASSY,RR,LH,SILVER

43041-Y015-934

Unavailable

43048

PISTON-CALIPER,DIA=25.4

43048-Y007

$5.81

43048A

PISTON-CALIPER,DIA=32.03

43048-Y008

$19.27

43049

PACKING

43049-Y007

$12.41

43056

BREATHER-BRAKE

43056-0010

$3.64

43057

CAP-BREATHER

43057-Y001

$1.63

43082

PAD-ASSY-BRAKE,RR,LH

43082-Y012

$61.05

43082A

PAD-ASSY-BRAKE,RR,RH

43082-Y013

$25.03

49006

BOOT,CALIPER

49006-Y010

$3.29

49006A

BOOT,CALIPER

49006-Y021

$2.10

49058

WHEEL,RR

49058-Y006

$326.31

92033

RING-SNAP

92033-Y053

$2.59

92043

PIN,HANGER

92043-Y051

$2.46

92043A

PIN

92043-Y052

$5.51

92043B

PIN,COTTER,3X40

92043-Y055

$3.71

92066

PLUG

92066-Y026

$1.47

92093

SEAL,DUST

92093-Y051

$1.47

92154

BOLT,FLANGE,8X20

92154-Y053

$4.47

92154A

BOLT

92154-Y234

$7.54

92154B

BOLT,SHOULDER

92154-Y237

$7.44

92154C

BOLT,FLANGE,8X22

92154-Y239

$1.92

92154D

BOLT

92154-Y246

$3.51

92172

SCREW

92172-Y100

$1.47

92200

WASHER

92200-Y111

$1.47

92210

NUT

92210-0912

$6.41

92210A

NUT,10MM

92210-Y107

$7.44

92210B

NUT,CASTLE,22MM

92210-Y112

$21.44
