Partiron

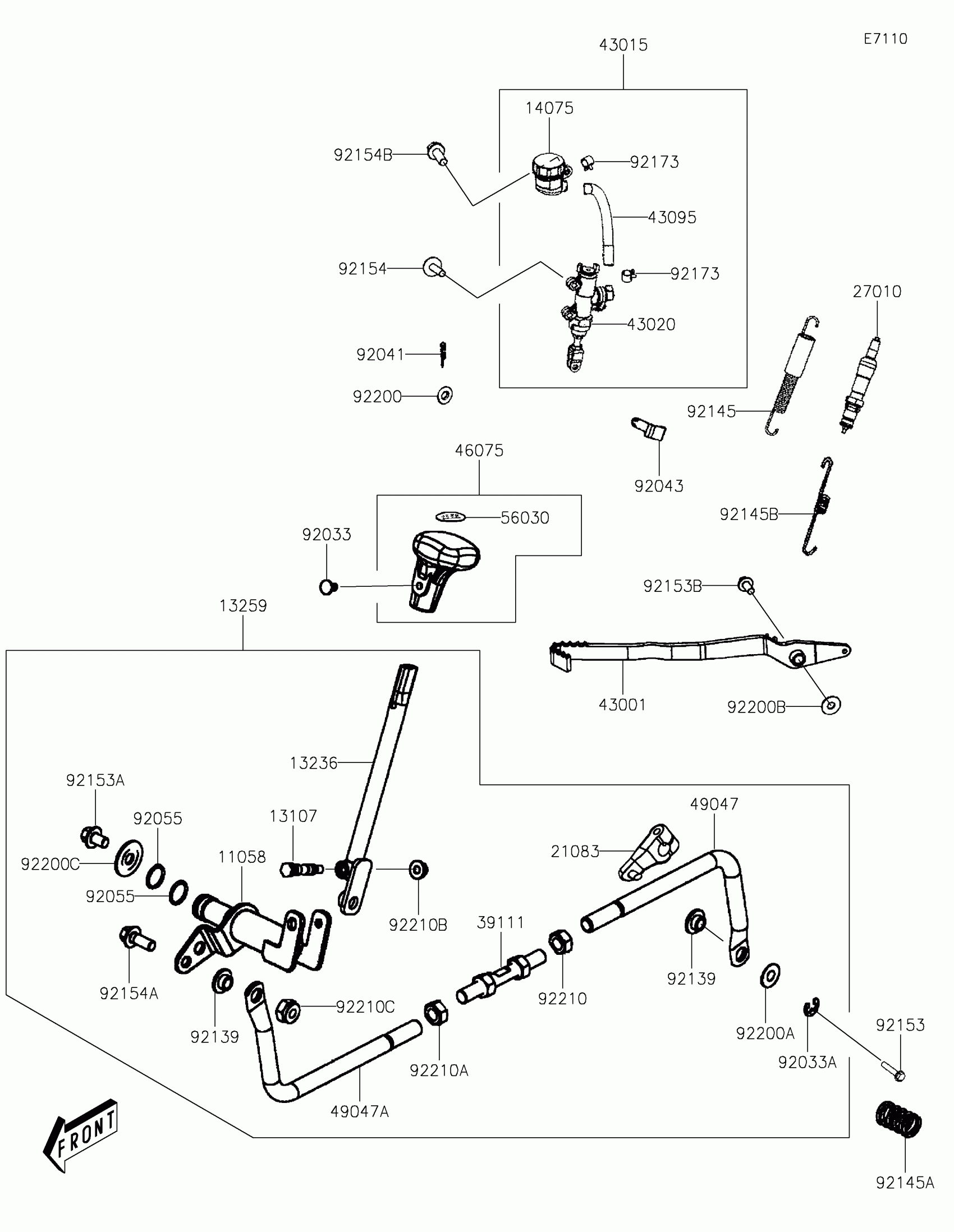

Kawasaki Brute Force 450 Control Diagram

#

Description
Price

11058

BRACKET,SHIFT

11058-Y002

$31.14

13107

SHAFT,PIVOT

13107-Y040

$21.17

13236

LEVER-COMP,SHIFT

13236-Y002

$32.49

13259

LEVER-ASSY-SHIFT CONTROL

13259-Y001

$136.99

14075

CAP-ASSY,RESERVOIR

14075-Y008

$9.78

21083

ARM,GEAR SELECT ASSY

21083-Y008

$44.73

27010

SWITCH,BRAKE

27010-Y006

$36.00

39111

ROD-TIE,SHIFT LINKAGE

39111-Y003

$17.32

43001

LEVER-BRAKE,PEDAL,P.C.BLACK

43001-Y003-945

$52.90

43015

CYLINDER-ASSY-MASTER,RR

43015-Y008

$161.71

43020

PISTON-COMP-BRAKE

43020-Y005

$22.51

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-Y029

$21.03

46075

GRIP,SHIFT

46075-Y010

$15.81

49047

ROD-SHIFT,RR

49047-Y003

$21.69

49047A

ROD-SHIFT,FR

49047-Y004

$21.69

56030

LABEL,SHIFT POSITION

56030-Y021

$4.17

92033

RIVET

92033-Y032

$1.89

92033A

RING-SNAP

92033-Y041

Unavailable

92041

COTTER,2X12

92041-Y001

$1.14

92043

PIN

92043-Y054

$10.05

92055

RING-O

92055-Y081

$7.44

92139

BUSHING,SHIFT

92139-Y013

$8.86

92145

SPRING,BRAKE PEDAL

92145-Y039

$5.03

92145A

SPRING

92145-Y083

$2.66

92145B

SPRING,STOP SW

92145-Y085

$2.59

92153

BOLT,FLANGE,6X22

92153-Y026

$0.68

92153A

BOLT,FLANGE,8X12

92153-Y031

$1.41

92153B

BOLT,FLANGE,8X16

92153-Y032

$1.14

92154

BOLT,6X25

92154-Y099

$3.73

92154A

BOLT,FLANGE,6MM

92154-Y182

$4.51

92154B

BOLT,5X16

92154-Y262

$2.24

92173

CLAMP,BRAKE HOSE

92173-Y022

$1.92

92200

WASHER,7X12

92200-Y043

$0.93

92200A

WASHER,8MM

92200-Y044

Unavailable

92200B

WASHER,FLAT

92200-Y128

$1.71

92200C

WASHER,PLAIN,8MM

92200-Y130

$1.47

92210

NUT,10MM

92210-Y019

$0.97

92210A

NUT,10MM

92210-Y022

$1.61

92210B

NUT,6MM

92210-Y026

$1.24

92210C

NUT,6MM

92210-Y061

$0.78
