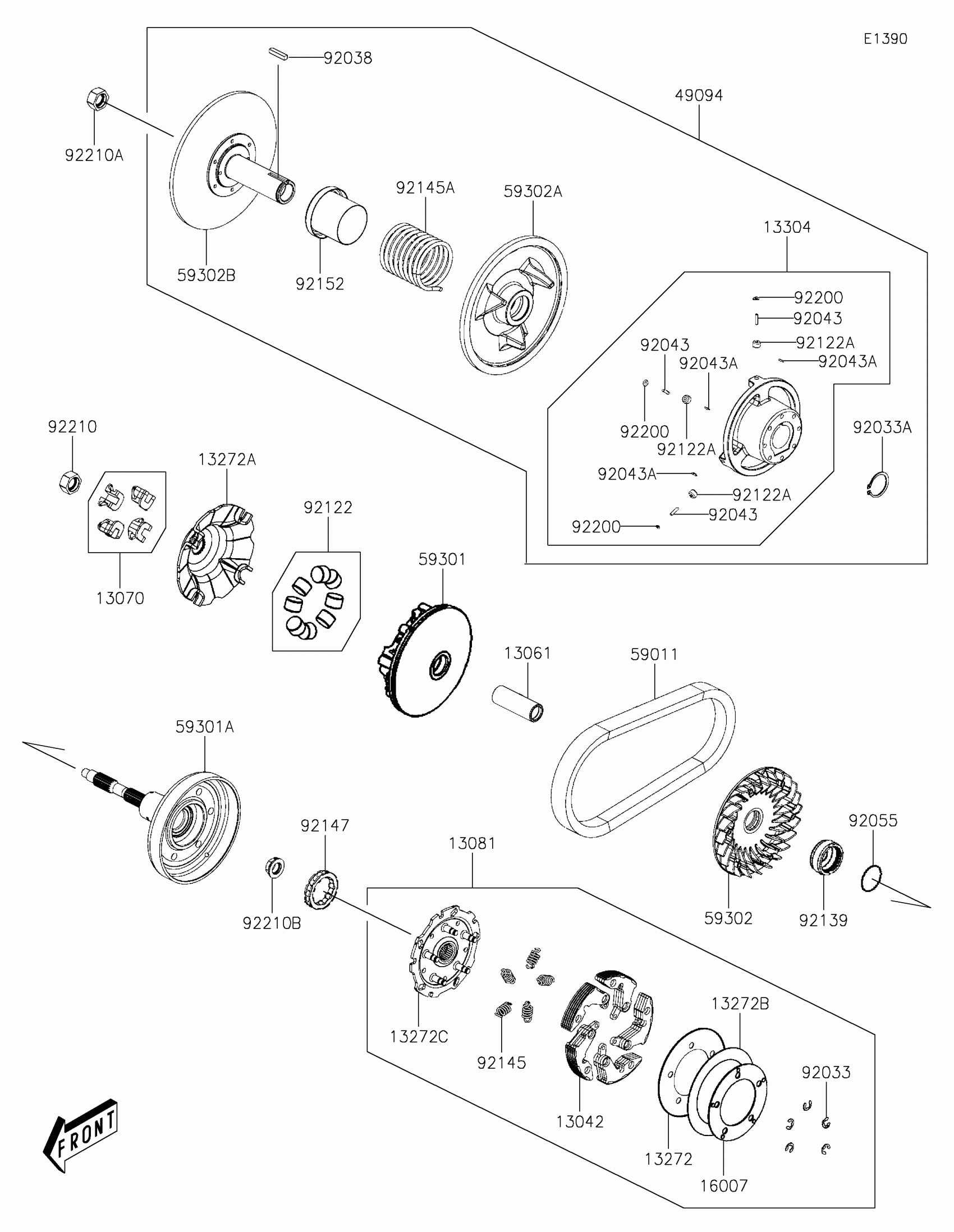

Kawasaki Brute Force 450 Belt Converter Diagram

#

Description
Price

13042

WEIGHT,CLUTCH

13042-Y011

$102.91

13061

BOSS,DRIVE FACE

13061-Y006

$49.17

13070

GUIDE,SLIDE,SET(4PCS)

13070-Y007

$11.24

13081

CLUTCH-ASSY,PRIMARY

13081-Y002

$389.92

13272

PLATE

13272-Y046

$18.66

13272A

PLATE,RAMP

13272-Y047

$21.53

13272B

PLATE,ADJUSTER

13272-Y048

$13.85

13272C

PLATE,PRIMARY DRIVE

13272-Y049

$130.58

13304

HOUSING-ASSY,DRIVEN CLUTCH

13304-Y001

$71.25

16007

SEAT-SPRING

16007-Y010

$13.05

49094

CONVERTER-ASSY-DRIVEN

49094-Y008

$322.36

59011

BELT,DRIVE

59011-Y011

$224.98

59301

SHEAVE-MOVABLE

59301-Y008

$122.74

59301A

SHEAVE-MOVABLE,PRIMARY DRIVE

59301-Y009

$153.88

59302

SHEAVE-COMP,FIXED

59302-Y021

$52.42

59302A

SHEAVE-COMP,MOVABLE

59302-Y022

$135.13

59302B

SHEAVE-COMP,FIXED

59302-Y023

$266.00

92033

RING-SNAP,7MM

92033-Y042

$2.10

92033A

RING-SNAP,35MM

92033-Y056

$4.34

92038

KEY,6X6X30

92038-Y006

$4.44

92043

PIN,CAM ROLLER

92043-Y057

$3.71

92043A

PIN,SPRING,3X16

92043-Y060

$5.39

92055

RING-O

92055-Y086

$1.81

92122

ROLLER,WEIGHT,SET(8PCS)

92122-Y023

$46.63

92122A

ROLLER,DRIVEN CLUTCH

92122-Y024

$10.27

92139

BUSHING,FIXED DRIVE

92139-Y017

$18.19

92145

SPRING,CLUTCH

92145-Y079

$2.19

92145A

SPRING,DRIVEN FACE

92145-Y080

$48.62

92147

BEARING,ONE WAY

92147-Y001

$154.44

92152

COLLAR,SEAL

92152-Y092

$24.44

92200

WASHER,THRUST

92200-Y109

$1.71

92210

NUT,FLANGE,16MM

92210-Y108

$7.95

92210A

NUT,FLANGE,16MM

92210-Y111

$5.90

92210B

NUT,FLANGE,18MM

92210-Y114

$15.81
