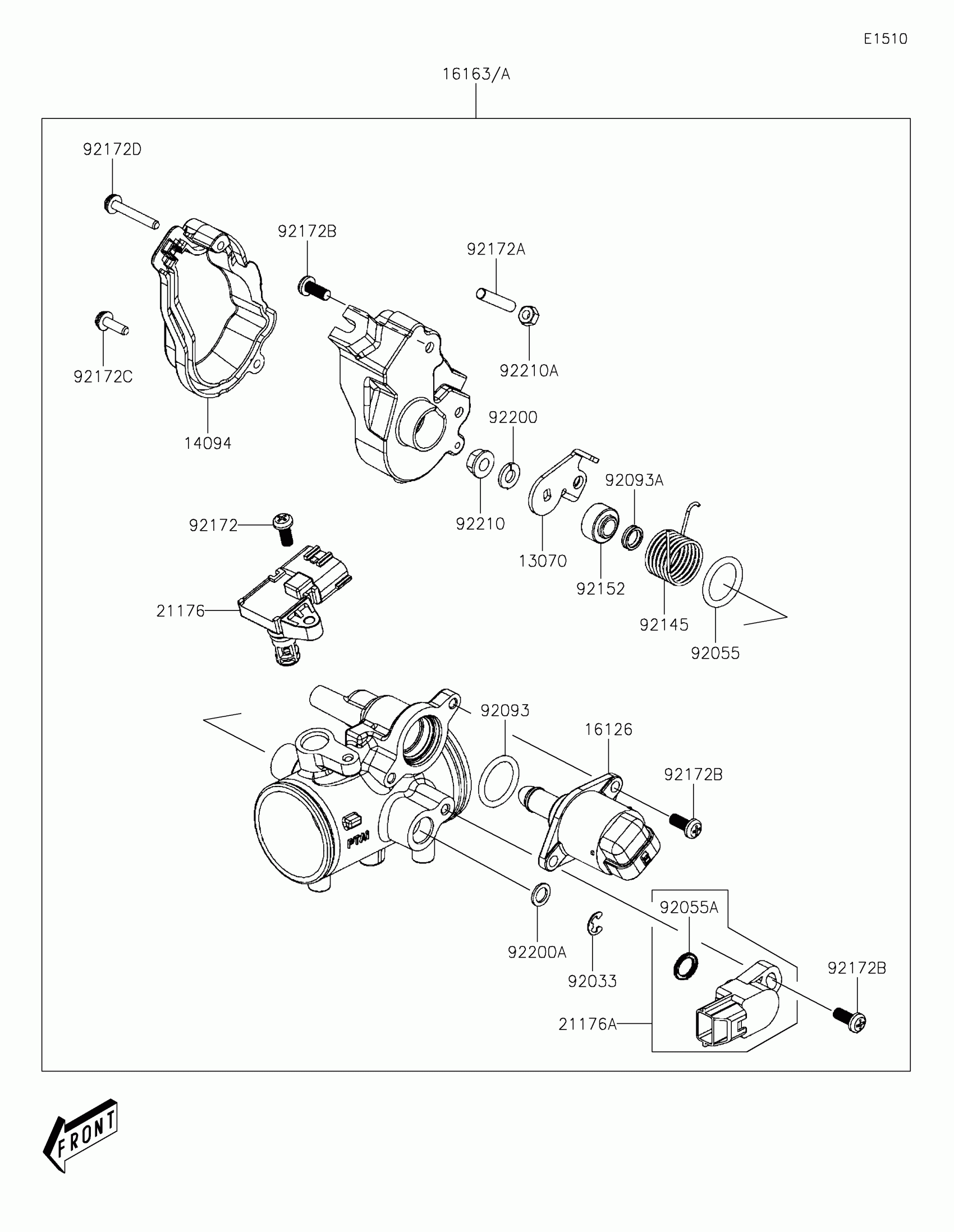

Kawasaki Brute Force 450 Throttle Diagram

Description

Price

13070

GUIDE

13070-Y006

$7.78

14094

COVER,WIRE STAY,S.BLACK

14094-Y005-933

$7.29

16126

VALVE,ISC

16126-Y005

$114.26

16163

THROTTLE-ASSY

16163-Y007

$620.39

16163A

THROTTLE-ASSY

16163-Y008

$620.39

21176

SENSOR,PRESSURE

21176-Y012

$106.71

21176A

SENSOR,THROTTLE POSITION

21176-Y013

$41.06

92033

RING-SNAP,TYPE E

92033-Y061

$1.71

92055

RING-O

92055-Y077

$2.36

92055A

RING-O,TPS

92055-Y082

$1.71

92093

SEAL

92093-Y030

$2.36

92093A

SEAL

92093-Y050

$7.78

92145

SPRING

92145-Y076

$3.61

92152

COLLAR

92152-Y079

$5.02

92172

SCREW,TAPPING,4X12

92172-Y085

$1.97

92172A

SCREW,PILOT

92172-Y093

$10.05

92172B

SCREW,PAN,5X12

92172-Y096

$4.34

92172C

SCREW,4X14

92172-Y102

$1.71

92172D

SCREW,4X28

92172-Y103

$1.71

92200

WASHER,6MM

92200-Y042

$0.93

92200A

WASHER

92200-Y108

$1.47

92210

NUT,6MM

92210-Y027

$0.80

92210A

NUT,HEX,5MM

92210-Y113

$2.36
