2025 Kawasaki Brute Force 450 Drive Shaft-Rear Diagram

← All diagrams

Find the part on the Drive Shaft-Rear diagram for your 2025 Kawasaki Brute Force 450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

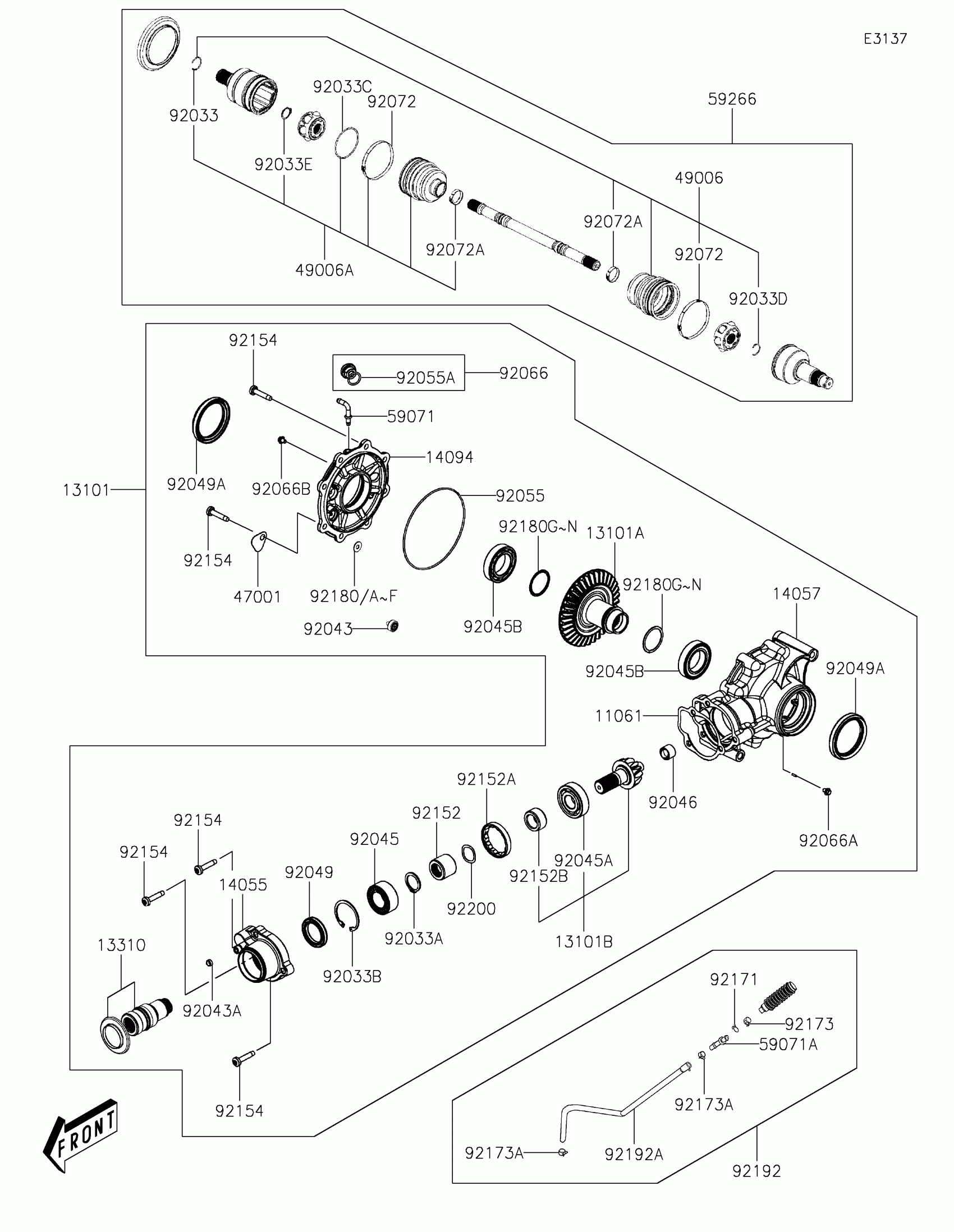

2025 Kawasaki Brute Force 450 Drive Shaft-Rear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,RR GEAR HOUSING

11061-Y082

1
Out of stock

13101

GEAR-ASSY,RR

13101-Y005

1
Out of stock

13101A

GEAR-ASSY,RING

13101-Y006

1
Out of stock

13101B

GEAR-ASSY,RR BEVEL

13101-Y009

1
Out of stock

13310

SHAFT-ASSY,INPUT,RR

13310-Y007

1
Out of stock

14055

CASE-GEAR,RR

14055-Y008

1
Out of stock

14057

CASE-COMP-GEAR,RR

14057-Y002

1
Out of stock

14094

COVER,RR GEAR

14094-Y008

1
Out of stock

47001

TAG-CHECKER

47001-Y001

1
Out of stock

49006

BOOT,RR,OUTSIDE

49006-Y015

1
Out of stock

49006A

BOOT,RR,INSIDE

49006-Y016

1
Out of stock

59071

JOINT,BREATHER

59071-Y010

1
Out of stock

59071A

JOINT,HOSE

59071-Y012

1
Out of stock

59266

JOINT-BALL,RR

59266-Y009

1
Out of stock

92033

RING-SNAP

92033-Y046

1
Out of stock

92033A

RING-SNAP

92033-Y047

1
Out of stock

92033B

RING-SNAP

92033-Y048

1
Out of stock

92033C

RING-SNAP

92033-Y049

1
Out of stock

92033D

RING-SNAP

92033-Y050

1
Out of stock

92033E

RING-SNAP

92033-Y051

1
Out of stock

92043

PIN,RING GEAR,STOPPER

92043-Y049

1
Out of stock

92043A

PIN,DOWEL

92043-Y050

1
Out of stock

92045

BEARING-BALL

92045-Y054

1
Out of stock

92045A

BEARING-BALL,6305

92045-Y062

1
Out of stock

92045B

BEARING-BALL,6008Z

92045-Y065

1
Out of stock

92046

BEARING-NEEDLE

92046-Y012

1
Out of stock

92049

SEAL-OIL,TC 38 55 8

92049-0076

1
Out of stock

92049A

SEAL-OIL,48X84X9

92049-Y053

1
Out of stock

92055

RING-O,150X2

92055-Y083

1
Out of stock

92055A

RING-O,20X2.5

92055-Y088

1
Out of stock

92066

PLUG,DRAIN

92066-Y023

1
Out of stock

92066A

PLUG,DRAIN

92066-Y024

1
Out of stock

92066B

PLUG,OIL LEVEL

92066-Y025

1
Out of stock

92072

BAND,BOOT

92072-Y025

1
Out of stock

92072A

BAND,BOOT

92072-Y027

1
Out of stock

92152

COLLAR,BEVEL GEAR SHAFT

92152-Y083

1
Out of stock

92152A

COLLAR,LOCK,M64X1.5

92152-Y085

1
Out of stock

92152B

COLLAR,RR BEVEL GEAR

92152-Y087

1
Out of stock

92154

BOLT,FLANGE,8X40

92154-Y113

1
Out of stock

92171

CLAMP

92171-Y011

1
Out of stock

92173

CLAMP

92173-Y093

1
Out of stock

92173A

CLAMP

92173-Y095

1
Out of stock

92180

SHIM,6.3X18X1.0

92180-Y062

—
Out of stock

92180A

SHIM,6.3X18X1.1

92180-Y063

—
Out of stock

92180B

SHIM,6.3X18X1.2

92180-Y064

—
Out of stock

92180C

SHIM,6.3X18X1.3

92180-Y065

—
Out of stock

92180D

SHIM,6.3X18X1.4

92180-Y066

—
Out of stock

92180E

SHIM,6.3X18X1.5

92180-Y067

—
Out of stock

92180F

SHIM,6.3X18X1.6

92180-Y068

—
Out of stock

92180G

SHIM,41X49X1.0

92180-Y069

—
Out of stock

92180H

SHIM,41X49X1.1

92180-Y070

—
Out of stock

92180I

SHIM,41X49X1.2

92180-Y071

—
Out of stock

92180J

SHIM,41X49X1.3

92180-Y072

—
Out of stock

92180K

SHIM,41X49X1.4

92180-Y073

—
Out of stock

92180L

SHIM,41X49X1.5

92180-Y074

—
Out of stock

92180M

SHIM,41X49X1.6

92180-Y075

—
Out of stock

92180N

SHIM,41X49X1.7

92180-Y076

—
Out of stock

92192

TUBE,BREATHER

92192-Y083

1
Out of stock

92192A

TUBE

92192-Y085

1
Out of stock

92200

WASHER,WAVE

92200-Y112

1
Out of stock
