2025 Kawasaki Brute Force 450 Drive Shaft-Propeller Diagram

← All diagrams

Find the part on the Drive Shaft-Propeller diagram for your 2025 Kawasaki Brute Force 450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

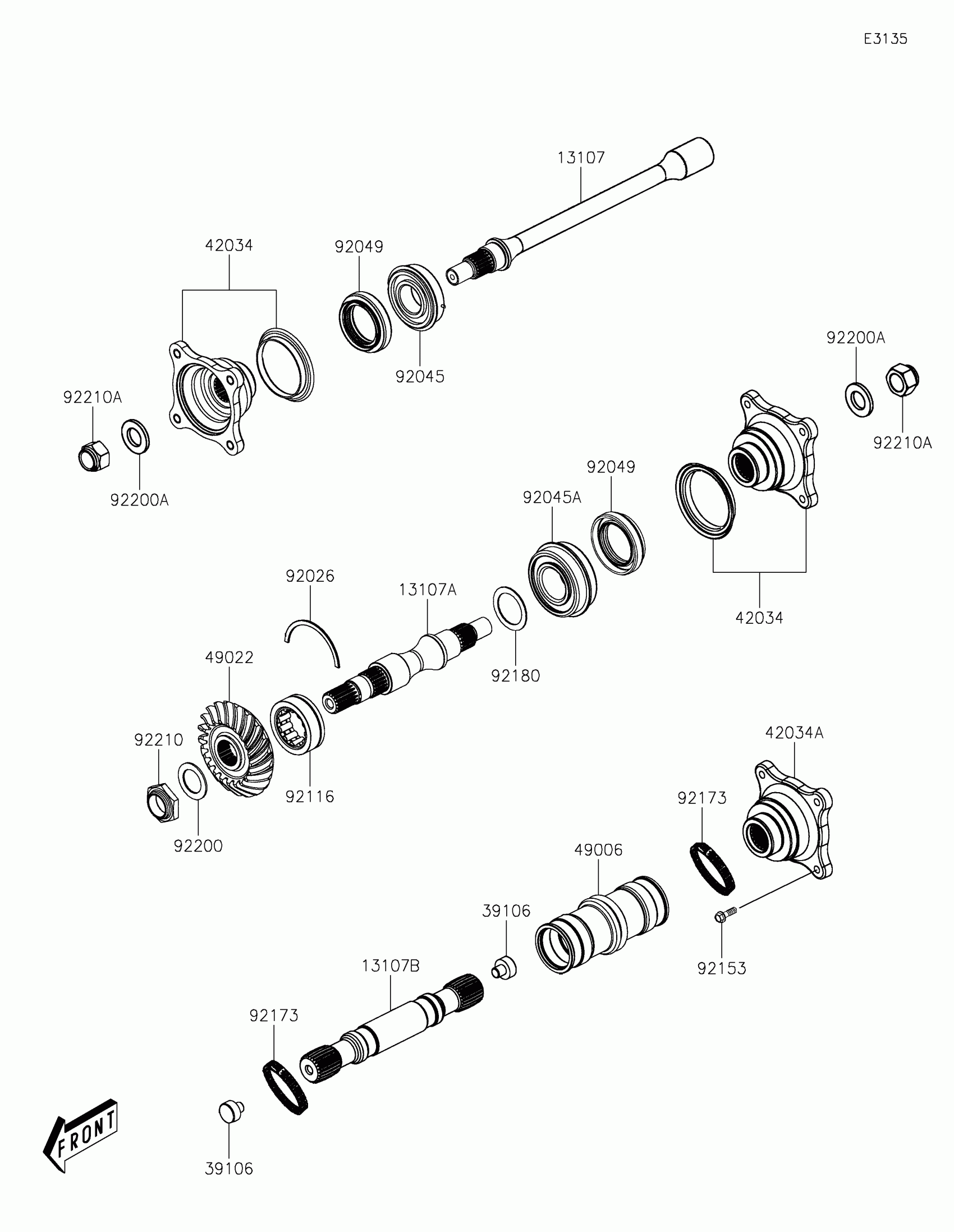

2025 Kawasaki Brute Force 450 Drive Shaft-Propeller Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,FR FINAL DRIVEN

13107-Y036

1
Out of stock

13107A

SHAFT,RR FINAL DRIVEN

13107-Y037

1
Out of stock

13107B

SHAFT,FR PROPELLER

13107-Y044

1
Out of stock

39106

RETAINER-BUMPER,DRIVE SHAFT

39106-Y001

1
Out of stock

42034

COUPLING,RR SHAFT

42034-Y004

1
Out of stock

42034A

COUPLING

42034-Y005

1
Out of stock

49006

BOOT,FR PROPELLER SHAFT

49006-Y023

1
Out of stock

49022

GEAR-BEVEL,DRIVEN

49022-Y009

1
Out of stock

92026

SPACER

92026-Y016

1
Out of stock

92045

BEARING-BALL,25X52X15

92045-Y064

1
Out of stock

92045A

BEARING-BALL,25X52X20.6

92045-Y067

1
Out of stock

92049

SEAL-OIL,34X52X9

92049-Y057

1
Out of stock

92116

BEARING-ROLLER,30X50X17

92116-Y001

1
Out of stock

92153

BOLT,FLANGE,8X20

92153-Y033

1
Out of stock

92173

CLAMP,BOOT

92173-Y098

1
Out of stock

92180

SHIM

92180-Y083

1
Out of stock

92200

WASHER,22X34X2.5

92200-Y115

1
Out of stock

92200A

WASHER,16MM

92200-Y116

1
Out of stock

92210

NUT,22MM

92210-Y105

1
Out of stock

92210A

NUT,HEX,16MM

92210-Y106

1
Out of stock
