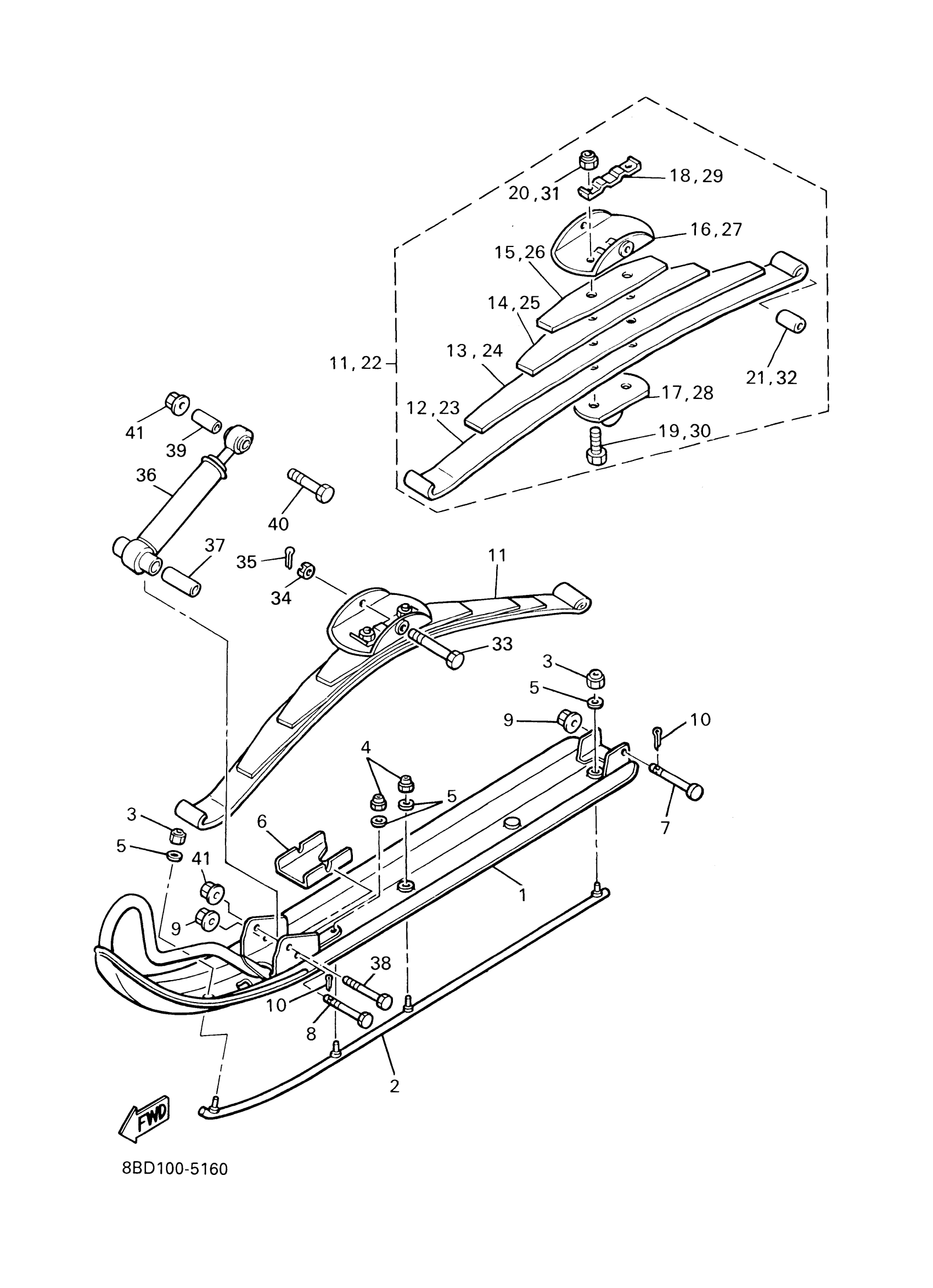

Find the part on the SKI diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha BR250TF 8BD8 SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP. 1

8E3-23710-09-00

1
Out of stock

2

RUNNER 1

8E3-23731-00-XX

1
Out of stock

3

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

4

NUT, U

95617-08100-00

1

$6.78

In stock

5

WASHER(6TA)

92907-08600-00

1

$2.52

In stock

6

PLATE, WEAR

888-23735-00-00

—

$60.09

In stock

7

1

$8.14

In stock

8

BOLT, PIN HOLE (8A7)

90102-08027-00

1

$7.35

In stock

9

NUT, NYLON

95717-08300-00

1

$2.57

In stock

10

PIN, COTTER (648)

91490-20015-00

1

$1.85

In stock

11

SPRING ASSY 1

8M8-23760-10-00

1
Out of stock

12

LEAF 1

888-23761-10-00

1
Out of stock

13

LEAF 2

865-23762-10-00

1
Out of stock

14

LEAF 3

899-23763-10-00

—

$33.34

In stock

15

LEAF 4

899-23764-10-00

1
Out of stock

16

SADDLE

8G6-23766-00-00

—

$32.37

In stock

17

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

18

WASHER, ROCK (8J5)

90215-10155-00

—

$11.66

In stock

19

. BOLT

90109-105E1-00

1
Out of stock

20

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

21

COLLAR

90387-08478-00

1
Out of stock

22

SPRING ASSY 2

8M8-23770-10-00

1
Out of stock

23

LEAF 1

888-23761-10-00

1
Out of stock

24

LEAF 2

865-23762-10-00

1
Out of stock

25

LEAF 3

899-23763-10-00

—

$33.34

In stock

26

LEAF 4

899-23764-10-00

1
Out of stock

27

SADDLE

8G6-23766-00-00

—

$32.37

In stock

28

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

29

WASHER, ROCK (8J5)

90215-10155-00

—

$11.66

In stock

30

. BOLT

90109-105E1-00

1
Out of stock

31

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

32

COLLAR

90387-08478-00

1
Out of stock

33

BOLT, PIN HOLE (8G6)

90102-12030-00

—

$11.28

In stock

34

NUT, CASTLE

95307-12900-00

—

$5.85

In stock

35

PIN, COTTER

91401-30025-00

—

$6.18

In stock

36

CUSHION ASSY

8J6-23350-00-00

—

$145.14

In stock

37

COLLAR (878)

90387-08262-00

—

$9.02

In stock

38

BOLT, HEXAGON

97017-08055-00

—

$6.88

In stock

39

COLLAR (864)

90387-08224-00

—

$7.52

In stock

40

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

41

NUT, NYLON

95717-08300-00

1

$2.57

In stock
