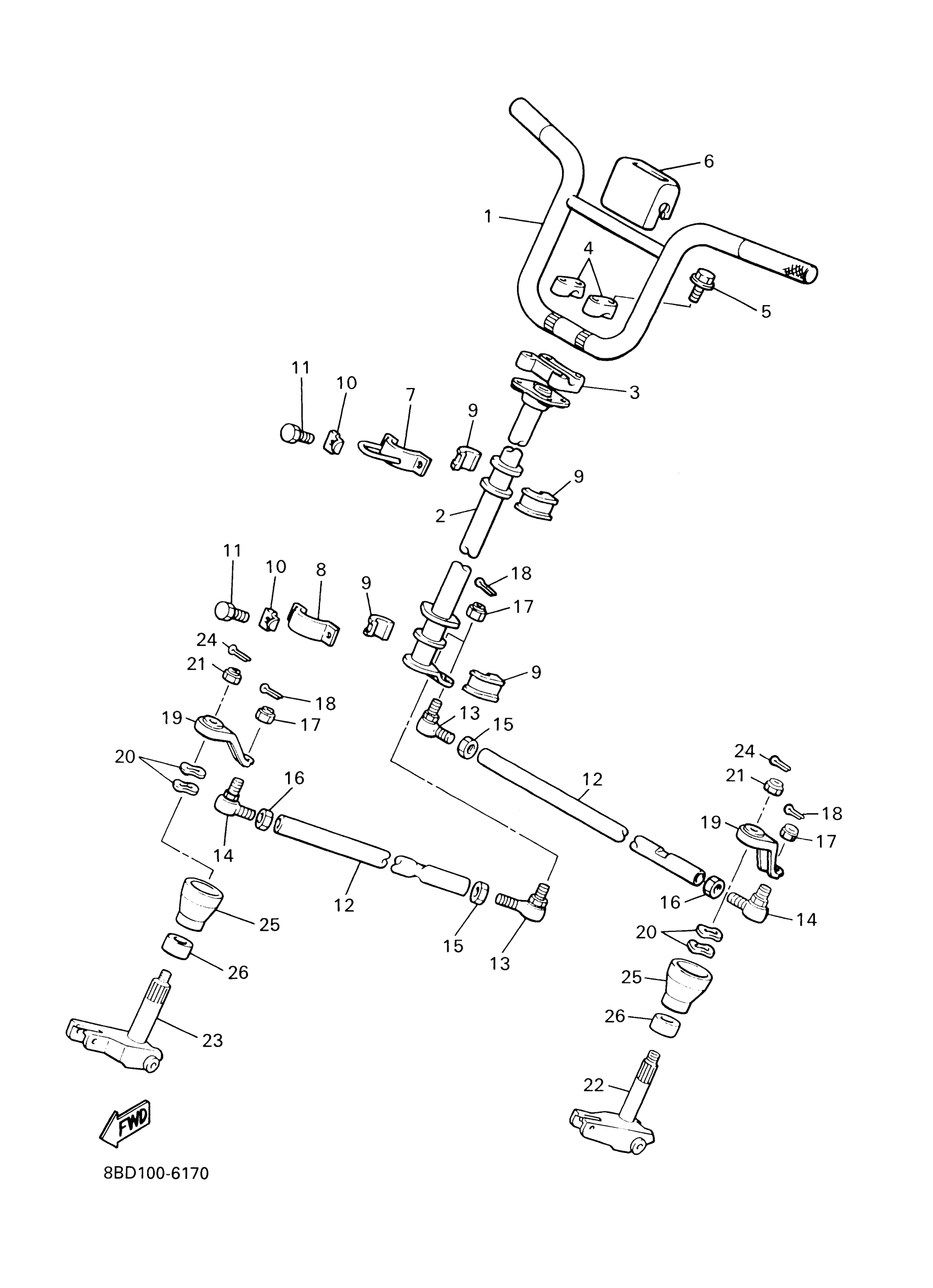

Find the part on the Steering diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha BR250TF 8BD8 Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

86A-23811-90-00

1

$90.17

In stock

2

COLUMN, STEERING 2

8R4-23813-00-00

1

$123.18

In stock

3

HANDLE, HOLDER

164-23441-01-98

—
Out of stock

4

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

5

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

6

COVER, STEERING

8F3-23818-00-00

—

$21.86

In stock

7

HOLDER, BEARING

84M-23872-00-00

—

$16.78

In stock

8

HOLDER, BEARING

84M-23872-00-00

—

$16.78

In stock

9

BEARING, STEERING

8F3-23812-00-00

1

$9.89

In stock

10

WASHER, LOCK 1

8AC-23894-01-00

1

$3.62

In stock

11

BOLT, HEXAGON

97017-08020-00

1
Out of stock

12

ROD, STEERING RELAY

8R4-23821-00-00

1
Out of stock

13

JOINT, UNIVERSAL 1

86X-23841-00-00

1

$51.36

In stock

14

JOINT, UNIVERSAL 2

86X-23845-00-00

1

$54.20

In stock

15

NUT (3WP1)

95317-10700-00

1

$6.17

In stock

16

NUT, HEXAGON (8A5)

90170-10186-00

—

$7.60

In stock

17

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

18

PIN, COTTER

91490-25020-00

—

$2.94

In stock

19

ARM, OUTSIDE 1

88P-23851-00-00

1
Out of stock

20

WASHER, WAVE (878)

90206-20037-00

—
Out of stock

21

NUT, NYLON

95707-10300-00

—

$6.68

In stock

22

COLUMN, SKI 1

8Y1-23853-00-00

1
Out of stock

23

COLUMN, SKI 2

8Y1-23854-00-00

1
Out of stock

24

PIN, COTTER

91490-25020-00

—

$2.94

In stock

25

COVER 2

8U0-2198G-00-00

1
Out of stock

26

SPACER

8Y1-21998-00-00

1
Out of stock
