2001 Yamaha BR250TF 8BD8 Shroud. Windshield Diagram

← All diagrams

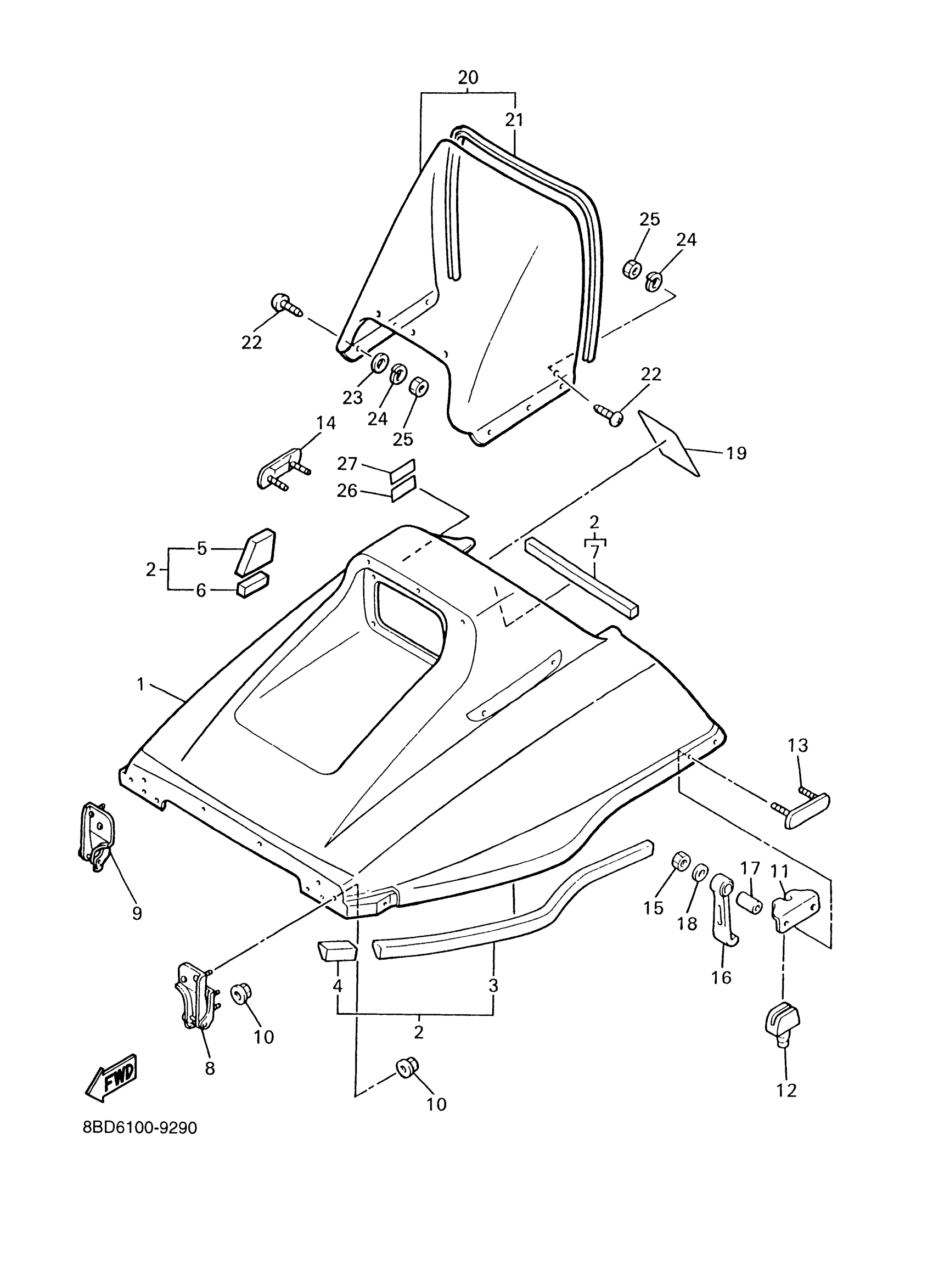

Find the part on the Shroud. Windshield diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha BR250TF 8BD8 Shroud. Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

8BD-77111-30-00

1
Out of stock

2

LINING SET

8BD-W7726-01-00

1
Out of stock

3

PATCH 5

8X8-21965-00-00

—

$4.77

In stock

4

PATCH 6

80F-21966-00-00

1
Out of stock

5

LINING, SHROUD 1

80F-77261-00-00

—

$3.91

In stock

6

DAMPER, PLATE

90520-30005-00

—

$0.43

In stock

7

DAMPER, PLATE

90520-15005-00

—

$1.71

In stock

8

HINGE ASSY

8R4-77140-00-00

—

$28.25

In stock

9

HINGE ASSY 2

8R4-7714A-00-00

—

$28.25

In stock

10

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock

11

CLAMP 2

8R4-77136-00-00

1
Out of stock

12

STOPPER

8R4-77188-00-00

1

$17.28

In stock

13

PLATE 1

80F-77185-00-00

1
Out of stock

14

PLATE 2

80F-77186-00-00

—

$37.60

In stock

15

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

16

BODY, LATCH 1

8R4-77171-00-00

—

$21.98

In stock

17

COLLAR 849833160000

90387-06027-00

—

$6.68

In stock

18

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

19

LABEL, WARNING 1

87S-77761-10-00

1
Out of stock

20

WINDSHIELD COMP.

80J-77210-10-00

—

$304.92

In stock

21

TRIM,UPPER

87K-77213-00-00

1
Out of stock

22

SCREW, TAPPING (8R4)

90164-05007-00

—

$3.13

In stock

23

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

24

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

25

NUT, HEXAGON

95317-05600-00

—

$1.10

In stock

26

LABEL,1

8AF-47578-00-00

—

$5.71

In stock

27

LABEL,CAUTION

8AE-1417E-00-00

—

$5.71

In stock
