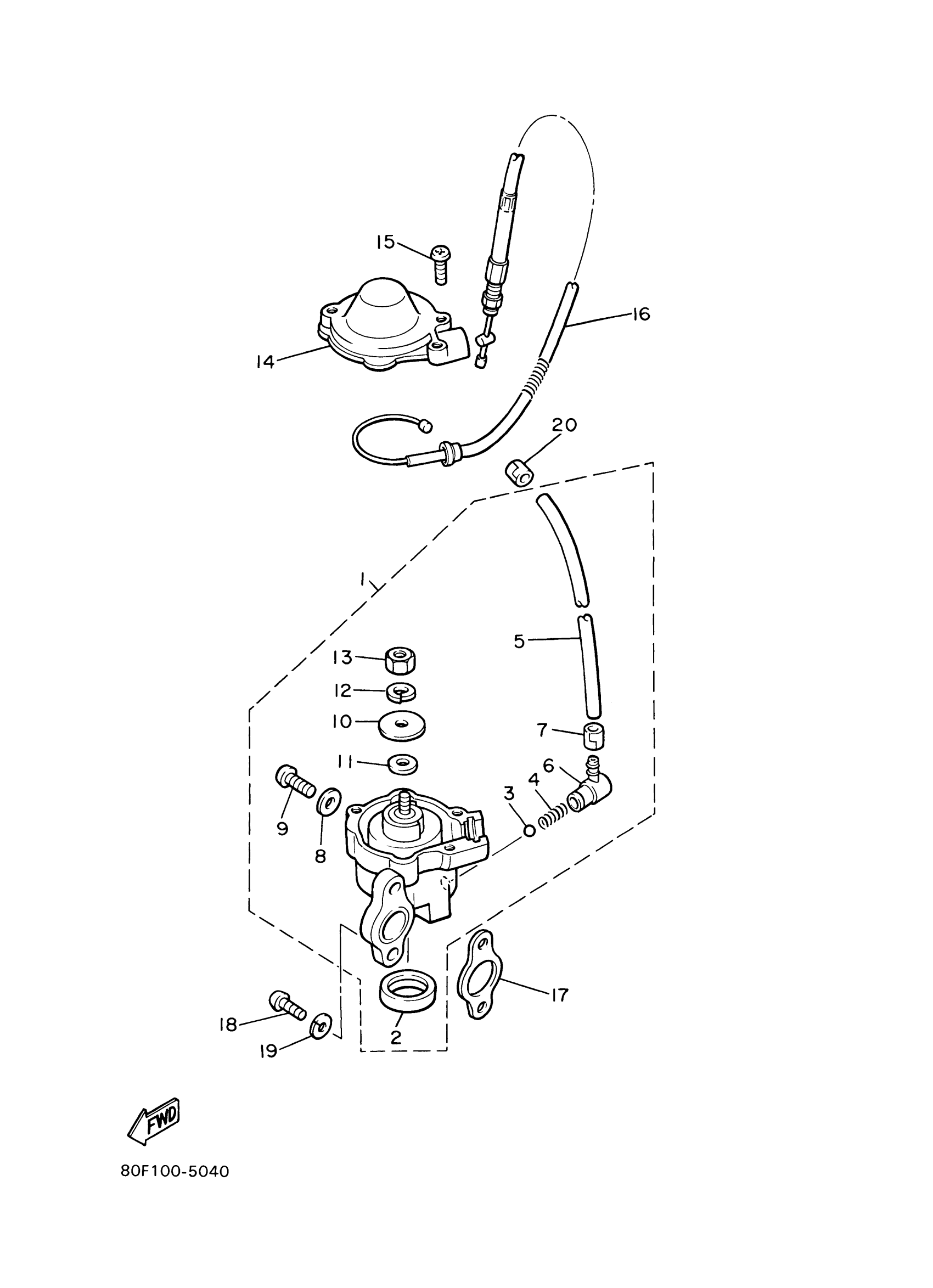

Find the part on the OIL Pump diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha BR250TF 8BD8 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

81E-13101-01-00

1
Out of stock

2

. PLUG

90338-21100-00

1
Out of stock

3

BALL

93505-32002-00

1

$2.22

In stock

4

SPRING, CHECK BALL (451)

90501-02217-00

1

$5.62

In stock

5

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

1

$9.15

In stock

6

NOZZLE

353-13552-01-00

1
Out of stock

7

CLIP (2A6)

90468-02025-00

1

$7.02

In stock

8

GASKET 137131870000

90430-04004-00

1
Out of stock

9

SCREW, BINDING

98907-04008-00

1
Out of stock

10

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

11

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

11

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

11

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

12

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

13

NUT, HEXAGON

95317-05600-00

1

$1.10

In stock

14

COVER, ADJUST PULLEY

8A5-13146-01-00

—

$15.95

In stock

15

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

16

PUMP CABLE ASSY

81E-26320-00-00

—

$51.48

In stock

17

GASKET, PUMP CASE

126-13116-01-00

—
Out of stock

18

SCREW, PAN HEAD(JJ6)

98507-05016-00

—

$1.40

In stock

19

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

20

CLIP (2A6)

90468-02025-00

1

$7.02

In stock
