2001 Yamaha BR250TF 8BD8 Crankshaft. Piston Diagram

← All diagrams

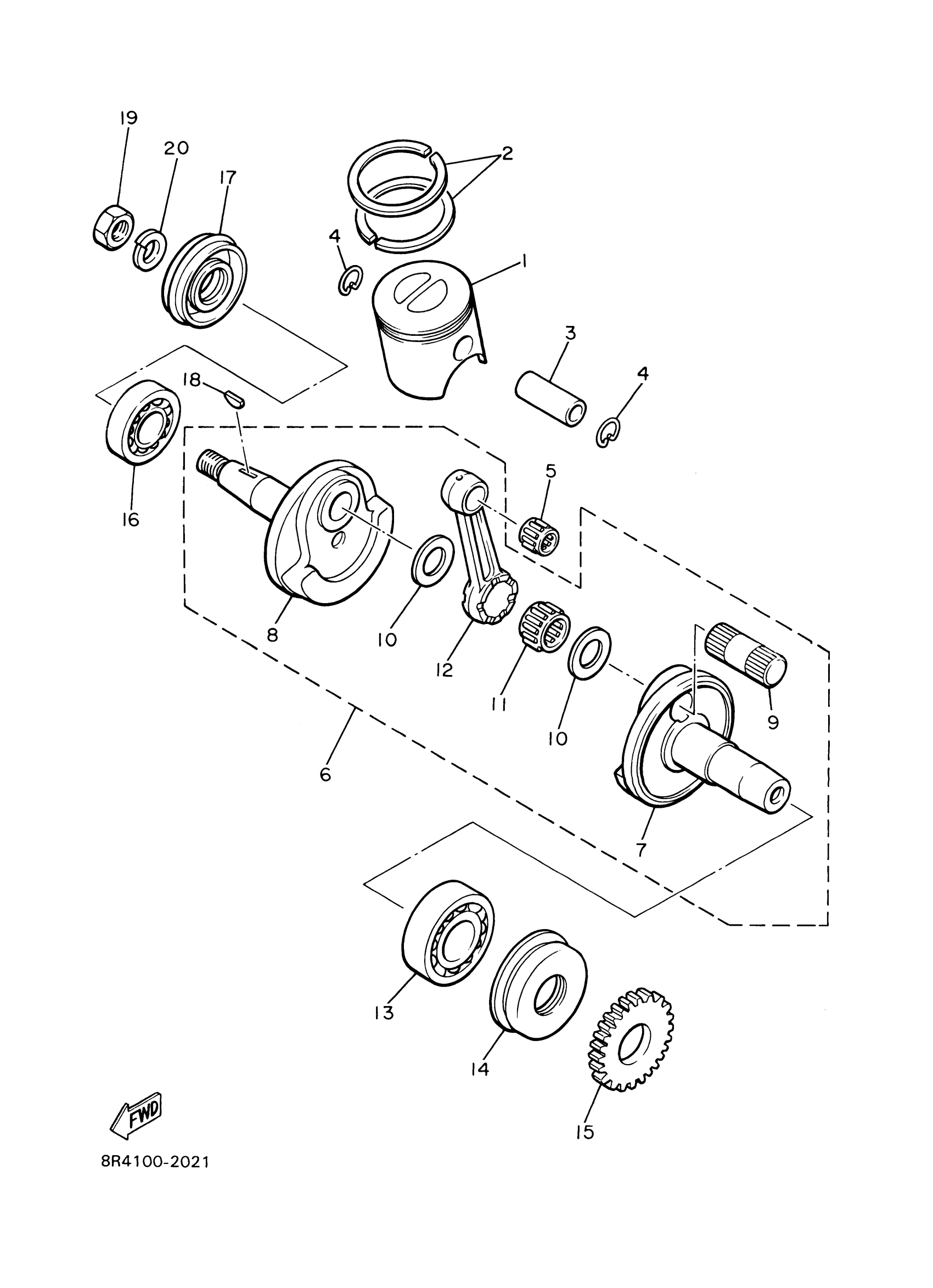

Find the part on the Crankshaft. Piston diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha BR250TF 8BD8 Crankshaft. Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON (STD)

8R4-11631-00-96

1

$153.92

In stock

1

PISTON (0.25MM O/S)

8R4-11635-00-00

—

$61.26

In stock

1

PISTON (2ND 0/S 0.50MM)

8R4-11636-00-00

—

$65.68

In stock

2

PISTON RING SET

8R4-11610-00-00

1

$61.94

In stock

2

PISTON RING SET

8R4-11610-10-00

1

$27.91

In stock

2

PISTON RING SET

8R4-11610-20-00

1

$28.94

In stock

3

PIN, PISTON

818-11633-00-00

1

$28.05

In stock

4

CLIP 6041163400

93450-20026-00

1

$5.10

In stock

5

1

$32.87

In stock

6

CRANKSHAFT ASSY

8R4-11400-00-00

—

$516.99

In stock

7

CRANK 1

8R4-11412-00-00

—

$207.29

In stock

8

. CRANK 2

8R4-11422-00-00

1
Out of stock

9

. PIN, CRANK 1

857-11681-00-00

1
Out of stock

10

WASHER (152-11685-00)

90209-24073-00

1

$10.08

In stock

11

BEARING

93310-424E8-00

1

$19.49

In stock

12

. ROD, CONNECTING

8R4-11651-00-00

1
Out of stock

13

BEARING (8R4)

93306-30623-00

—

$65.73

In stock

14

OIL SEAL(8V7)

93102-30326-00

—

$33.23

In stock

15

GEAR, PUMP DRIVE

8R4-13178-00-00

—

$28.97

In stock

16

BEARING(84A)

93306-30555-00

—

$63.65

In stock

17

OIL SEAL (8G8)

93102-25183-00

—

$11.94

In stock

18

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

19

NUT

90170-16425-00

—
Out of stock

20

WASHER(JN5)

92907-16100-00

—

$12.08

In stock
