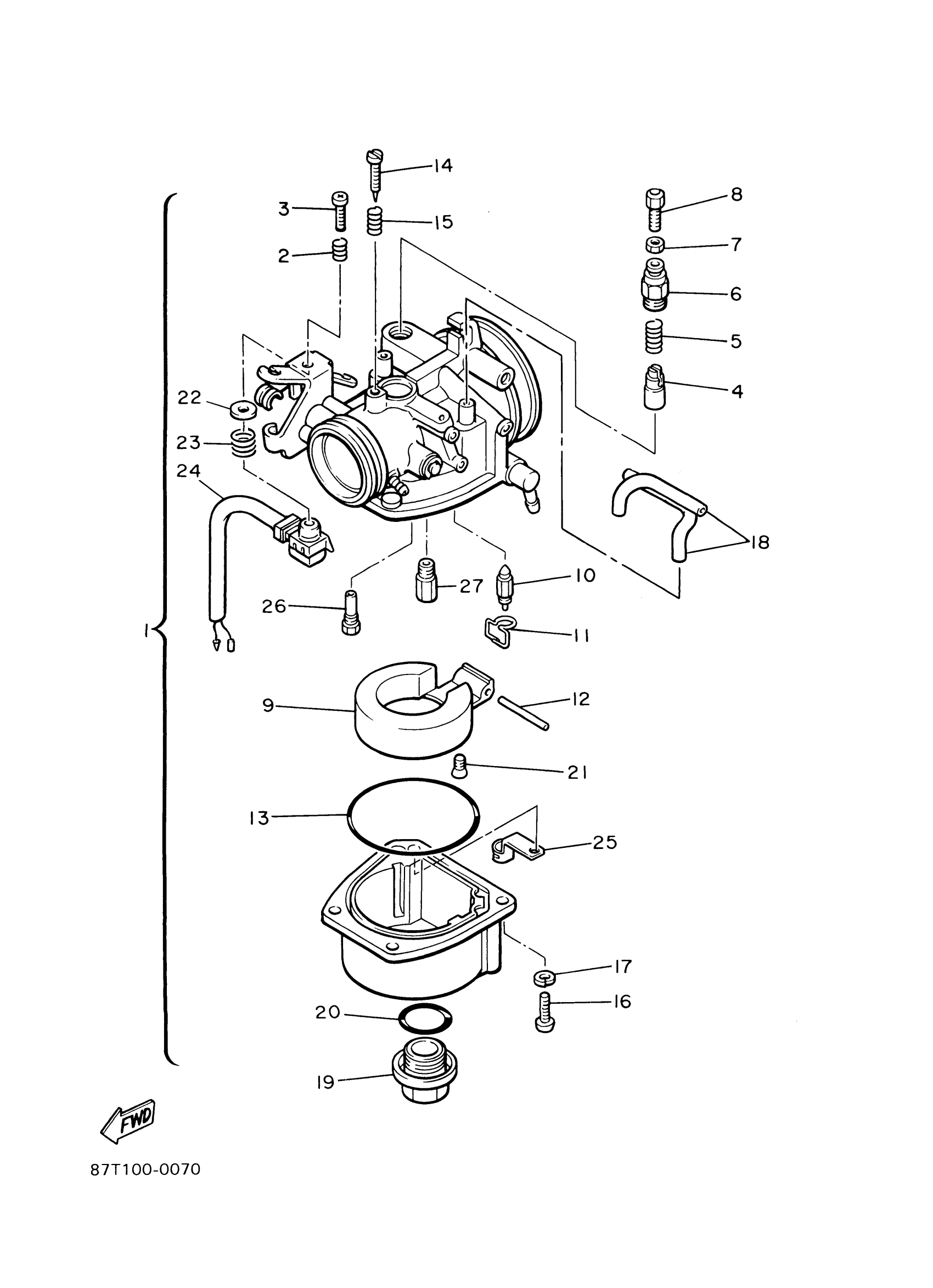

Find the part on the Carburetor diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha BR250TF 8BD8 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY 1

80J-14101-05-00

1
Out of stock

2

SPRING, THROTTLE VALVE

80F-14131-00-00

1
Out of stock

3

SCREW, THROTTLE STOP

80F-14121-00-00

—

$9.25

In stock

4

PLUNGER, STARTER

371-14993-60-00

1

$31.14

In stock

5

SPRING (8E7)

90501-08443-00

1

$8.63

In stock

6

CAP, PLUNGER

8A6-14969-00-00

1

$23.14

In stock

7

. NUT, CABLE ADJUSTING

8E7-14161-00-00

1
Out of stock

8

1

$19.06

In stock

9

FLOAT

8G6-14985-01-00

1

$32.43

In stock

10

VALVE,FLOAT

8E7-14546-01-00

1

$57.49

In stock

11

CLIP

633-14159-00-00

1

$13.88

In stock

12

. PIN, FLOAT ARM

663-14548-00-00

1

$5.34

In stock

13

WASHER, FLOAT CHAMBER

8G6-14984-00-00

1

$16.62

In stock

14

SCREW, ADJUST

8G6-14521-00-00

—

$11.28

In stock

15

SPRING, COMPRESSION

90501-08214-00

1

$5.74

In stock

16

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

17

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

18

. PIPE

8R4-14994-00-00

1
Out of stock

19

. ROD

8M7-14992-00-00

1
Out of stock

20

O-RING (8A6)

93210-19309-00

—

$4.91

In stock

21

SCREW, FLAT

98707-04008-00

1
Out of stock

22

PLATE

80F-14146-00-00

—
Out of stock

23

. SPRING, THROTTLE STOP

80F-14133-00-00

1
Out of stock

24

SWITCH, CARBURETOR

87S-8259A-01-00

—

$73.57

In stock

25

CLIP

80F-14137-01-00

—

$8.49

In stock

26

JET, SLOW (#78)

8G6-14948-18-00

—

$11.82

In stock

27

. JET, MAIN (#98)

8A6-14515-98-00

1
Out of stock

27

. JET, MAIN (#100)

8A6-14516-00-00

1
Out of stock

27

. JET, MAIN (#102)

8A6-14516-02-00

1
Out of stock

27

JET, MAIN (#105)

8A6-14516-05-00

—

$14.00

In stock
