2001 Yamaha BR250TF 8BD8 Intake Diagram

← All diagrams

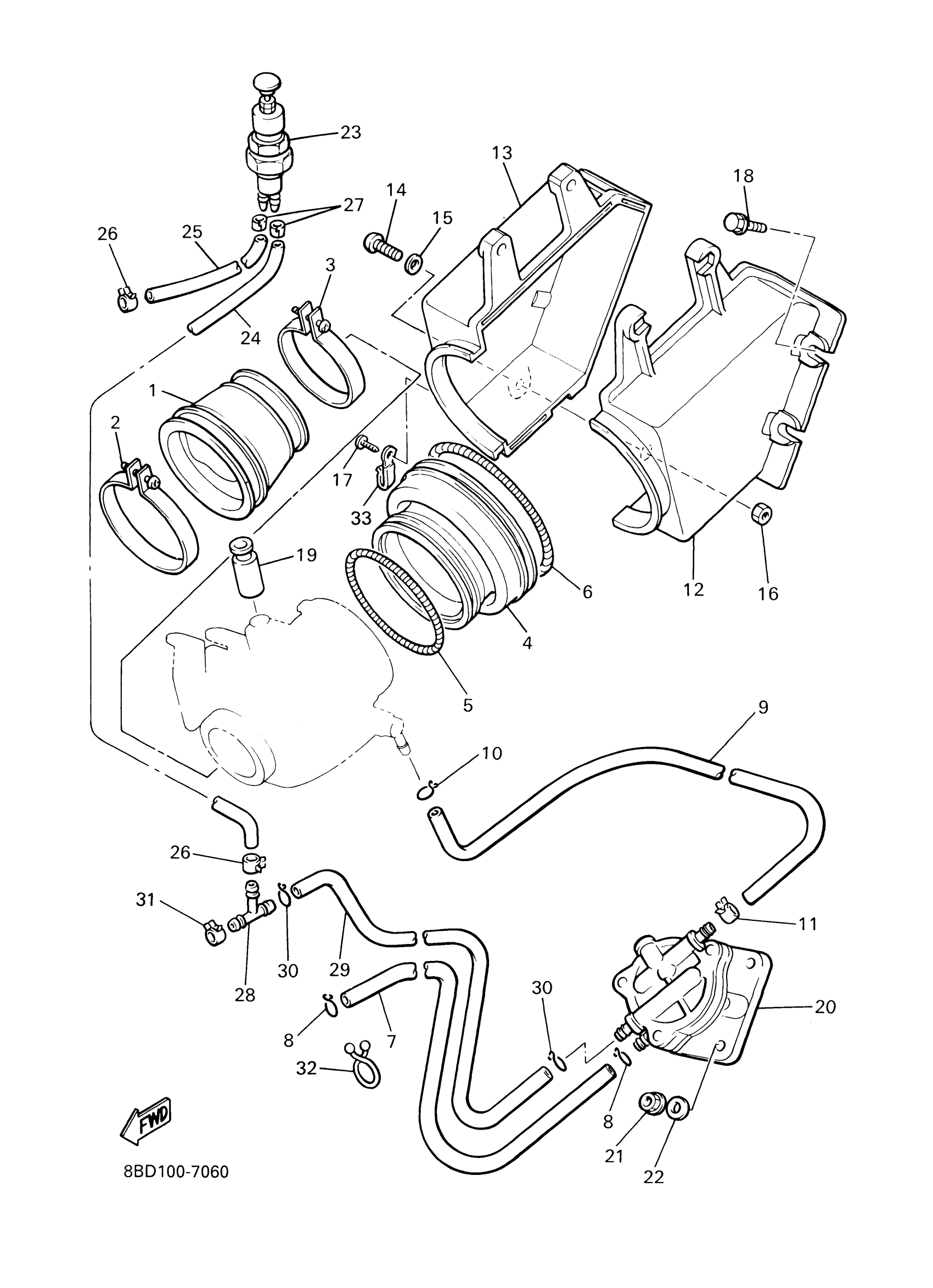

Find the part on the Intake diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha BR250TF 8BD8 Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD, INTAKE

8R4-13555-00-00

—

$43.42

In stock

2

HOSE CLAMP ASSY

90450-64004-00

1

$12.00

In stock

3

CLAMP HOSE 304144550000

90460-51059-00

1

$14.64

In stock

4

JOINT, AIR CLEANER 1

8R4-14453-00-00

1

$32.53

In stock

5

SPRING, TENSION (8R4)

90506-06261-00

1

$6.94

In stock

6

SPRING, TENSION (8R4)

90506-06262-00

1

$5.74

In stock

7

HOSE (L500)

90445-11036-00

—

$16.55

In stock

8

CLIP (7K7)

90467-11044-00

1
Out of stock

9

HOSE (L210)

90445-110F5-00

1

$14.08

In stock

10

CLIP (8J7)

90467-11009-00

1

$7.55

In stock

11

CLIP (7K7)

90467-11044-00

1
Out of stock

12

SILENCER, INTAKE 1

8R4-14431-00-00

1
Out of stock

13

SILENCER 2

8R4-14441-01-00

—

$26.23

In stock

14

SCREW, PAN HEAD(4MY)

98507-05025-00

1

$6.18

In stock

15

WASHER(1RW)

92907-05600-00

1
Out of stock

16

NUT, NYLON

95707-05300-00

—

$2.74

In stock

17

SCREW, PAN TAP.2

97707-60510-00

—

$0.33

In stock

18

BOLT, WITH WASHER

90119-05071-00

—

$6.52

In stock

19

BOOT

8J5-26352-00-00

1
Out of stock

20

FUEL PUMP ASSY

8A5-24410-02-00

—

$161.42

In stock

21

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

22

WASHER, PLATE (8H9)

90201-06727-00

—
Out of stock

23

PRIMER PUMP ASSY

8X8-24360-01-00

—

$127.32

In stock

24

HOSE (L360)

90445-084K0-00

—

$3.80

In stock

25

HOSE (L360)

90445-084K0-00

—

$3.80

In stock

26

CLIP(42X)

90467-07093-00

—

$1.72

In stock

27

CLIP (2A6)

90468-02025-00

—

$7.02

In stock

28

PIPE, JOINT

815-24379-00-00

—

$19.74

In stock

29

HOSE (L210)

90445-110F5-00

1

$14.08

In stock

30

CLIP (8J7)

90467-11009-00

1

$7.55

In stock

31

CLIP (7K7)

90467-11044-00

1
Out of stock

32

CLAMP (3Y2)

90464-16039-00

—
Out of stock

33

CLAMP(83Y)

90465-08333-00

—
Out of stock
