2001 Yamaha BR250TF 8BD8 Fuel Tank Diagram

← All diagrams

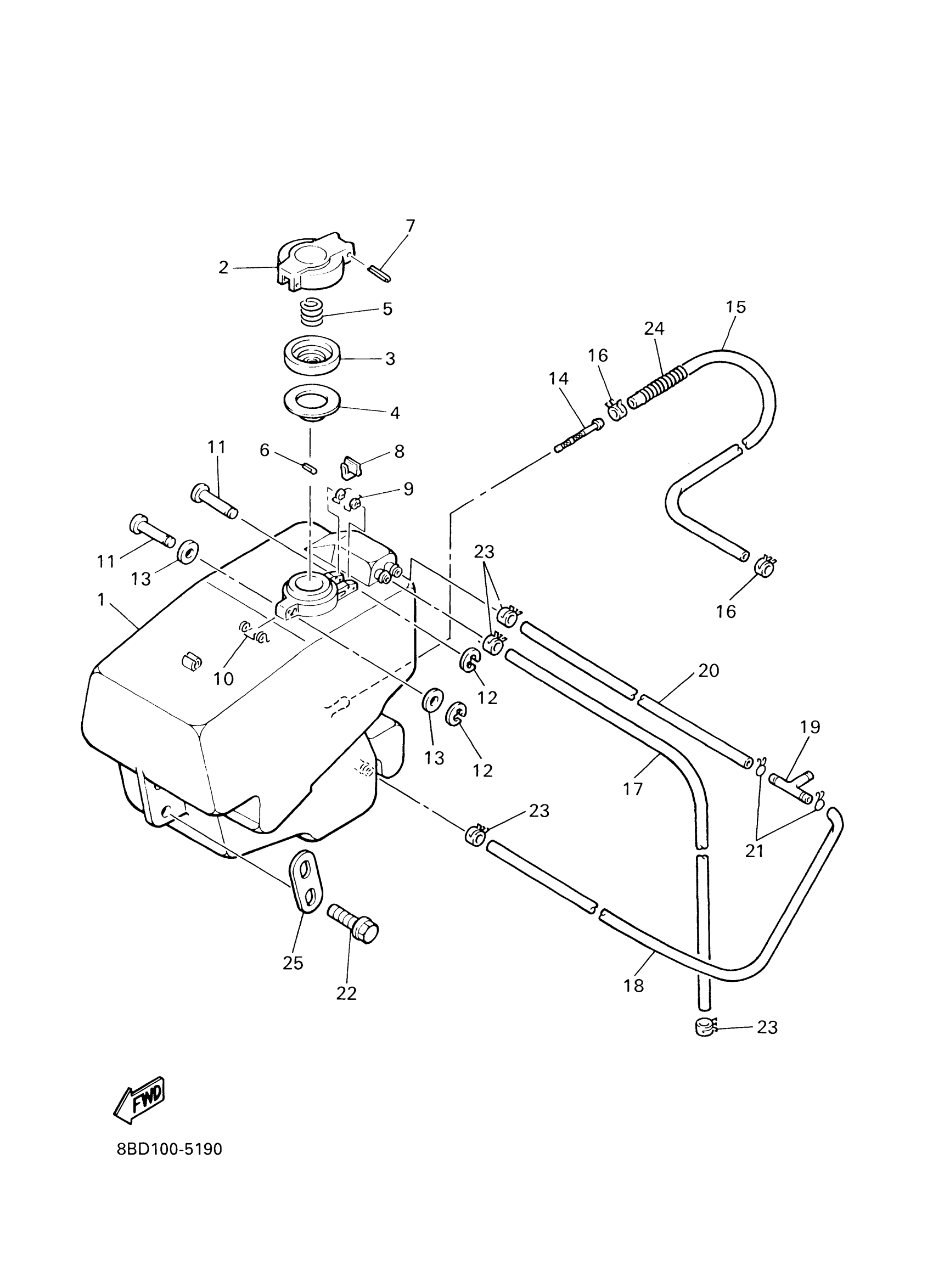

Find the part on the Fuel Tank diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha BR250TF 8BD8 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL

8R4-24111-02-00

—

$199.82

In stock

2

BODY, CAP

8A5-24611-00-00

1
Out of stock

3

DISK,CAP

813-24613-01-00

1

$18.71

In stock

4

GASKET, CAP 1

89A-24641-00-00

1

$9.35

In stock

5

SPRING, CAP

90501-20130-00

1

$6.80

In stock

6

PIN, SPRING

91690-30016-00

1

$5.88

In stock

7

PIN, SPRING

91609-25032-00

1

$1.83

In stock

8

HOOK

83M-24628-00-00

1

$19.68

In stock

9

SPRING, TORSION(81E)

90508-10715-00

—

$5.48

In stock

10

SPRING, TORSIOW (8F3)

90508-08353-00

—

$6.87

In stock

11

PIN (813)

90249-03017-00

1

$2.25

In stock

12

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

13

WASHER, PLATE 8077743700

90201-03313-00

1

$5.20

In stock

14

NET, FILTER 1

5BM-24514-00-00

1

$5.82

In stock

15

HOSE (L700)

90445-117F2-00

1
Out of stock

16

CLIP

90467-11028-00

1

$5.14

In stock

17

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

—

$23.43

In stock

18

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

—

$23.43

In stock

19

PIPE, JOINT

801-24376-00-00

—

$11.18

In stock

20

HOSE

90699-50100-00

1

$26.99

In stock

21

CLIP (8L2)

90467-08017-00

—

$7.51

In stock

22

BOLT, FLANGE(8AB)

95817-08020-00

—

$7.00

In stock

23

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

24

PROTECTOR, PIPE

8F3-24327-00-00

1
Out of stock

25

WASHER, SPECIAL

8R4-24186-00-00

1
Out of stock
