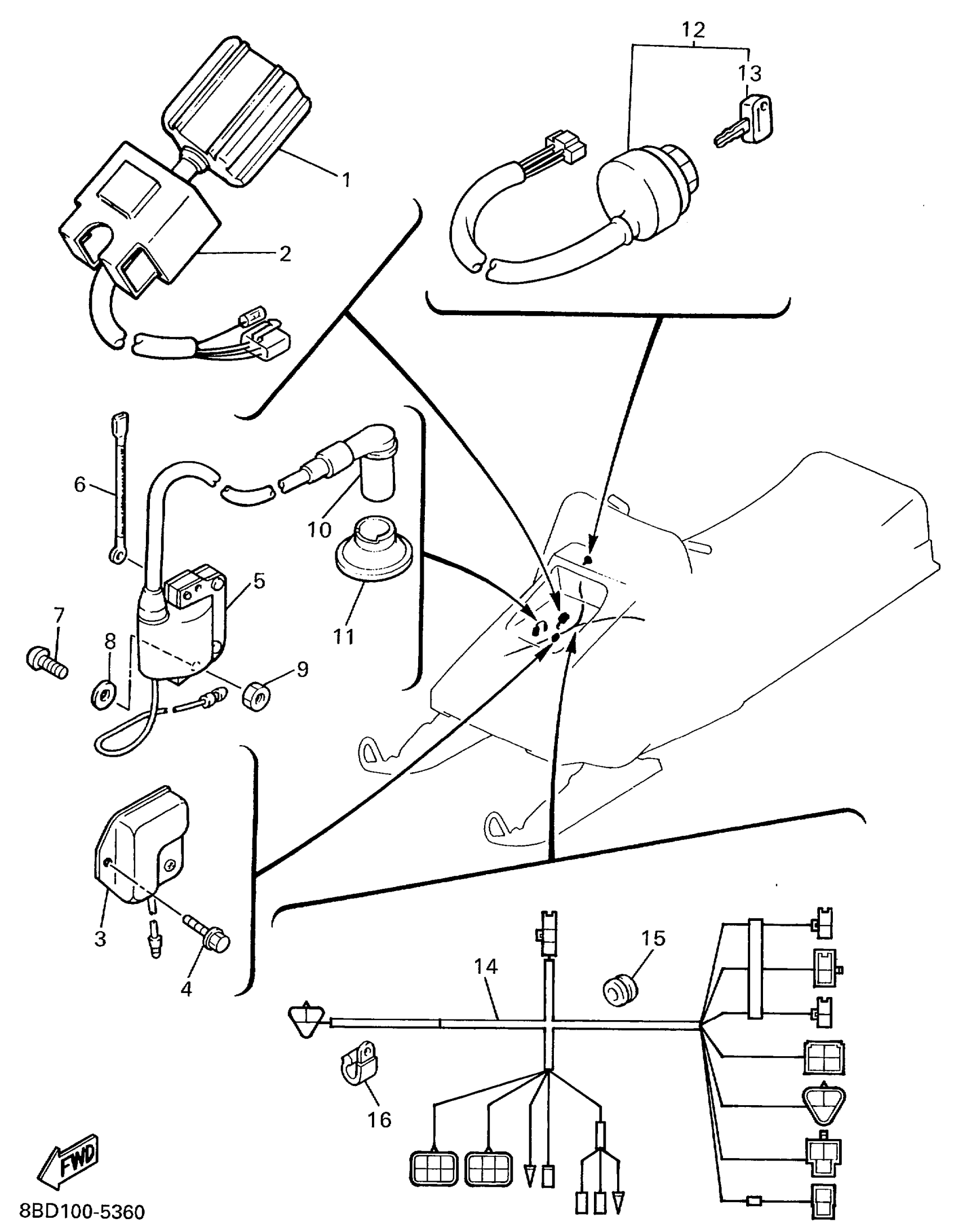

Yamaha BR250TC (BRAVO LT) 8BD6 1999 ELECTRICAL 1 Diagram

Description

Price

C.D.I. UNIT ASSY

8AU-85540-00-00

$189.73

BAND

2A7-85546-00-00

Unavailable

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

BOLT, FLANGE

95817-06012-00

$1.49

IGNITION COIL ASSY

86B-82310-13-00

Unavailable

WIRE, SUB-LEAD

83Y-82318-00-00

$8.36

SCREW, PAN

98507-06040-00

$2.12

WASHER(6TA)

92907-06600-00

$1.49

NUT(6TA)

95317-06600-00

$2.57

PLUG CAP ASSY

85G-82370-20-00

$27.52

SEAL

8G5-82372-00-00

$4.43

MAIN SWITCH ASSY

8R4-82510-20-00

$107.36

CAP, KEY

526-82579-00-00

$6.42

WIRE HARNESS ASSY

8BD-82590-00-00

Unavailable

GROMMET (2N3)

90480-16233-00

$6.48

CLAMP

90465-08028-00

$4.40
