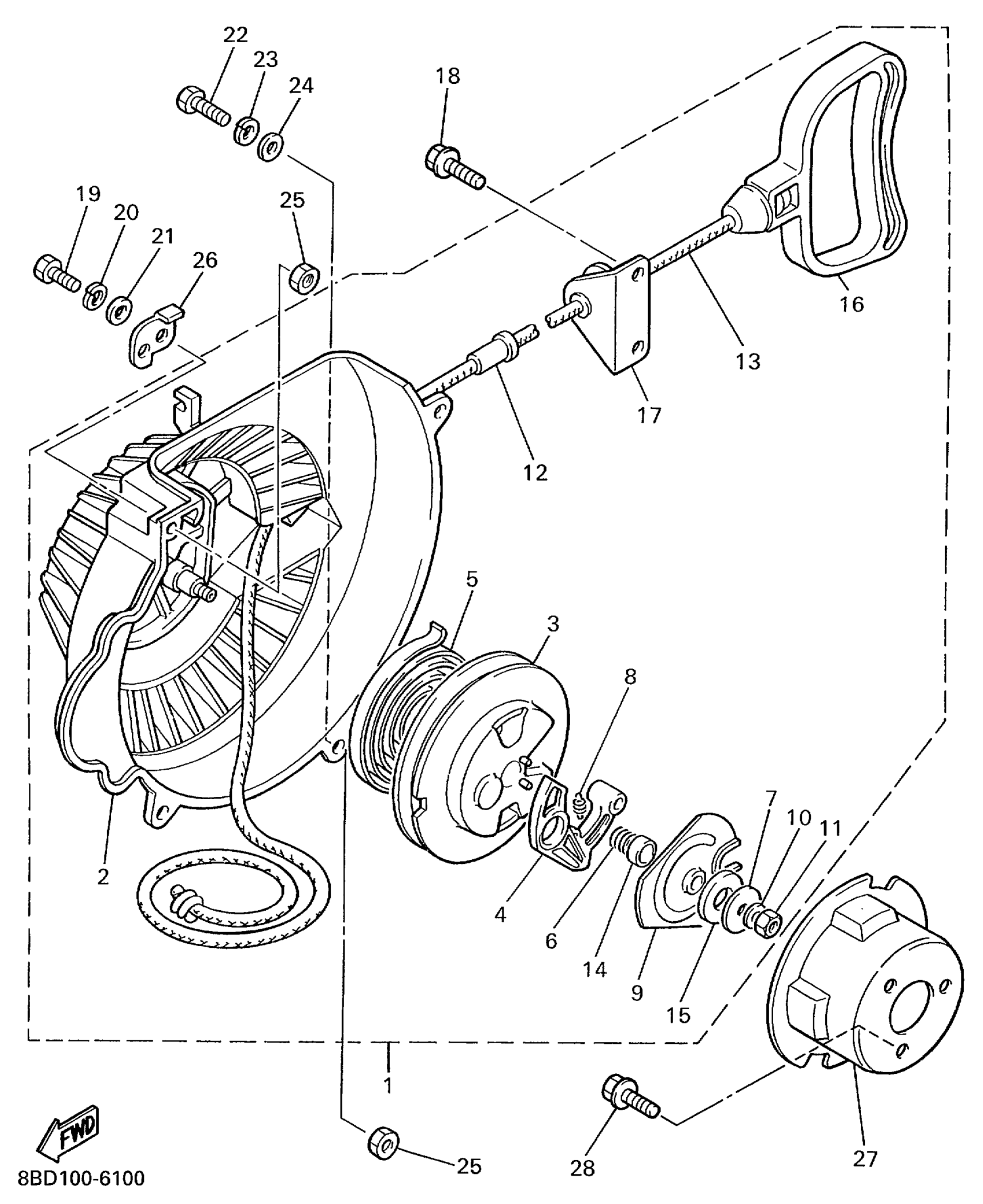

Yamaha BR250TC (BRAVO LT) 8BD6 1999 STARTER Diagram

#

Description
Price

1

STARTER ASSY

8R4-15710-01-00

$324.71

2

CASE, STARTER

8R4-15711-00-00

$133.43

3

DRUM, SEAVE

8F3-15714-01-00

$45.63

4

PAWL, DRIVE

8F3-15741-01-00

$21.05

5

SPRING, STARTER

8F3-15713-01-00

$41.31

6

SPRING, DRIVE PLATE

8F3-15715-00-00

$9.15

7

WASHER, THRUST

8F3-15739-01-00

$11.03

8

SPRING, RETURN

8F3-15734-00-00

$5.12

9

PLATE, DRIVE

8F3-15716-03-00

$23.00

10

WASHER, SPRING

92995-06100-00

$2.99

11

NUT(650)

95380-06700-00

$6.17

12

GUIDE, ROPE

8F3-15758-00-00

$17.09

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$27.50

14

COLLOR

82M-15779-00-00

$6.88

15

WASHER, THRUST

8G5-15739-00-00

$6.94

16

HANDLE, STARTER

8F3-15755-00-00

$23.00

17

. HOLDER, HANDLE

8R4-15788-01-00

Unavailable

18

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

19

BOLT, HEXAGON

97017-06025-00

$2.98

20

WASHER, SPRING

92907-06100-00

$1.00

21

WASHER(6TA)

92907-06600-00

$0.78

22

BOLT, HEXAGON

97017-06030-00

$3.00

23

WASHER, SPRING

92907-06100-00

$1.00

24

WASHER(6TA)

92907-06600-00

$0.78

25

NUT(6TA)

95317-06600-00

$2.69

26

STOPPER, SHROUD

8R4-77118-00-00

$11.63

27

PULLEY, STARTER

81L-15723-00-00

$41.92

28

BOLT, FLANGE

95817-08012-00

$3.98
