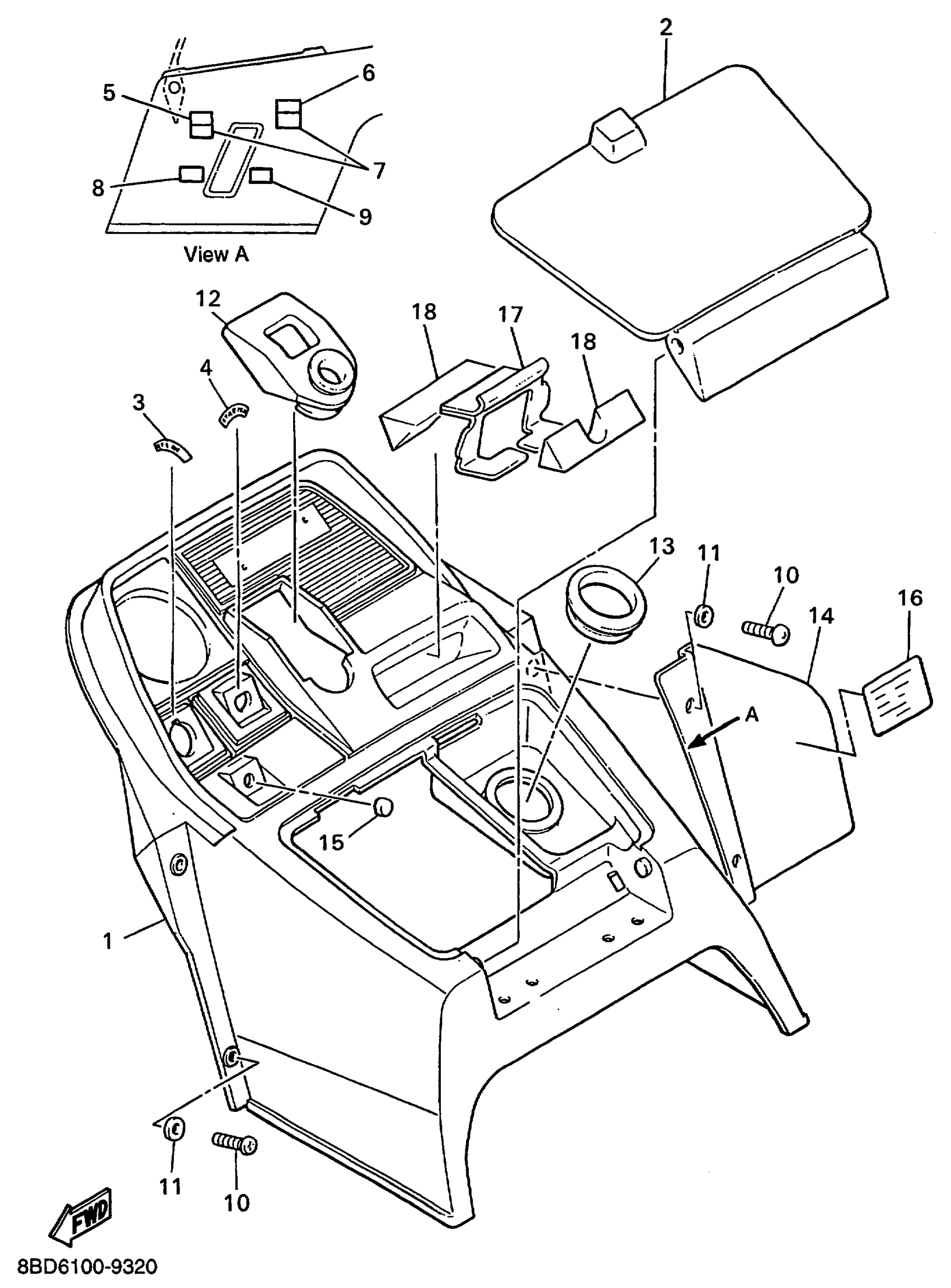

Yamaha BR250TC (BRAVO LT) 8BD6 1999 INSTRUMENT PANEL Diagram

#

Description
Price

1

PANEL, INSTRUMENT

8Y1-77711-01-00

Unavailable

2

PANEL, INSTRUMENT

8R4-77712-00-00

Unavailable

3

INDICATOR 1

8K2-77741-01-00

Unavailable

4

INDICATOR 2

8K4-77742-00-00

Unavailable

5

INDICATOR 2

87A-77742-00-00

$2.37

6

INDICATOR 3

87A-77743-00-00

Unavailable

7

INDICATOR 1

87A-77741-00-00

$2.37

8

INDICATOR 5

87A-77745-00-00

Unavailable

9

INDICATOR 4

87A-77744-00-00

Unavailable

10

SCREW, PAN HEAD(JJ6)

98507-05016-00

$1.40

11

WASHER, PLATE 8067717800

90201-05029-00

$5.12

12

GROMMET, INSTRUMENT PANEL

8R4-77740-00-00

$17.14

13

GROMMET (8R4)

90480-53313-00

$7.05

14

BRACKET 1

8U0-77721-00-00

Unavailable

15

GROMMET 122154860000

90480-12012-00

$4.70

16

LABEL, WARNING 2

8Y1-77762-70-00

$7.12

17

BRACKET 1

80F-23881-00-00

$45.80

18

SPACER

80F-23858-00-00

Unavailable
