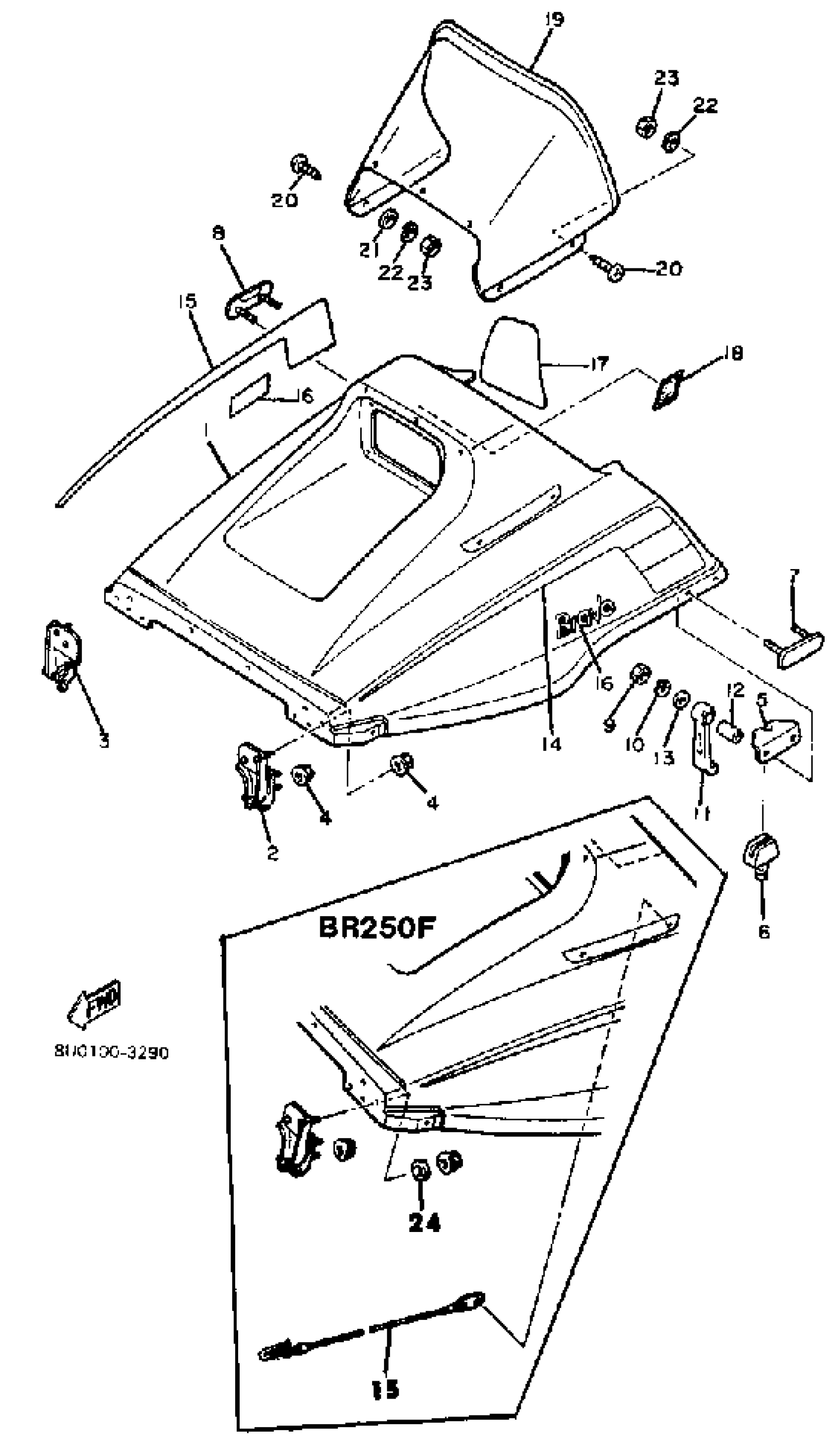

Find the part on the Shroud - Windshield BR250F - G diagram for your 1982 Yamaha BR250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha BR250F Shroud - Windshield BR250F - G Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

8R4-77111-00-00

1
Out of stock

2

HINGE ASSY

8R4-77140-00-00

—
Out of stock

3

HINGE ASSY 2

8R4-7714A-00-00

—
Out of stock

4

NUT, FLANGE(7NB)

95780-06500-00

1
Out of stock

5

CLAMP 2

8R4-77136-00-00

1
Out of stock

6

STOPPER

8R4-77188-00-00

1
Out of stock

7

PLATE 1

8R4-77185-01-00

1
Out of stock

8

PLATE 2

(8R4-77186-00-00)

1
Out of stock

9

NUT, HEXAGON

95380-06600-00

1
Out of stock

10

WASHER, SPRING

92995-06100-00

1
Out of stock

11

BODY, LATCH 1

8R4-77171-00-00

1
Out of stock

12

COLLAR 849833160000

90387-06027-00

1
Out of stock

13

WASHER, PLATE

90201-06380-00

1
Out of stock

14

ORNAMENT 1

8R4-77163-00-00

1
Out of stock

14

ORNAMENT 1

8U0-77163-00-00

1
Out of stock

15

ORNAMENT 2

8R4-77164-00-00

1
Out of stock

15

ORNAMENT 2

8U0-77164-00-00

1
Out of stock

16

EMBLEM 1

8R4-77141-00-00

1
Out of stock

16

EMBLEM 1

8U0-77141-00-00

1
Out of stock

17

LABEL, WARNING

8R4-77458-00-00

1
Out of stock

18

INDICATOR 3

(8R4-77743-00-00)

1
Out of stock

19

WINSHIELD

99999-02220-00

1
Out of stock

20

SCREW, TAPPING (8R4)

90164-05007-00

—
Out of stock

21

. WASHER, PLAIN

92990-05200-00

1
Out of stock

22

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

23

NUT, HEXAGON (663)

95380-05600-00

—
Out of stock

24

YBS66-6 WASHER, PLAIN

92990-06200-00

—
Out of stock

25

STOPPER, SHROUD

8R4-77118-00-00

—
Out of stock

25

GRAPHIC SET

(8R4-W0070-00-00)

1
Out of stock

25

GRAPHIC SET

(8U0-W0070-00-00)

1
Out of stock
