1982 Yamaha BR250F Crankcase BR250F - G Diagram

← All diagrams

Find the part on the Crankcase BR250F - G diagram for your 1982 Yamaha BR250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

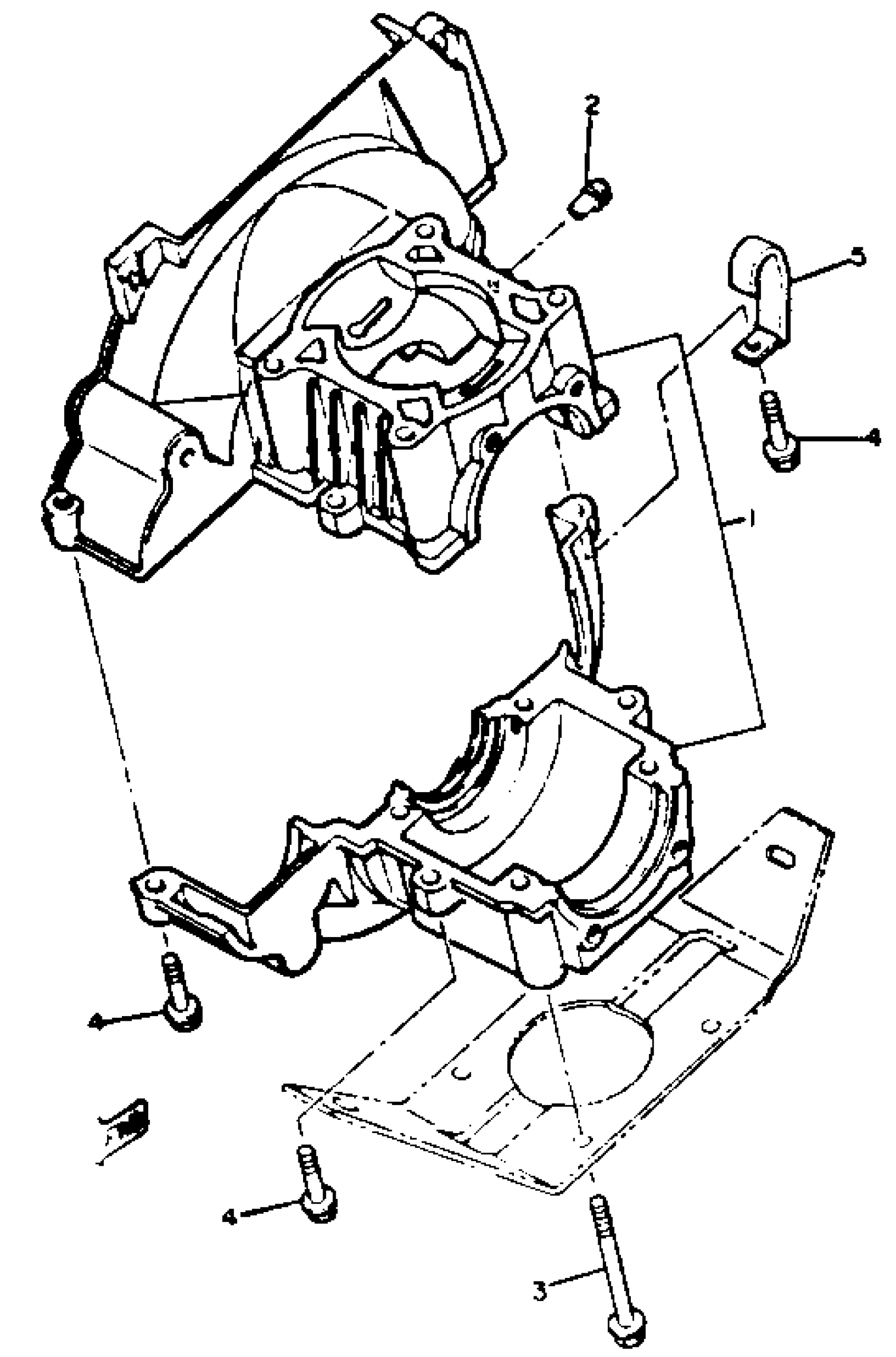

1982 Yamaha BR250F Crankcase BR250F - G Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

8R4-15100-01-00

—
Out of stock

2

JOINT, BREATHER

J38-11116-00-00

1

$2.77

In stock

3

BOLT, FLANGE(JF2)

95817-08080-00

1

$3.37

In stock

4

BOLT, FLANGE(6TA)

95817-08030-00

1

$6.17

In stock

5

CLAMP(4MX)

90465-06376-00

1

$7.08

In stock
