1982 Yamaha BR250F Seat BR250F - G Diagram

← All diagrams

Find the part on the Seat BR250F - G diagram for your 1982 Yamaha BR250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

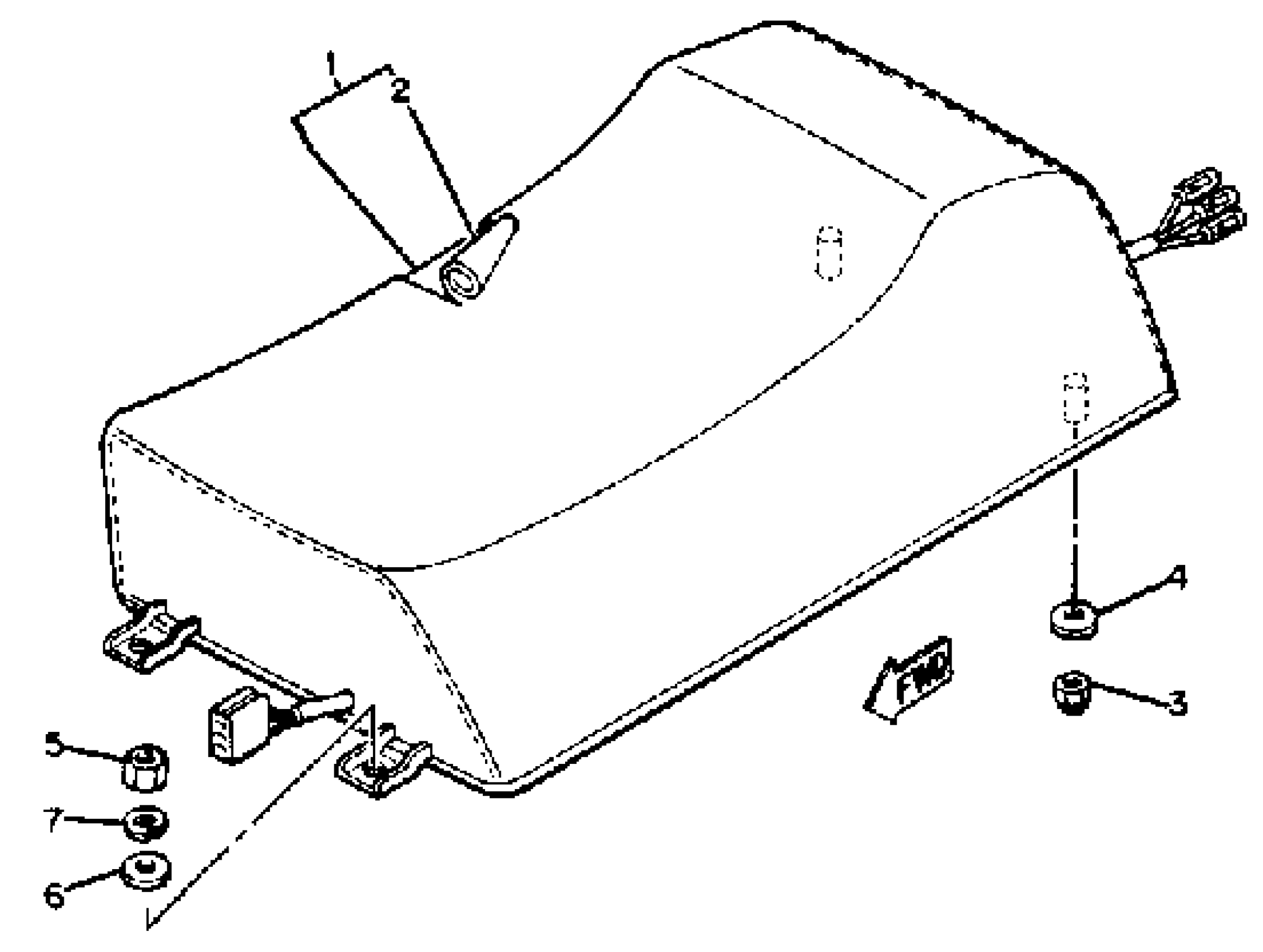

1982 Yamaha BR250F Seat BR250F - G Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

. COVER, SINGLE SEAT

82R-24711-00-00

1
Out of stock

3

NUT, NYLON

95717-08300-00

1
Out of stock

4

WASHER, PLATE (4W3)

90201-086A3-00

1
Out of stock

5

NUT, HEXAGON

95380-06600-00

1
Out of stock

6

WASHER, PLATE

90201-06020-00

1
Out of stock

7

WASHER, SPRING

92995-06100-00

1
Out of stock

24

SINGLE SEAT ASSEMBLY

88C-24710-00-00

1
Out of stock
