1982 Yamaha BR250F Frame BR250F Diagram

← All diagrams

Find the part on the Frame BR250F diagram for your 1982 Yamaha BR250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

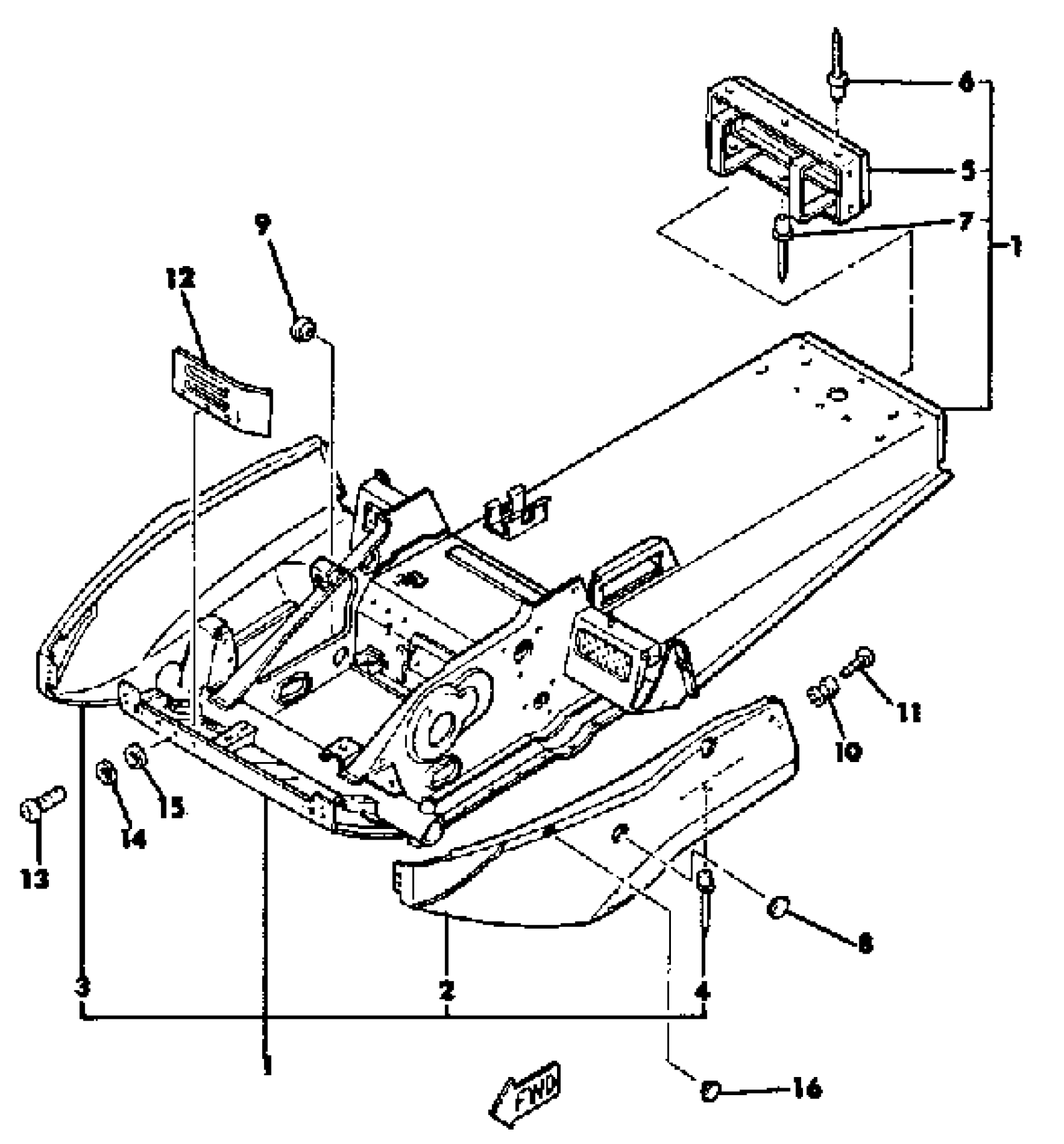

1982 Yamaha BR250F Frame BR250F Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

8R4-21910-00-00

1
Out of stock

2

. HOOD 1

8R4-21982-00-00

1
Out of stock

3

. HOOD 2

8R4-21983-00-00

1
Out of stock

4

RIVET, BLIND

90267-48060-00

1

$2.00

In stock

5

. BRACKET, TAIL LITE

8R4-21933-00-00

1
Out of stock

6

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

7

RIVET, BLIND

90267-48060-00

1

$2.00

In stock

8

PLUG (8K4)

90338-40099-00

1

$11.89

In stock

9

GROMMET 117217730000

90480-40047-00

1

$3.91

In stock

10

. HOLDER, LATCH

8M6-77175-00-00

1

$12.72

In stock

11

SCREW, BINDING

98907-06030-00

1

$5.94

In stock

12

COVER 1

8R4-2198F-00-00

1
Out of stock

13

SCREW, PAN

98517-06012-00

1

$3.14

In stock

14

WASHER, SPRING

92907-06100-00

1
Out of stock

15

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

16

PLUG (8R4)

90338-09127-00

—

$3.74

In stock
