1982 Yamaha BR250F Bumper BR250F - G Diagram

← All diagrams

Find the part on the Bumper BR250F - G diagram for your 1982 Yamaha BR250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

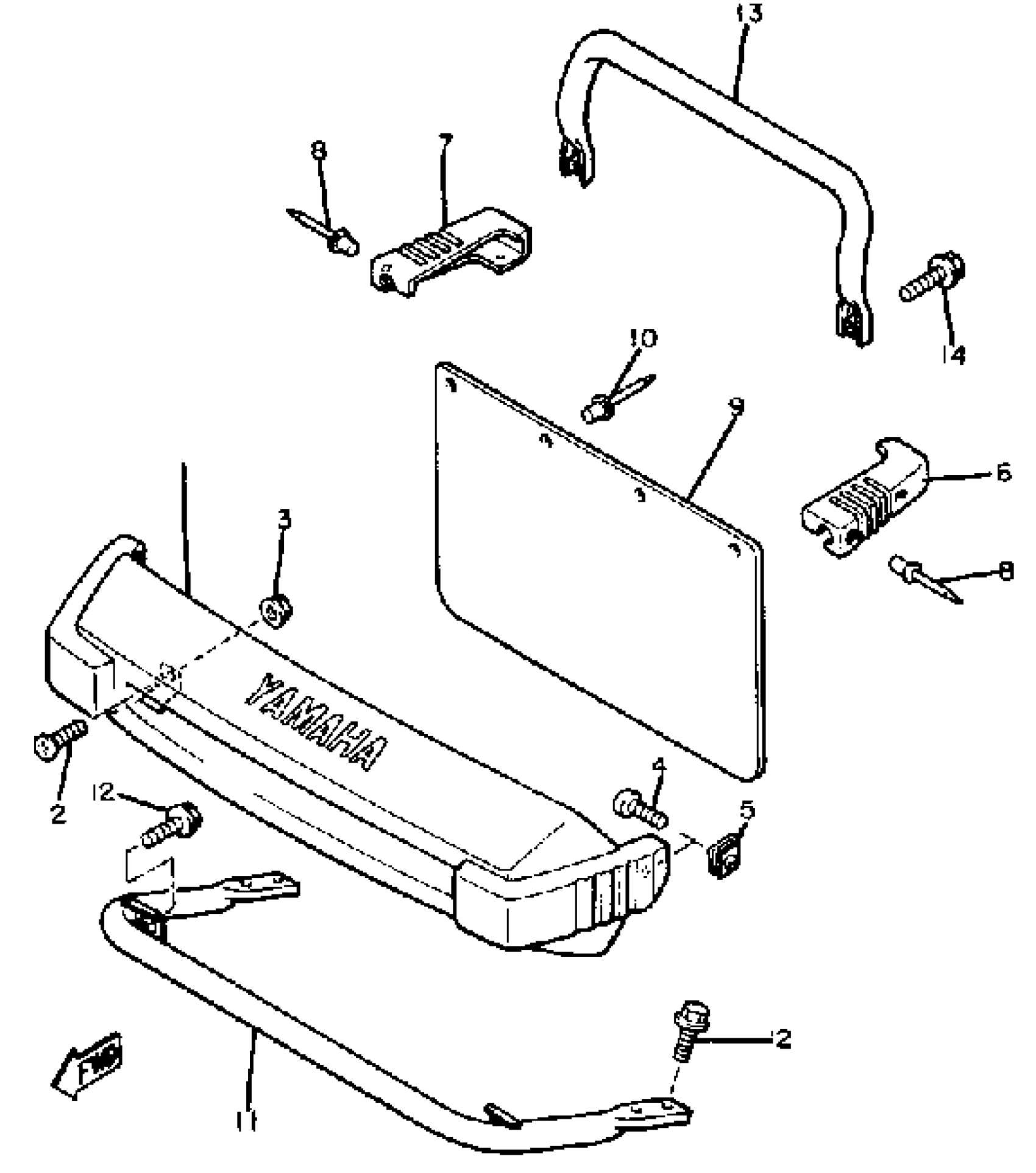

1982 Yamaha BR250F Bumper BR250F - G Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

81X-77511-00-00

—

$160.43

In stock

2

SCREW, BINDING

98907-06016-00

1

$7.14

In stock

3

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

4

SCREW, BINDING

98907-05012-00

1
Out of stock

5

NUT, SPRING (2E9)

90183-05013-00

1

$7.23

In stock

6

BUMPER, REAR 3

8R4-77543-00-00

1
Out of stock

7

BUMPER, REAR 4

8R4-77544-00-00

1
Out of stock

8

RIVET, BLIND (8R4)

90267-48088-00

1

$3.11

In stock

9

FLAP

88C-77595-00-00

1
Out of stock

10

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

11

BUMPER, FRONT 3

8R4-77513-00-00

—

$93.11

In stock

12

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

13

BUMPER, REAR 1

8R4-77541-00-00

1
Out of stock

14

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock
