1995 Kawasaki Bayou 400 4X4 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1995 Kawasaki Bayou 400 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

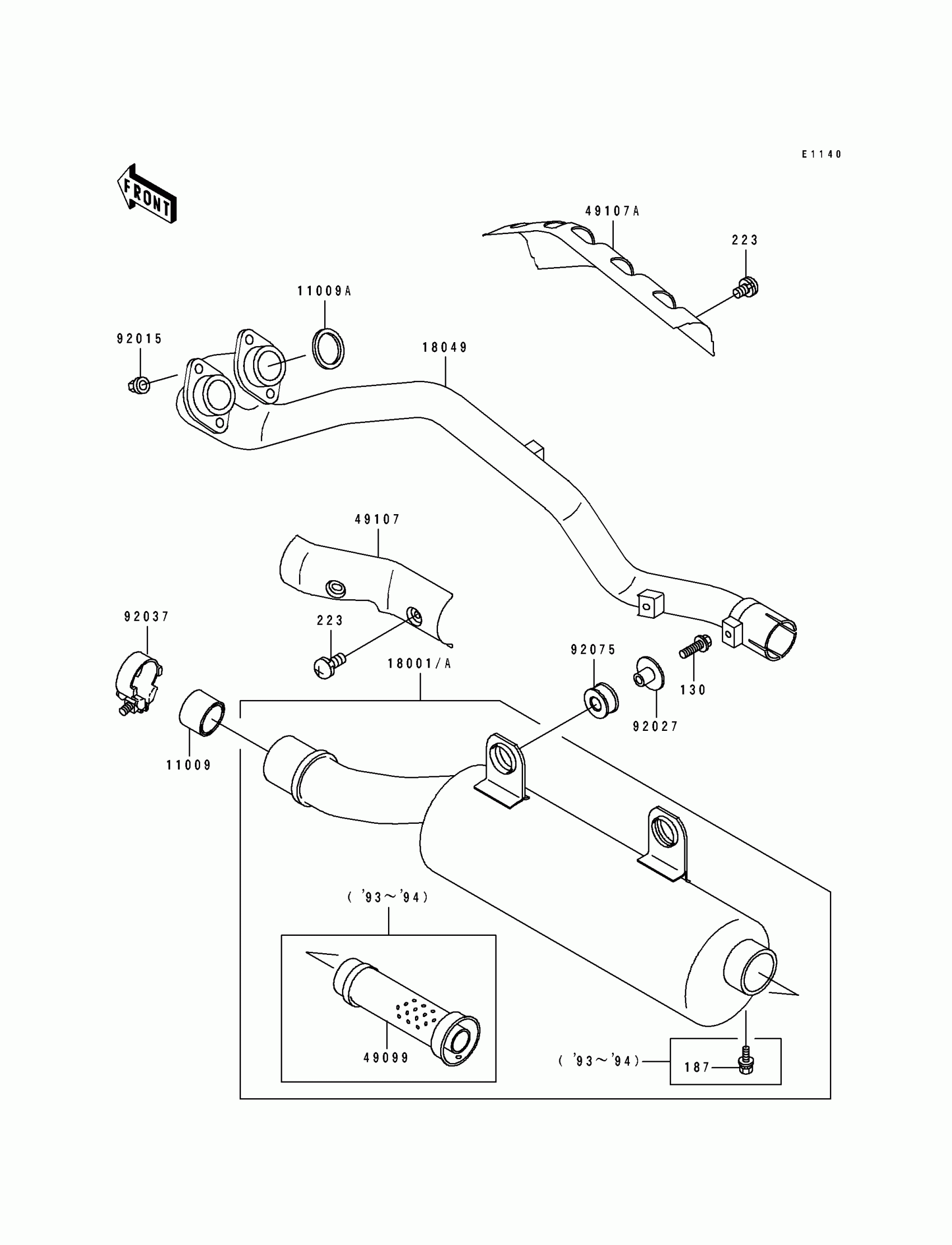

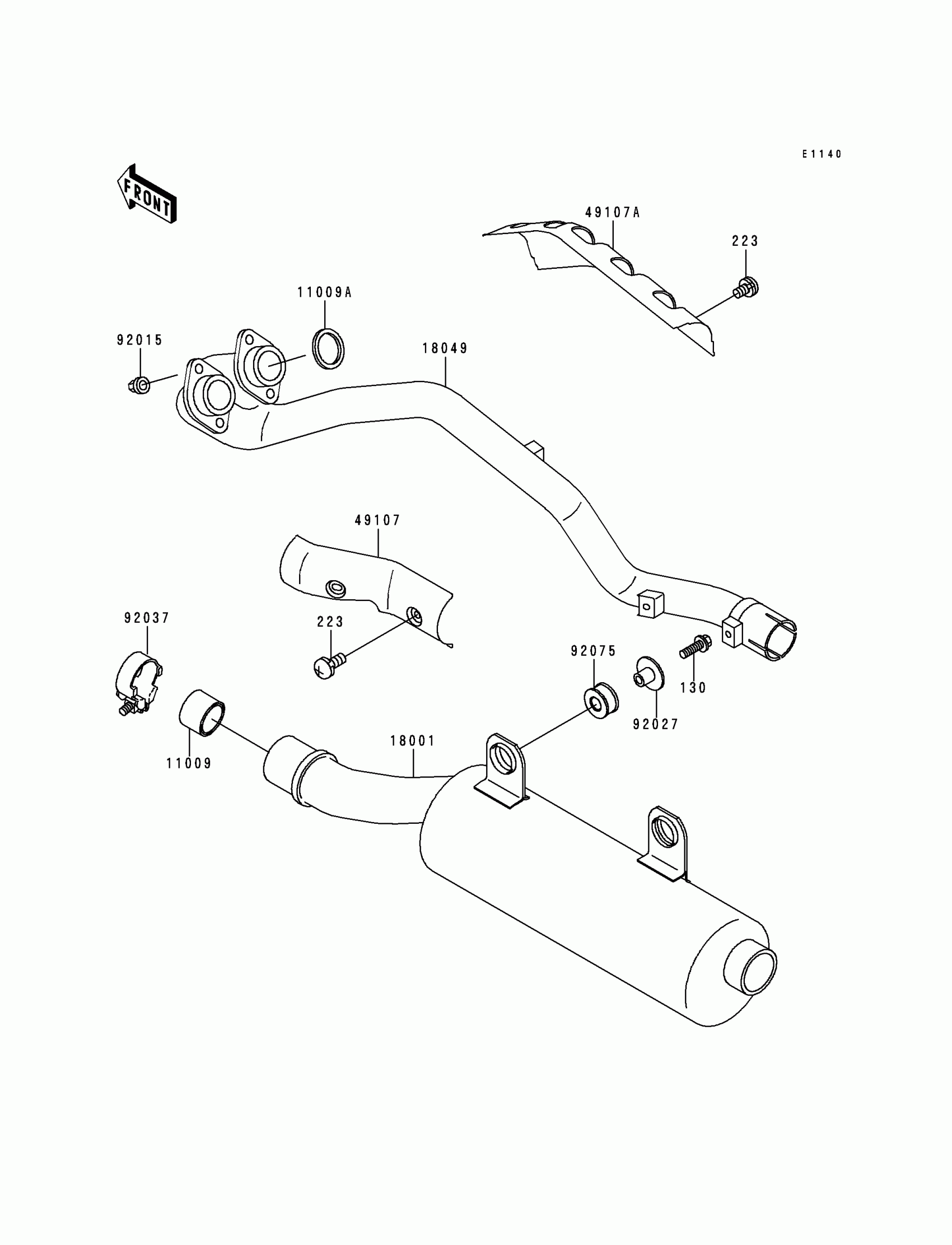

1995 Kawasaki Bayou 400 4X4 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$21.24

In stock

11009A

1

$6.55

In stock

18001A

MUFFLER

18001-1895

1
Out of stock

18049

PIPE-EXHAUST

18049-1580

1

$336.21

In stock

49107

COVER-EXHAUST PIPE,RR

49107-1087

1
Out of stock

49107A

1

$26.24

In stock

92015

NUT,8MM

92015-1402

1

$3.72

In stock

92027

COLLAR,MUFFLER

92027-1981

1

$8.53

In stock

92037

CLAMP,42MM

92037-1349

1

$10.26

In stock

92075

DAMPER,MUFFLER

92075-1809

1

$6.66

In stock

130

BOLT-FLANGED,8X25,BLACK

130J0825

1
Out of stock

223

1

$3.28

In stock
