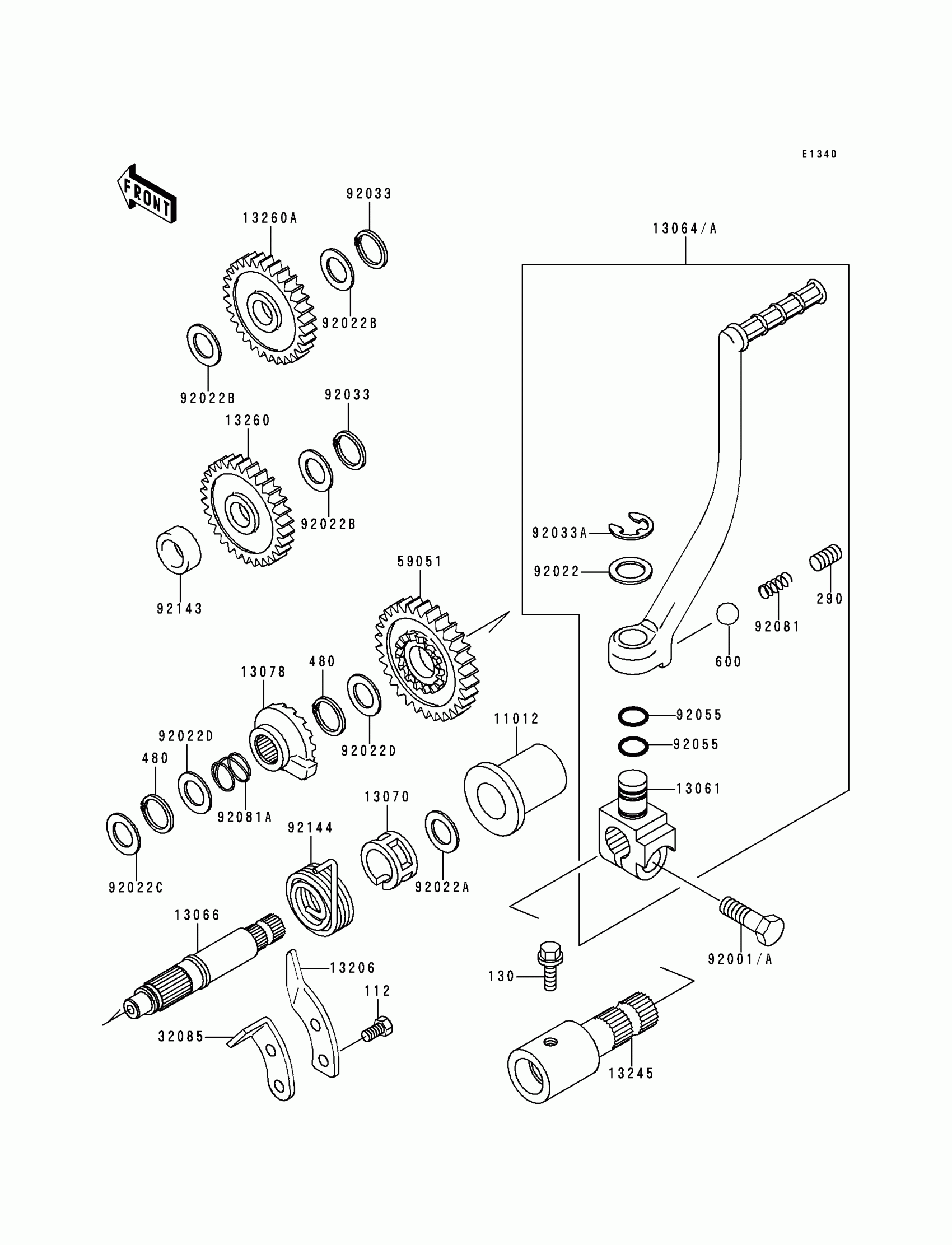

Kawasaki Bayou 400 4X4 Kickstarter Mechanism Diagram

#

Description
Price

11012

CAP,KICKSTARTER

11012-1801

Unavailable

13061

BOSS,KICK PEDAL

13061-1189

$83.66

13064

LEVER-ASSY-KICK

13064-1127

Unavailable

13064A

LEVER-ASSY-KICK

13064-1127

Unavailable

13066

SHAFT-KICK

13066-1079

Unavailable

13070

GUIDE,KICK SPRING

13070-011

$9.49

13078

RATCHET

13078-1053

$79.27

13206

GUIDE-KICK

13206-1056

$9.41

13245

SHAFT-COMP-KICK

13245-1051

Unavailable

13260

GEAR,KICKSTARTER,IDLE,23T

13260-1221

Unavailable

13260A

GEAR,KICKSTARTER,IDLE,29T

13260-1222

Unavailable

32085

STOPPER

32085-1237

$5.78

59051

GEAR-SPUR,KICKSTARTER,31T

59051-1253

Unavailable

92001

BOLT,8X28

92001-1042

$5.81

92001A

BOLT,8X28

92001-1042

$5.81

92022

WASHER,15.2X20X1

92022-1019

$4.61

92022A

WASHER,18.5X23X1.2

92022-118

$4.17

92022B

WASHER,17.3X22X0.5

92022-1799

$2.99

92022C

WASHER,12.3X20X0.5

92022-269

$0.98

92022D

WASHER,16.8X22X0.5

92022-315

$4.67

92033

RING-SNAP

92033-032

$3.78

92033A

RING-SNAP,10MM

92033-1166

$2.97

92055

RING-O,10X1.5

92055-061

$3.65

92081

SPRING,KICK PEDAL

92081-020

$3.25

92081A

SPRING,RATCHET

92081-122

$6.70

92143

COLLAR,17X23X5

92143-1525

Unavailable

92144

SPRING,KICKSTARTER

92144-1001

$25.76

112

BOLT-UPSET

112G0618

Unavailable

130

BOLT-FLANGED

130J0610

Unavailable

290

SCREW-SET-SOCKET,8X8

290Q0808

$4.25

480

CIRCLIP-TYPE-C,16MM

480J1600

$3.29

600

BALL-STEEL,1/4

600A0800

$0.59
