1995 Kawasaki Bayou 400 4X4 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1995 Kawasaki Bayou 400 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

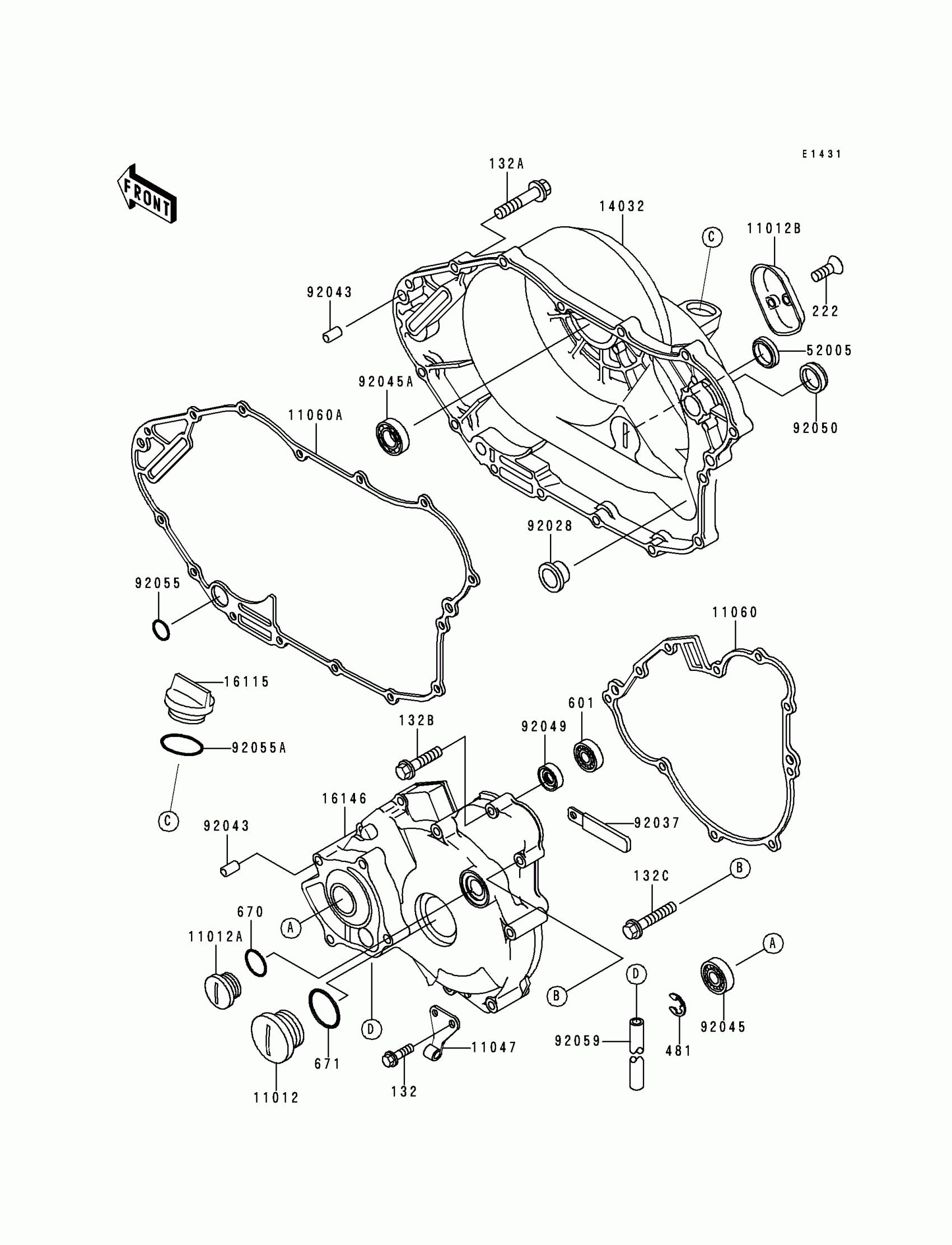

1995 Kawasaki Bayou 400 4X4 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1362

1
Out of stock

11012A

CAP,TOP MARK

11012-1363

1
Out of stock

11012B

CAP,CLUTCH RELEASE

11012-1644

1
Out of stock

11047

BRACKET,CABLE

11047-1494

1
Out of stock

11060

GASKET,GENERATOR

11060-1208

1
Out of stock

11060A

GASKET,CLUTCH COVER

11060-1209

1
Out of stock

14032

COVER-CLUTCH

14032-5021

1

$237.42

In stock

16115

CAP-OIL FILLER

16115-1009

1
Out of stock

16146

COVER-ASSY,GENERATOR

16146-1155

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1009

1
Out of stock

92028

BUSHING

92028-1544

1
Out of stock

92037

CLAMP,L=45

92037-1539

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92045

BEARING-BALL

92045-1206

1
Out of stock

92045A

BEARING-BALL,6303RUED2C3

92045-1256

1
Out of stock

92049

SEAL-OIL,SC10227

92049-1157

1
Out of stock

92050

SEAL-OIL

92050-078

1
Out of stock

92055

RING-O,OD=18

92055-048

1
Out of stock

92055A

RING-O,31.5X2.6

92055-049

1
Out of stock

92059

PIPE-FUEL

92059-080

1
Out of stock

92150

BOLT,6X35

92150-1600

1
Out of stock

92150A

BOLT,6X50

92150-1601

1
Out of stock

92150B

BOLT,6X30

92150-1602

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

222

SCREW-CSK-RD-CROS

222C0512

1
Out of stock

481

CIRCLIP-TYPE-C,22MM

481J2200

1
Out of stock

601

BEARING-BALL

601A6000

1
Out of stock

670

O RING,18MM

670B2018

1
Out of stock

671

O RING,40MM

671B2540

1
Out of stock
