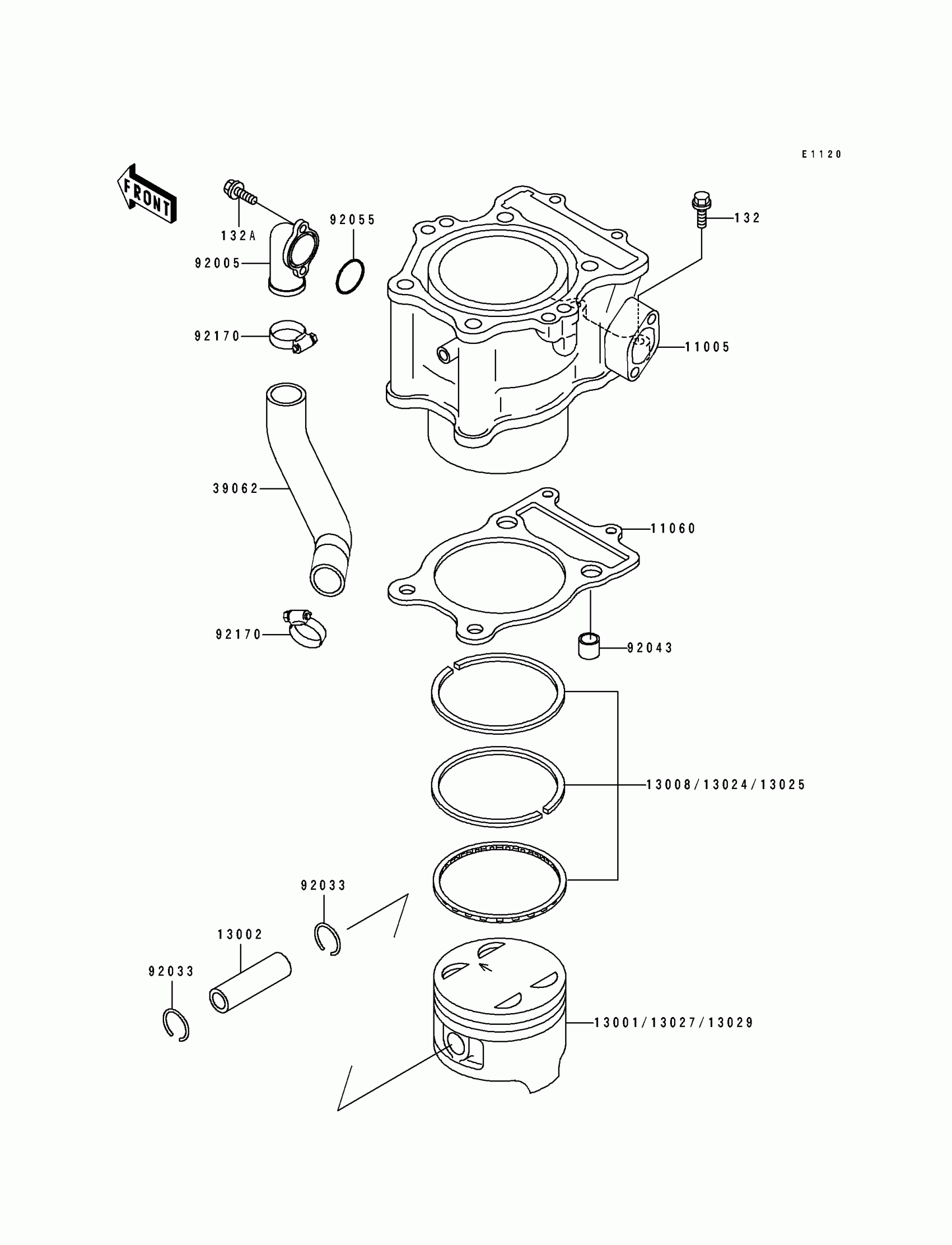

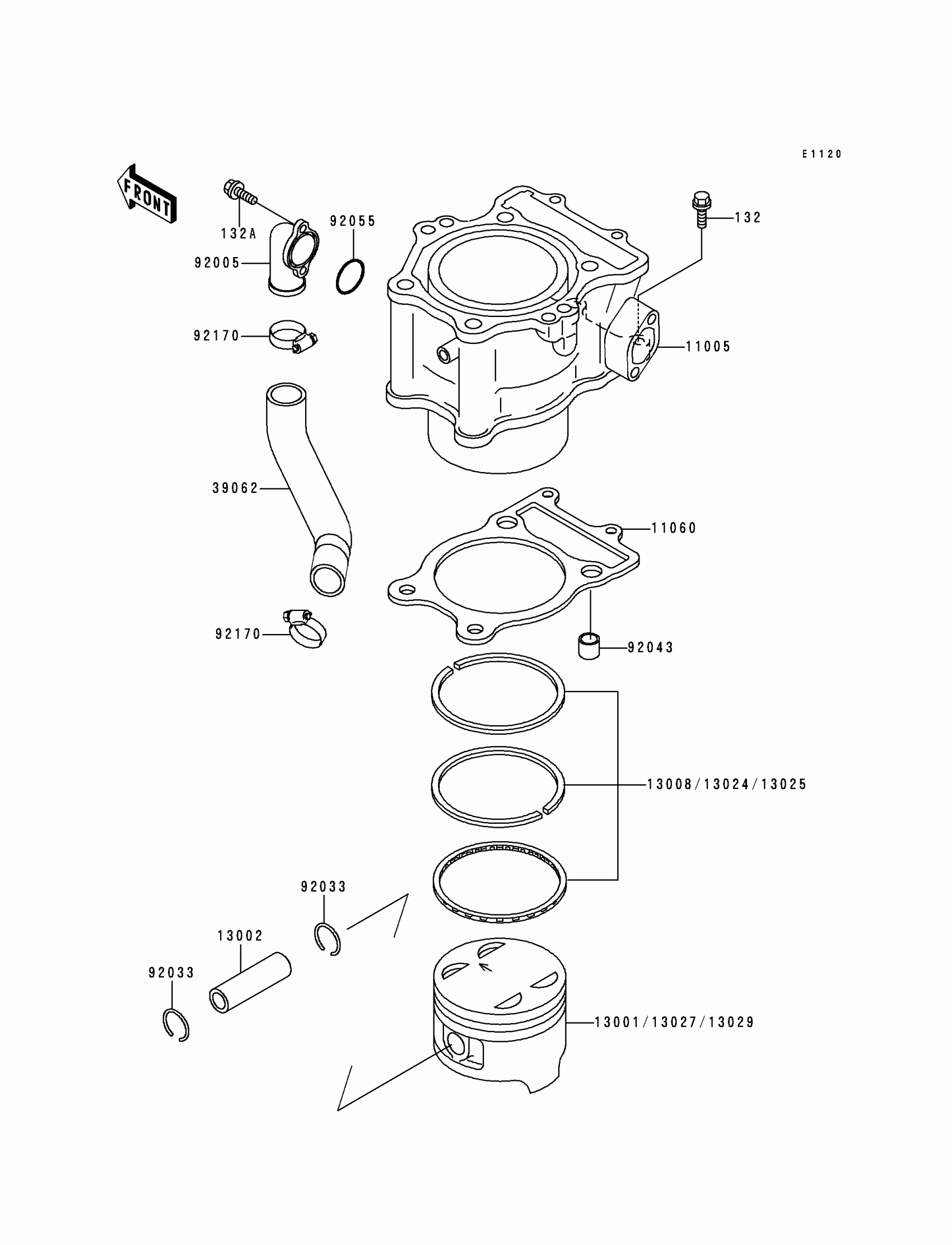

Kawasaki Bayou 400 4X4 Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-1673

$662.86

11060

GASKET,CYLINDER BASE

11060-1205

$14.62

13001

PISTON-ENGINE,STD

13001-1362

Unavailable

13002

PIN-PISTON

13002-1056

$23.49

13008

RING-SET-PISTON,STD

13008-1142

$93.64

13024

RING-SET-PISTON LL,O/S 1.00

13024-1090

$91.50

13025

RING-SET-PISTON L,O/S 0.50

13025-1114

$93.64

13027

PISTON-ENGINE LL,O/S 1.00

13027-1167

$152.37

13029

PISTON-ENGINE L,O/S 0.50

13029-1209

$152.37

39062

HOSE-COOLING,PUMP-CYLINDER

39062-1483

Unavailable

92005

FITTING,CYLINDER

92005-1145

$33.58

92033

RING-SNAP

92033-1188

$2.72

92043

PIN,11X14X12.3

92043-1266

$0.86

92055

RING-O,27.7X2.4

92055-091

$4.67

92170

CLAMP

92170-1497

$12.75

132

BOLT-FLANGED-SMALL

132G0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X16

132J0616

Unavailable
