1991 Kawasaki Bayou 300 Step Diagram

← All diagrams

Find the part on the Step diagram for your 1991 Kawasaki Bayou 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

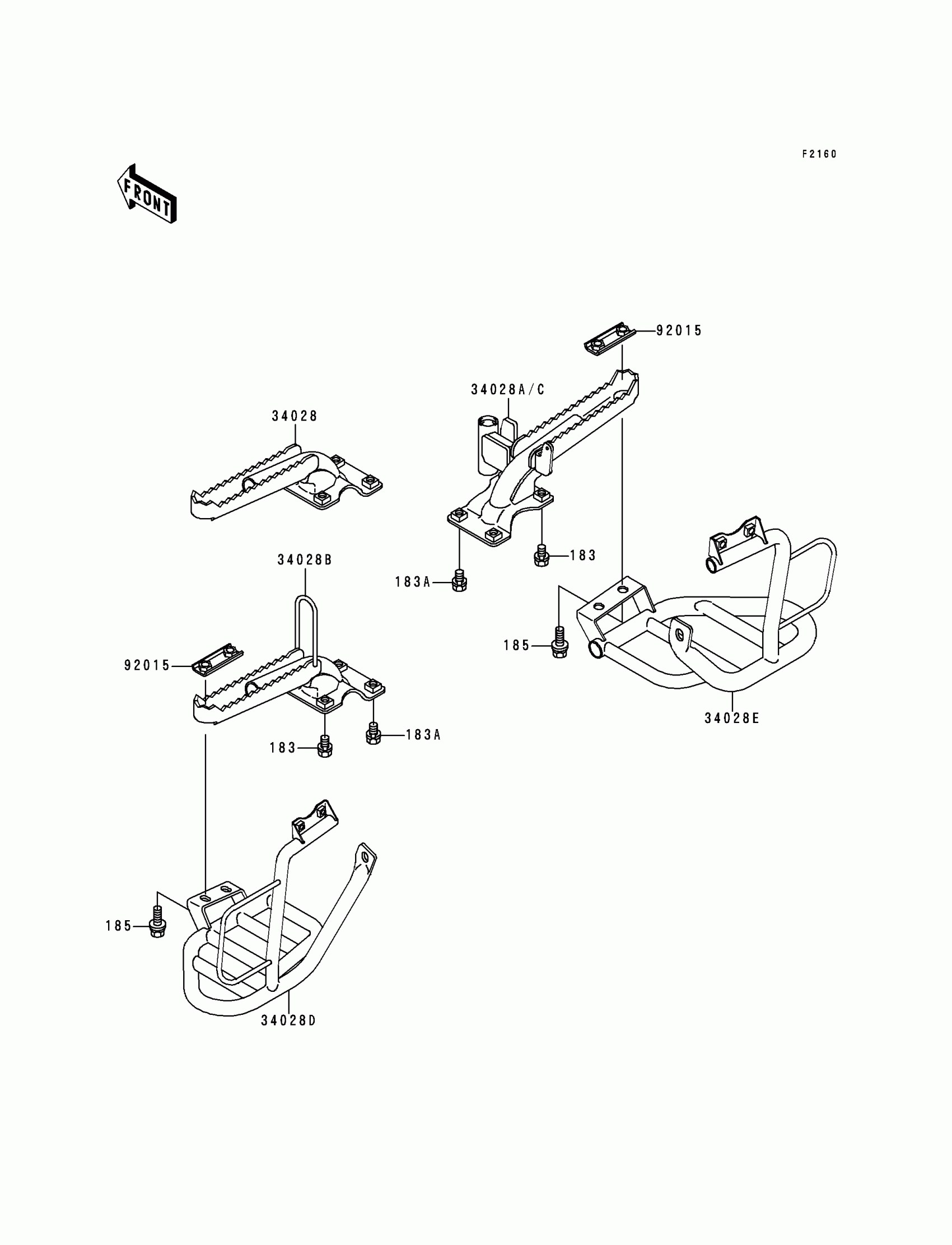

1991 Kawasaki Bayou 300 Step Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

183

1

$0.76

In stock

183A

BOLT-UPSET-WS-SMALL

183H0818

1
Out of stock

185

1

$4.92

In stock

34028B

STEP

34028-1271

1

$94.49

In stock

34028C

STEP,RH

34028-1279

1

$33.13

In stock

34028D

STEP,FOOT BOARD,LH

34028-1310

1

$75.41

In stock

34028E

STEP,FOOT BOARD,RH

34028-1311

1

$78.02

In stock

92015

NUT

92015-1732

1
Out of stock
