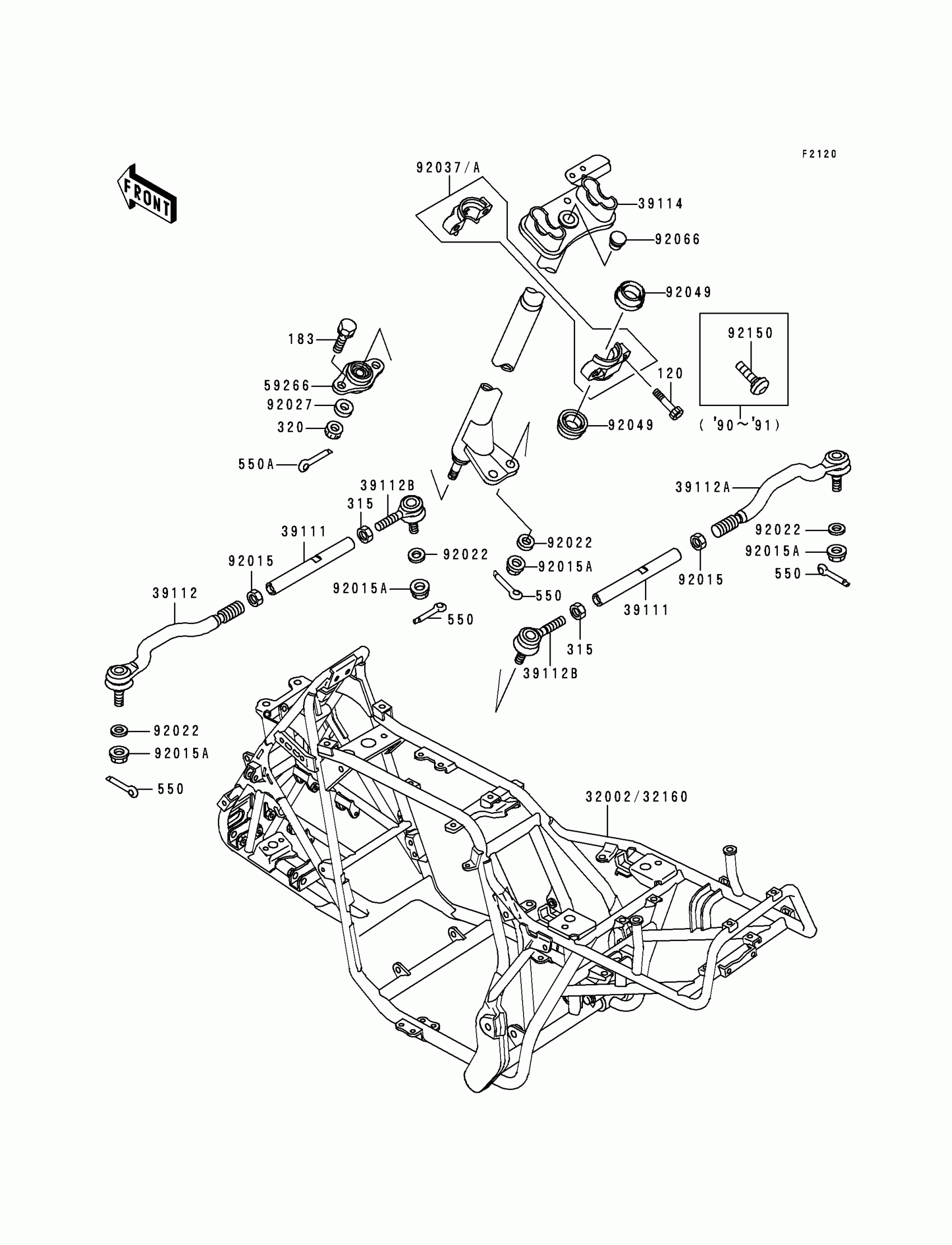

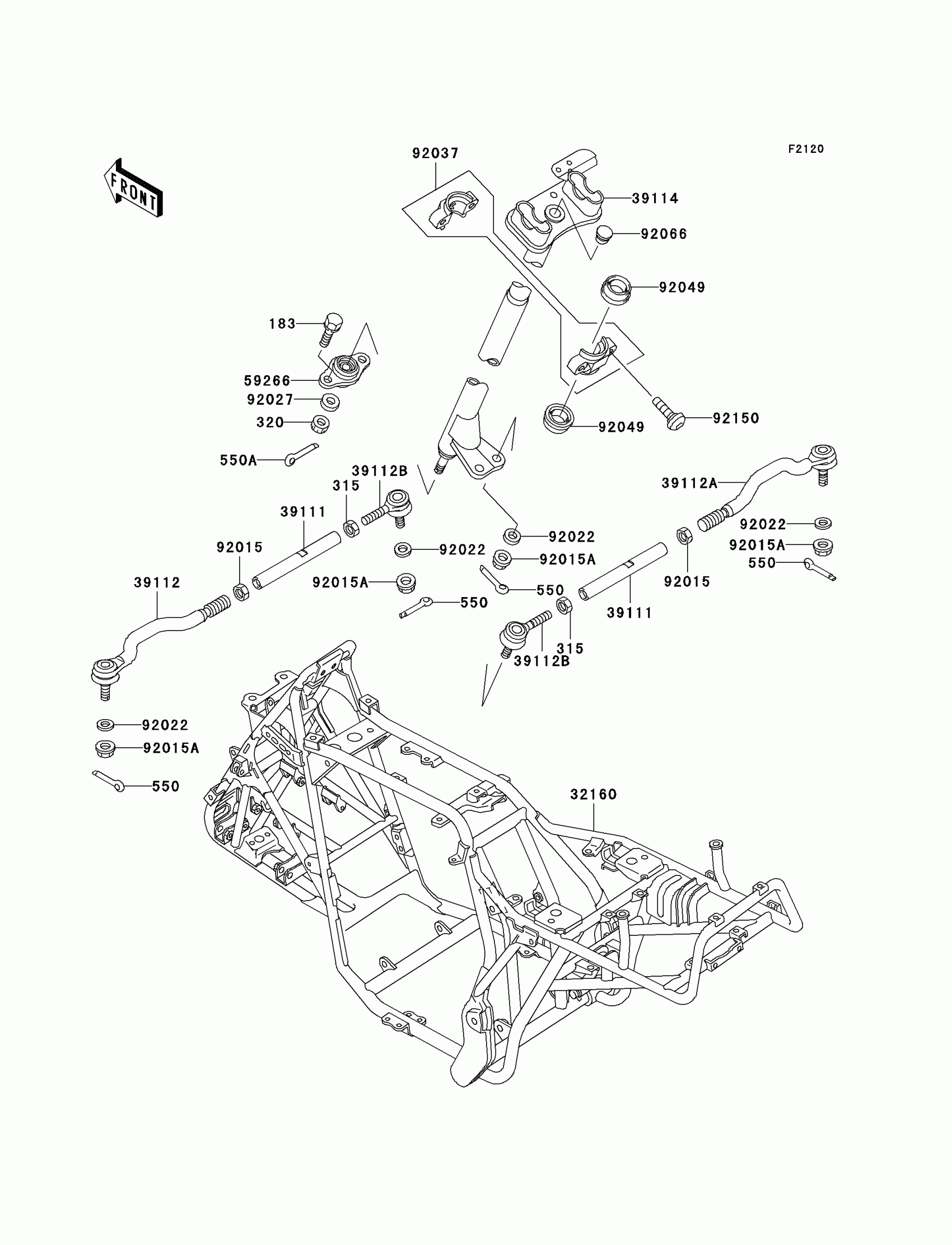

Kawasaki Bayou 300 Frame Diagram

#

Description
Price

183

BOLT-UPSET-WS-SMALL

183G0822

Unavailable

315

NUT-HEX-FINE

315C1200

Unavailable

320

NUT-CASTLE

320H1000

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

550A

PIN-COTTER,2.5X18

550D2518

$0.61

32160

FRAME-COMP

32160-1040

$1,035.55

39111

ROD-TIE

39111-1079

$11.03

39112

RODEND-TIE

39112-1055

$151.28

39112A

RODEND-TIE

39112-1056

$151.28

39112B

RODEND-TIE

39112-1057

$95.68

39114

SHAFT-COMP-STRG

39114-1066

$249.05

59266

JOINT-BALL

59266-1066

$144.36

92015

NUT,12MM,LEFT SCREW

92015-1532

Unavailable

92015A

NUT,LOCK,FLANGED,10MM

92015-1717

$7.54

92022

WASHER,10.5X20X1

92022-239

$2.99

92027

COLLAR,10X21.3X7

92027-1817

$14.34

92037A

CLAMP,STEERING SHAFT

92037-1975

$70.85

92049

SEAL-OIL,SR7 25 34 7.8 NS

92049-1278

$5.58

92066

PLUG

92066-1220

$4.39

92150

BOLT

92150-1058

$5.58
