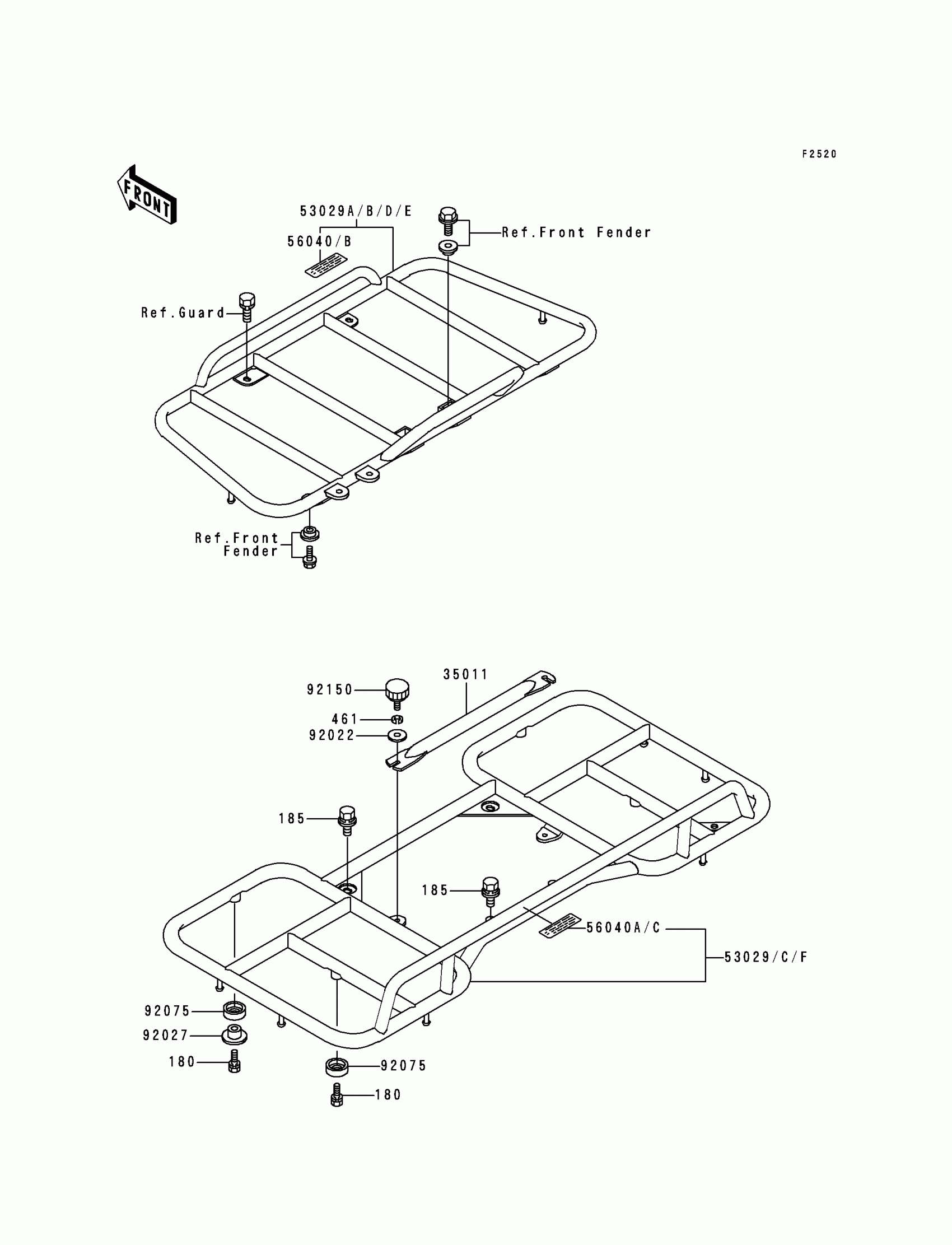

Kawasaki Bayou 300 Carrier Diagram

Description

Price

180

BOLT-UPSET-WS

180D0618

Unavailable

185

BOLT-UPSET-WSP-SMALL,8X16

185C0816

$4.10

461

WASHER-SPRING,6MM,BLACK

461K0600

Unavailable

35011

STAY,REAR CARRIER

35011-1388

$18.81

56040B

LABEL-WARNING,MAXIMUM LOAD

56040-1259

$2.03

56040C

LABEL-WARNING,MAXIMUM LOAD

56040-1260

$2.03

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.53

92027

COLLAR

92027-1906

$7.49

92075

DAMPER

92075-1763

$7.49

92150

BOLT,6MM

92150-1067

$7.14

53029C

CARRIER,RR

53029-1116

$241.72

53029D

CARRIER,FR

53029-1117

Unavailable

53029E

CARRIER,FR

53029-1121

$259.39

53029F

CARRIER,RR

53029-1123

$205.24
