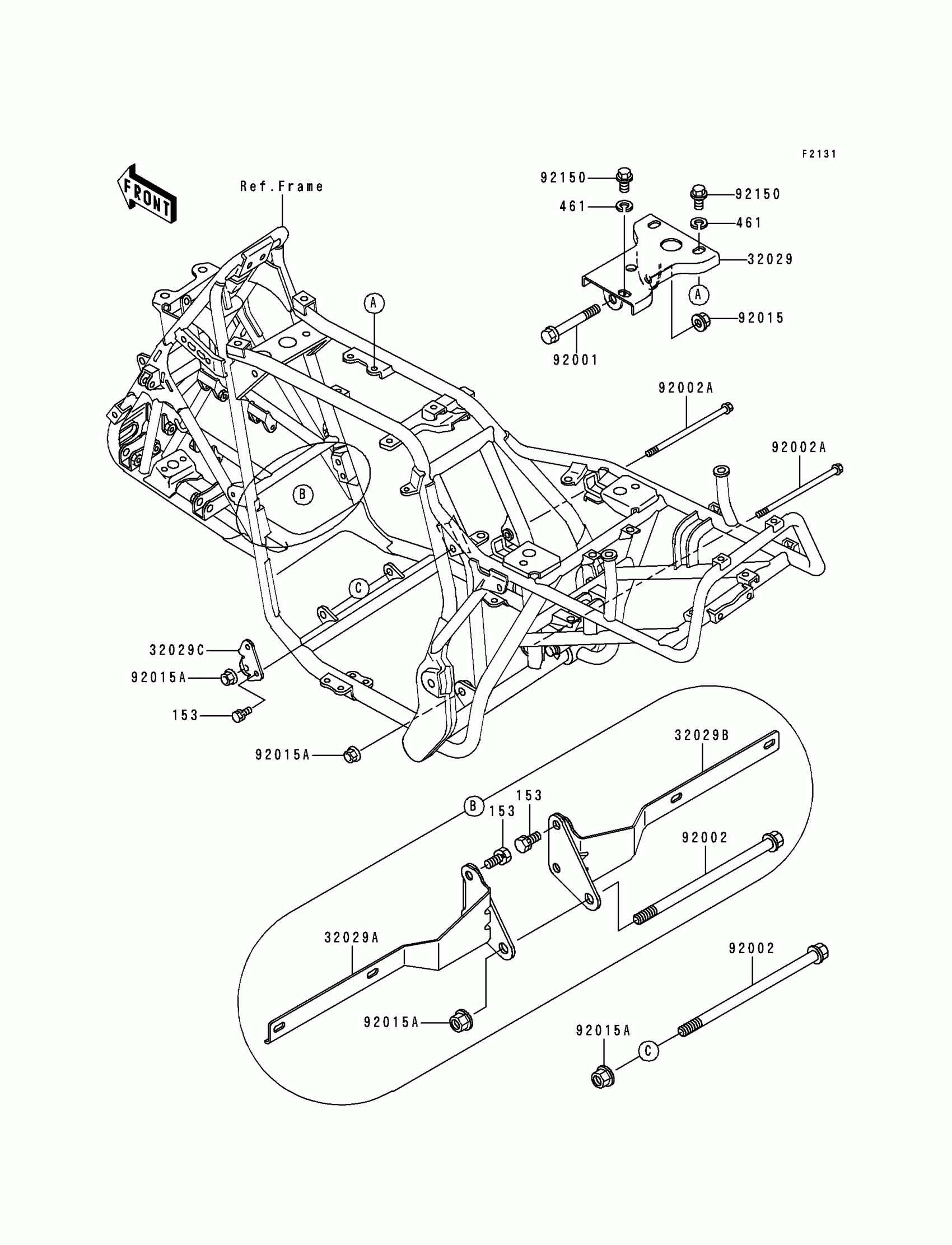

Kawasaki Bayou 300 Frame Fitting Diagram

Description

Price

153

BOLT-WS-SMALL,8X18

153J0818

$2.49

461

WASHER-SPRING,8MM,BLACK

461K0800

Unavailable

32029

BRACKET-ENGINE,TOP

32029-1569

$108.97

32029A

BRACKET-ENGINE,LH

32029-1594

$108.97

32029B

BRACKET-ENGINE,RH

32029-1595

$108.97

32029C

BRACKET-ENGINE

32029-1597

$44.63

92001

BOLT,FLANGED,8X60,BLACK

92001-1615

$5.97

92002

BOLT,FLANGED,10X180

92002-1546

$16.02

92002A

BOLT,FLANGED,10X190

92002-1548

$14.76

92015

NUT,8MM

92015-1432

$5.21

92015A

NUT,FLANGED,10MM

92015-1727

$3.85

92150

BOLT,FLANGED,8X14

92150-1066

$4.25
