1986 Kawasaki Bayou 300 Rear Axle Diagram

← All diagrams

Find the part on the Rear Axle diagram for your 1986 Kawasaki Bayou 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

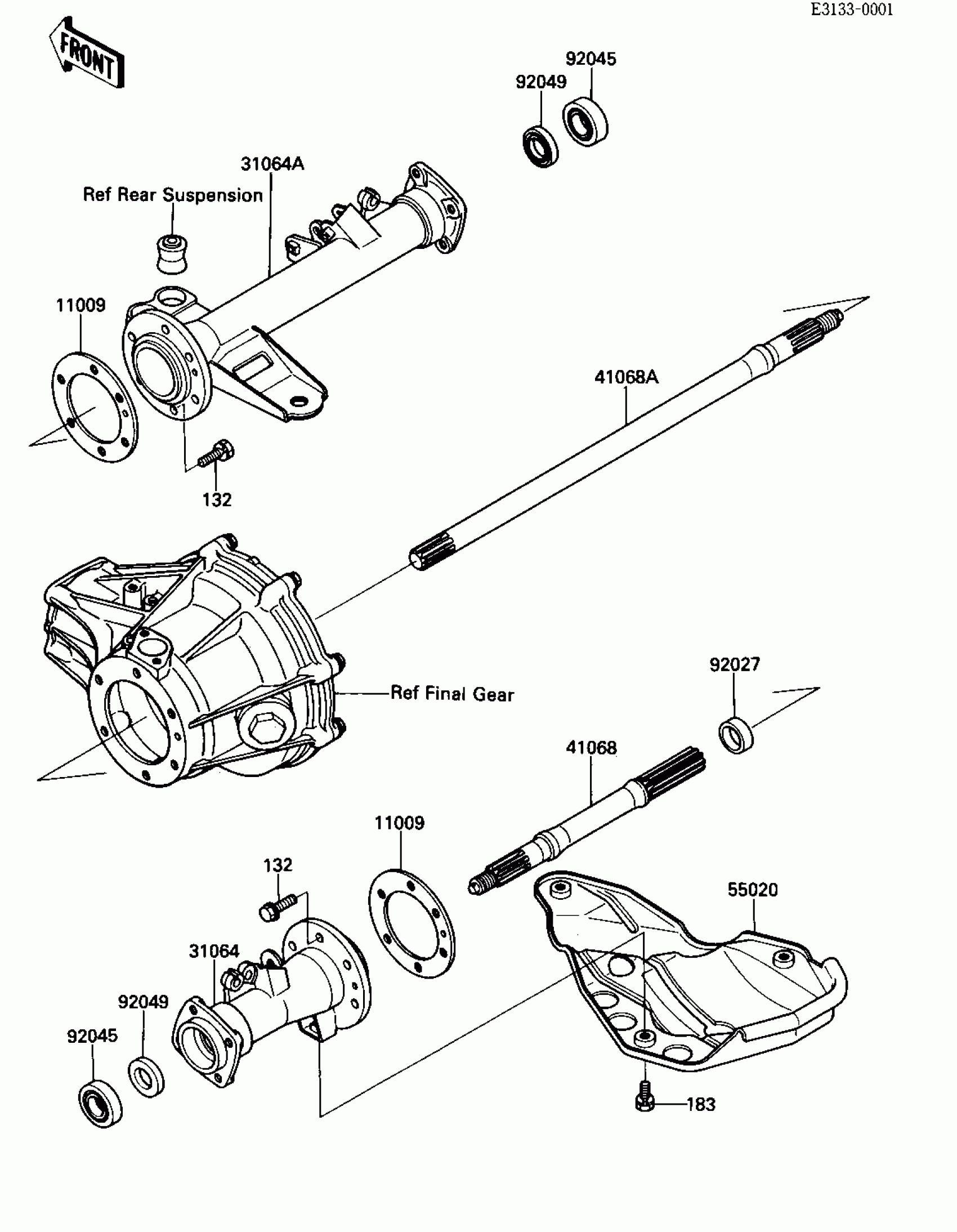

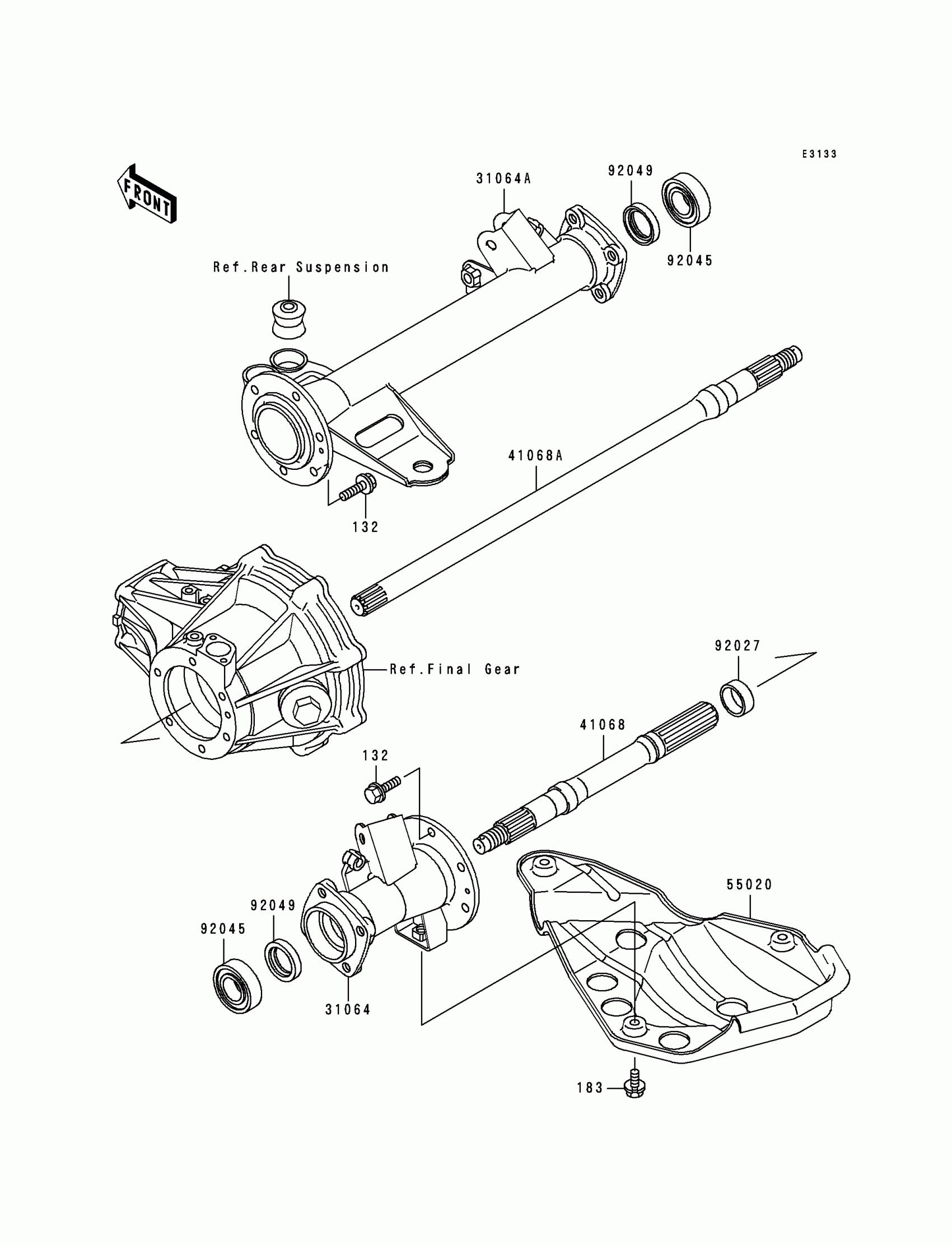

1986 Kawasaki Bayou 300 Rear Axle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,FINAL GEAR CAS

11009-1526

1
Out of stock

31064

PIPE-COMP,LH

31064-1065

1

$226.17

In stock

31064A

PIPE-COMP,RH

31064-1066

1

$344.79

In stock

41068

AXLE,LH

41068-1208

1

$130.88

In stock

41068A

AXLE,RH

41068-1209

1

$546.05

In stock

55020

1

$102.60

In stock

92027

COLLAR,23X30X12

92027-1892

1

$11.41

In stock

92045

BEARING-BALL

92045-1163

1

$30.64

In stock

92049

SEAL-OIL,SO30428

92049-1236

1
Out of stock

132

BOLT-FLANGED-SMALL,8X25

132J0825

1
Out of stock

183

1

$2.29

In stock
