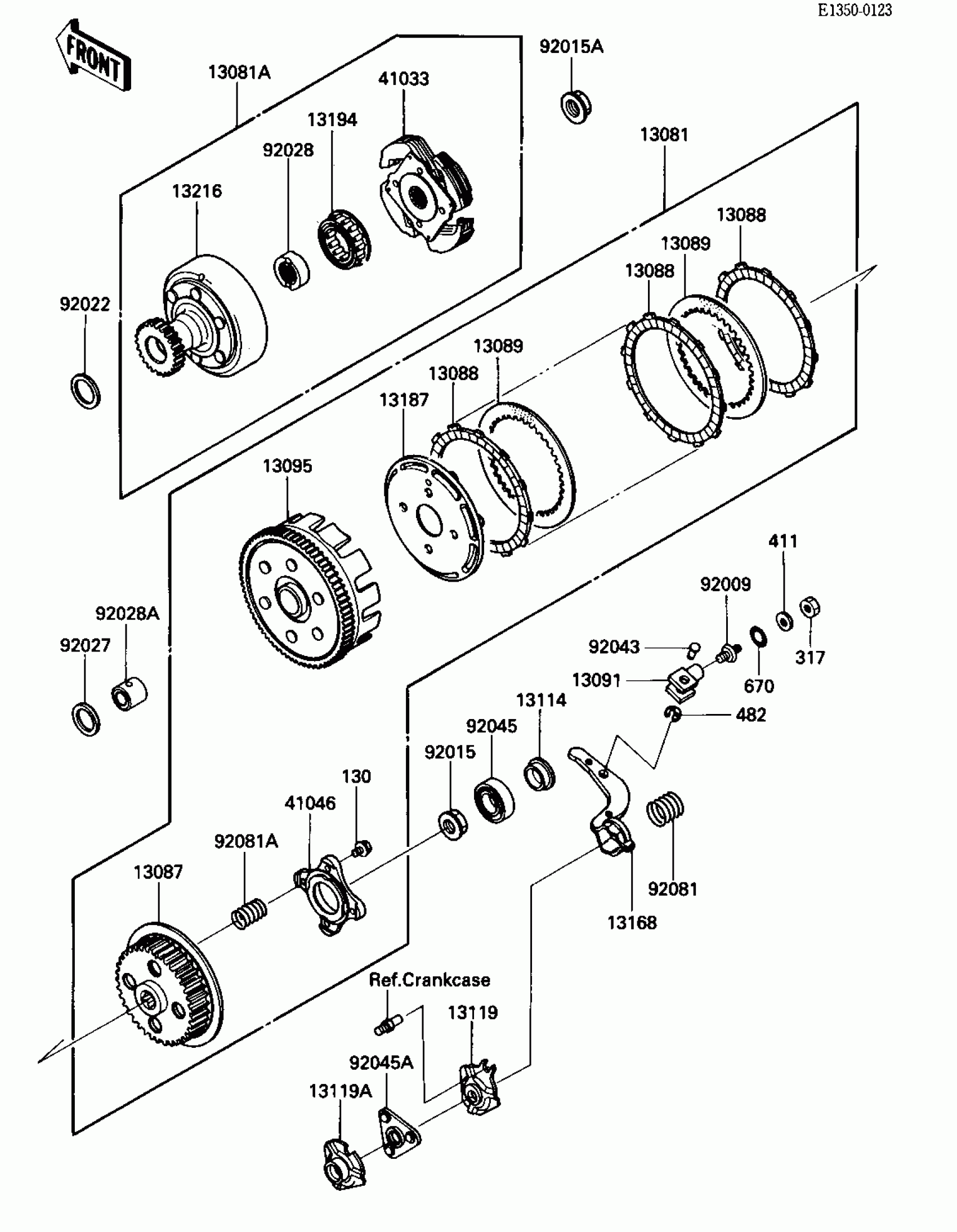

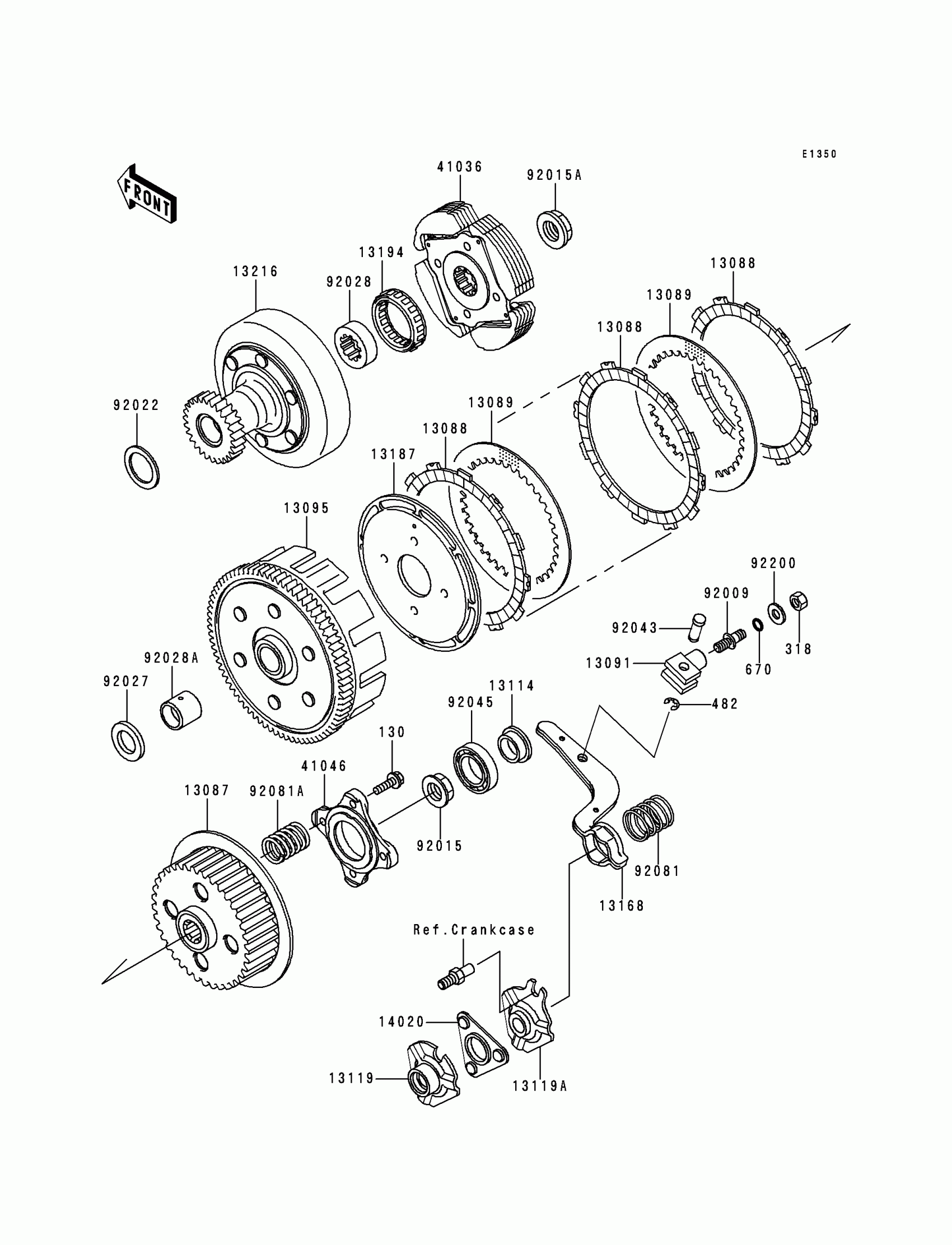

Kawasaki Bayou 300 CLUTCH Diagram

#

Description
Price

13081

CLUTCH-ASSY

13081-1203

Unavailable

13081A

CLUTCH-ASSY,FR

13081-1204

Unavailable

13087

HUB-CLUTCH

13087-1065

$112.15

13088

PLATE,CLUTCH FRICTION

13088-041

Unavailable

13089

PLATE-CLUTCH,T=2.0

13089-1005

$9.73

13091

HOLDER,CLUTCH RELEASE

13091-1341

$47.79

13095

HOUSING-COMP-CLUTCH

13095-1133

Unavailable

13114

PUSHER-CLUTCH

13114-1056

$22.41

13119

CAM-RELEASE

13119-1060

Unavailable

13119A

CAM-RELEASE

13119-1054

Unavailable

13168

LEVER,CLUTCH RELEASE

13168-1263

$39.15

13187

PLATE-CLUTCH OPERATING

13187-1053

Unavailable

13194

CLUTCH-ONEWAY

13194-1055

$126.70

13216

GEAR-COMP,CLUTCH,FR

13216-1073

Unavailable

41033

HUB-ASSY,CLUTCH,FR

41033-1937

$432.81

41046

HOUSING-BEARING

41046-1063

$61.06

92009

SCREW,CLUTCH RELEASE

92009-1303

$9.48

92015

NUT,16MM

92015-1465

$14.01

92015A

NUT,18MM

92015-1512

$14.25

92022

WASHER,27.3X38X1.5

92022-1683

$5.25

92027

COLLAR,20.5X34X4

92027-1888

$18.36

92028

BUSHING,CLUTCH,FR

92028-1370

$40.06

92028A

BUSHING,CLUTCH

92028-1371

$32.44

92043

PIN,CLUTCH RELEASE

92043-1230

$11.92

92045

BEARING-BALL,#6905

92045-036

$22.57

92045A

RETAINER,CLUTCH RELEASE

14020-1093

$19.47

92081

SPRING

92081-1681

Unavailable

92081A

SPRING,CLUTCH

92081-1848

$9.47

130

BOLT-FLANGED,6X20

130P0620

$1.22

317

NUT-HEX-SMALL,8MM

317B0800

Unavailable

411

WASHER PLAIN 8MM

411B0800

Unavailable

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.65

670

O RING,8MM

670B1508

$1.00
