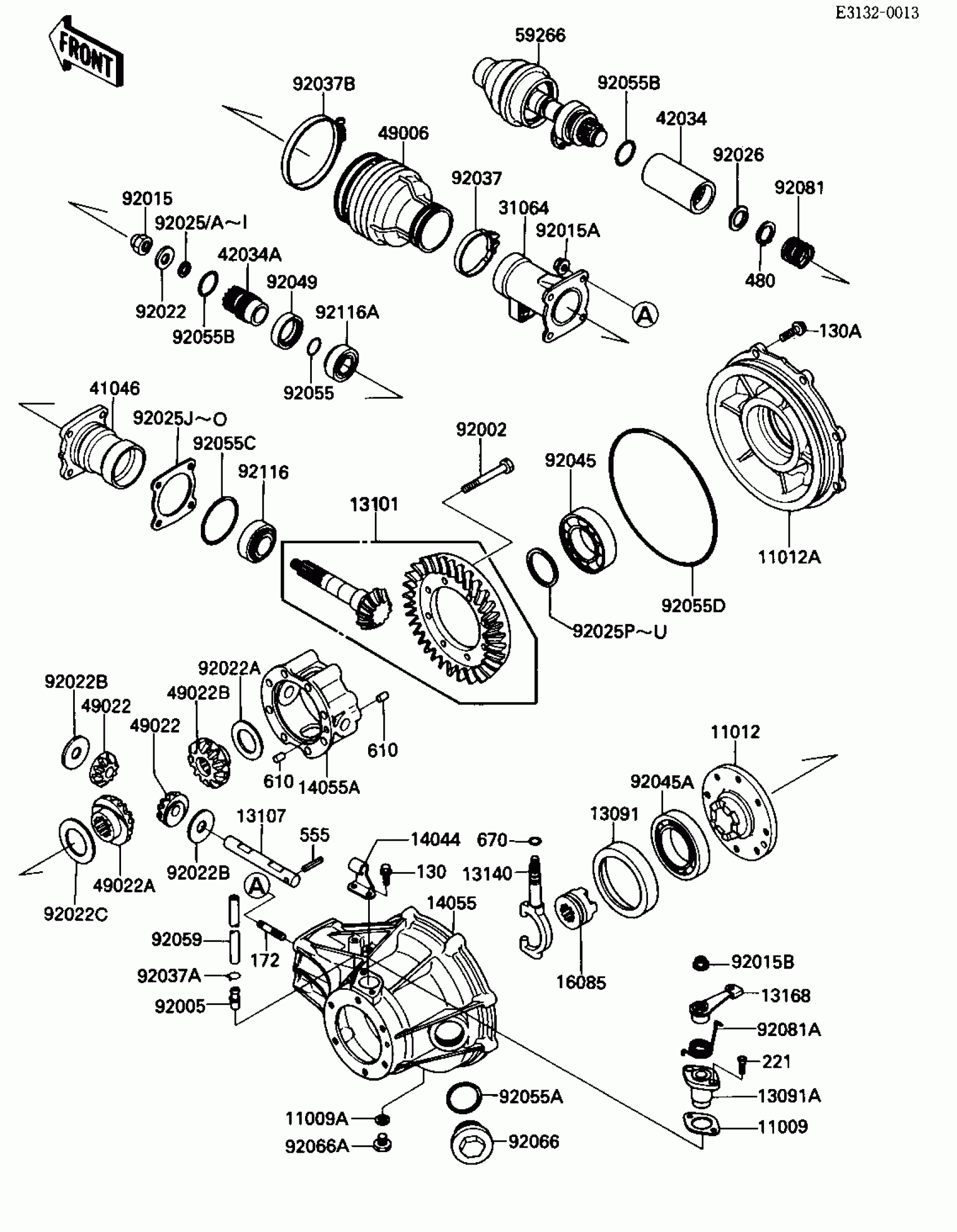

Kawasaki Bayou 300 DRIVE SHAFT/FINAL GEARS Diagram

#

Description
Price

11009

GASKET

11009-1521

$4.07

11009A

GASKET,10.5X16X1

92065-058

$3.03

11012

CAP,BEVEL GEAR

11012-1444

$265.28

11012A

CAP

11012-1445

Unavailable

13091

HOLDER

13091-1374

Unavailable

13091A

HOLDER

13091-1375

$102.60

13101

GEAR-ASSY,DIFFERENTIAL CASE

13101-5054

$848.89

13107

SHAFT,BEVEL GEAR

13107-1149

$38.59

13140

FORK-SHIFT,DIFF LOCK

13140-1136

Unavailable

13168

LEVER

13168-1268

$25.29

14044

HOLDER-CABLE,DIFFERENTIAL

14044-1058

$10.63

14055

CASE-GEAR

14055-1082

$551.21

14055A

CASE-GEAR,BEVEL

14055-1059

$261.43

16085

GEAR,DIFF LOCK

16085-1142

$69.05

31064

PIPE-COMP,FR

31064-1068

$168.41

41046

HOUSING-BEARING

41046-1065

$189.14

42034

COUPLING,DRIVE SHAFT

42034-1077

Unavailable

42034A

COUPLING,DIFFERENTIAL CASE

42034-1078

$133.13

49006

BOOT,DRIVE SHAFT

49006-1176

$21.04

49022

GEAR-BEVEL,10T

49022-1065

$75.82

49022A

GEAR-BEVEL,OD=35,16T

49022-1076

$137.57

49022B

GEAR-BEVEL,OD=30,16T

49022-1077

$84.96

59266

JOINT-BALL,DRIVE SHAF

59266-1068

Unavailable

92002

BOLT,8X68

92002-1553

$8.08

92005

FITTING,BREATHER

92005-1127

$16.10

92015

NUT,12MM

92015-1182

$7.69

92015A

NUT,8MM

92015-1402

$3.57

92015B

NUT,FLANGED,8MM

92015-1406

$3.39

92022

WASHER,12.3X25X3.2

92022-1293

$5.75

92022A

WASHER,30.5X50X1

92022-1685

$13.12

92022B

WASHER,14.5X38X1

92022-1686

Unavailable

92022C

WASHER

92022-1742

$9.82

92025

SHIM,12.5X17X1.30

92025-1282

Unavailable

92025A

SHIM,12.5X17X0.1

92025-1287

Unavailable

92025B

SHIM,12.5X17X0.2

92025-1288

Unavailable

92025C

SHIM,12.5X17X0.3

92025-1289

Unavailable

92025D

SHIM,12.5X17X0.5

92025-1290

Unavailable

92025E

SHIM,12.5X17X0.6

92025-1291

Unavailable

92025F

SHIM,12.5X17X0.7

92025-1292

Unavailable

92025G

SHIM,12.5X17X0.8

92025-1293

Unavailable

92025H

SHIM,12.5X17X0.9

92025-1294

Unavailable

92025I

SHIM,12.5X17X1.0

92025-1295

Unavailable

92025J

SHIM,T=0.10

92025-1703

Unavailable

92025K

SHIM,T=0.15

92025-1704

Unavailable

92025L

SHIM,T=0.50

92025-1705

Unavailable

92025M

SHIM,T=0.80

92025-1706

Unavailable

92025N

SHIM,T=1.00

92025-1707

Unavailable

920250

SHIM,T=1.20

92025-1708

Unavailable

92025P

SHIM,40.5X50X0.10

92025-1709

Unavailable

92025Q

SHIM,40.5X50X0.15

92025-1710

Unavailable

92025R

SHIM,40.5X50X0.50

92025-1711

Unavailable

92025S

SHIM,40.5X50X0.80

92025-1712

Unavailable

92025T

SHIM,40.5X50X1.00

92025-1713

Unavailable

92025U

SHIM,40.5X50X1.20

92025-1714

Unavailable

92026

SPACER,DRIVE SHAFT

92026-1106

Unavailable

92037

CLAMP

92037-1523

$9.39

92037A

CLAMP

92037-1610

$1.42

92037B

CLAMP

92037-1654

$7.04

92045

BEARING-BALL,6208CM

92045-1145

$51.77

92045A

BEARING-BALL

92045-1162

$46.25

92049

SEAL-OIL

92049-1231

$12.08

92055

RING-O,17.5X1.5

92055-022

$4.67

92055A

RING-O,36MM

92055-1005

$4.64

92055B

RING-O,27MM

92055-1119

$3.81

92055C

RING-O,54.8MM

92055-1296

$7.81

92055D

RING-O,179.8MM

92055-1297

Unavailable

92059

TUBE,6X9X750

92059-1372

$14.06

92066

PLUG,36X7.5

92066-1006

$15.61

92066A

PLUG,DRAIN,10X12

92067-001

$3.36

92081

SPRING

92081-1650

$7.47

92081A

SPRING

92081-1853

$8.56

92116

BEARING-ROLLER,4T-CR-0566

92116-1005

$48.92

92116A

BEARING-ROLLER,4T32004X

92116-1010

$41.33

130

BOLT-FLANGED,6X10

130B0610

Unavailable

130A

BOLT-FLANGED,8X25

130G0825

Unavailable

172

STUD,8X25

92004-1008

$2.46

221

SCREW-CSK-CROS,6X18

221B0618

Unavailable

480

CIRCLIP-TYPE-C,20MM

480J2000

$2.12

555

PIN-SPRING

555A0528

$4.25

610

PIN-DOWEL,8X12

610A0812

$3.20

670

O RING,10MM

670B2010

$1.13
