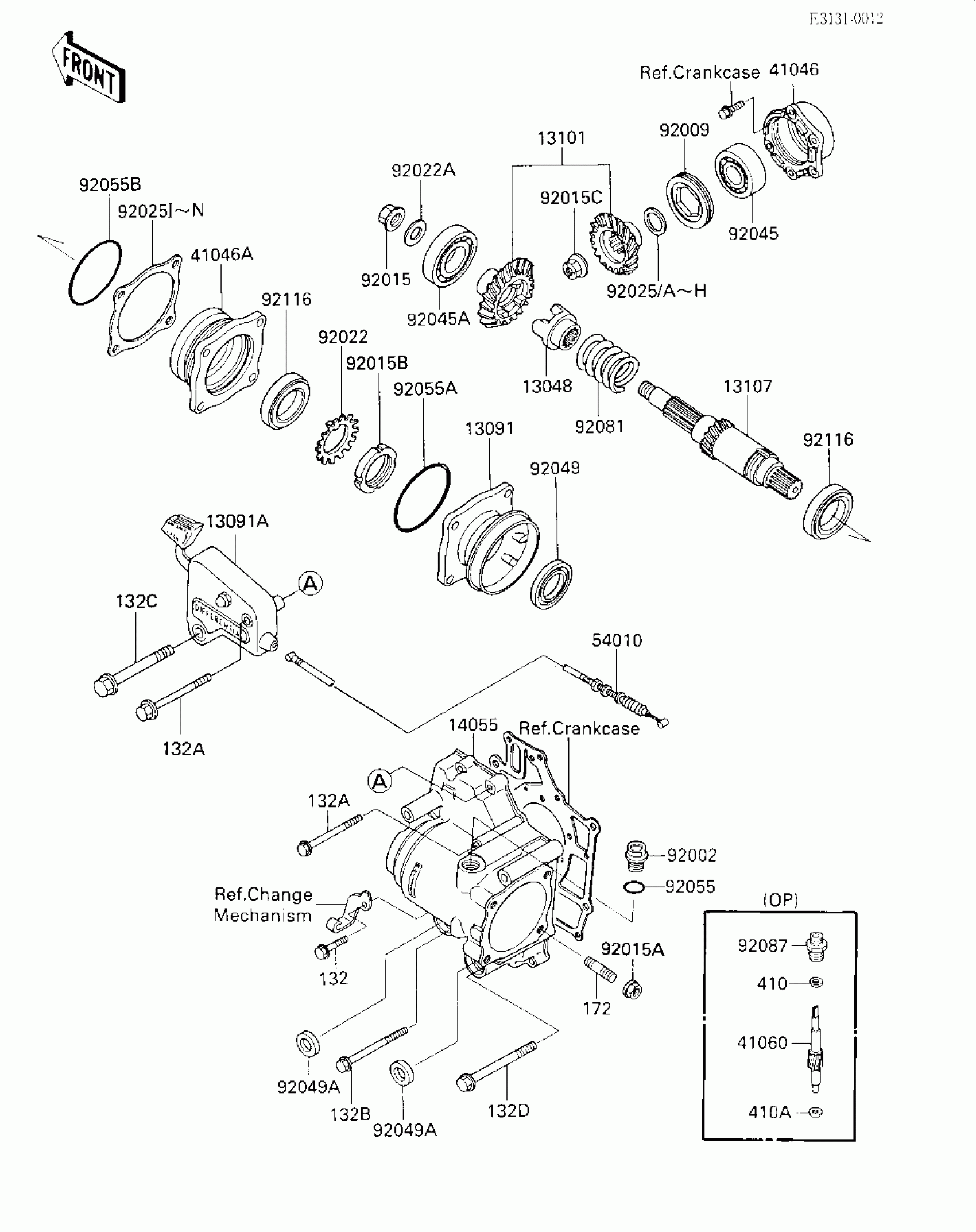

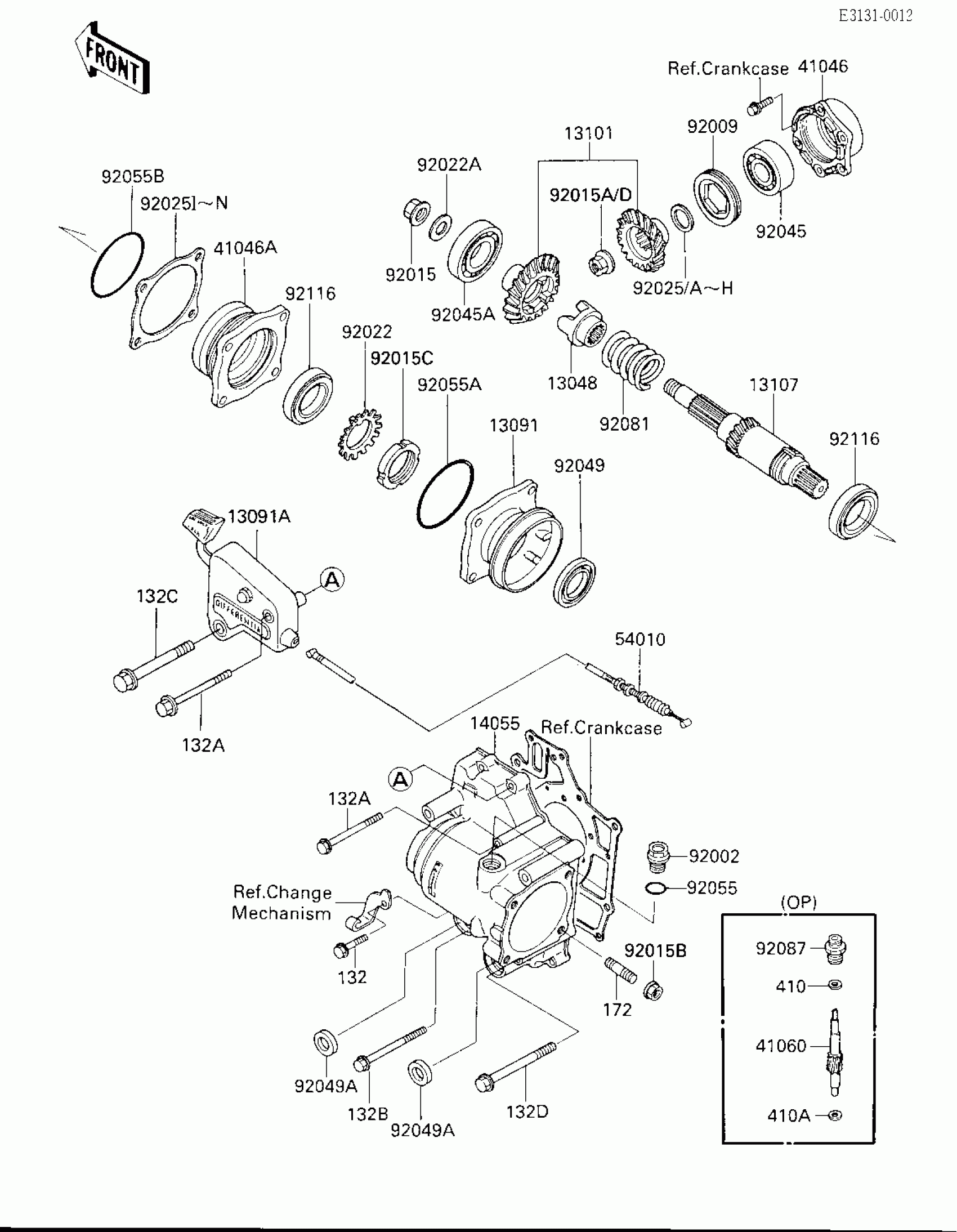

Kawasaki Bayou 300 FRONT BEVEL GEARS Diagram

#

Description
Price

13048

CAM-DAMPER,FR

13048-1059

$79.87

13091

HOLDER,GEAR CASE,FR

13091-1377

$93.27

13091A

HOLDER,DIFF LOCK

13091-1410

$186.89

13101

GEAR-ASSY,FRONT BEVEL

13101-5053

Unavailable

13107

SHAFT-COMP,GEAR CASE,FR

13234-1085

$238.91

14055

CASE-GEAR,FR

14055-1058

$444.31

41046

HOUSING-BEARING,GEAR CASE,FR

41046-1064

$128.29

41046A

HOUSING-BEARING,GEAR CASE,FR

41046-1066

$179.51

41060

GEAR-METER SCREW,10T

41060-1113

$37.35

54010

CABLE,DIFF LOCK

54010-1053

Unavailable

92002

BOLT,16X10

92002-1238

$8.58

92009

SCREW,55MM

92009-1384

$35.14

92015

NUT,FLANGED,14MM

92015-1341

$20.37

92015A

NUT,FLANGED,14MM

92015-1341

$20.37

92015B

NUT,8MM

92015-1402

$3.72

92015C

NUT,RING 35MM

92015-1515

$34.32

92015D

NUT,16MM

92015-1581

$15.43

92022

WASHER,LOCK

92022-1687

$8.80

92022A

WASHER,14.2X28X2.6

92022-1688

$7.49

92025

SHIM,20.3X28X1.3

92025-1533

$7.12

92025A

SHIM,20.3X28X0.7

92025-1534

$4.47

92025B

SHIM,20.3X28X0.8

92025-1535

Unavailable

92025C

SHIM,20.3X28X0.9

92025-1536

Unavailable

92025D

SHIM,20.3X28X1.0

92025-1537

Unavailable

92025E

SHIM,20.3X28X1.2

92025-1538

$5.75

92025F

SHIM,20.3X28X0.15

92025-1573

$4.85

92025G

SHIM,20.3X28X0.20

92025-1574

$4.85

92025H

SHIM,20.3X28X1.1

92025-1575

$4.47

92025I

SHIM,T=0.10

92025-1697

$7.14

92025J

SHIM,T=0.15

92025-1698

$7.14

92025K

SHIM,T=0.50

92025-1699

$7.14

92025L

SHIM,T=0.80

92025-1700

$7.44

92025M

SHIM,T=1.00

92025-1701

$8.03

92025N

SHIM,T=1.20

92025-1702

$8.76

92045

BEARING-BALL,5304

92045-1144

$98.45

92045A

BEARING-BALL,6206CM

92045-1155

$25.29

92049

SEAL-OIL

92050-057

$21.77

92049A

SEAL-OIL

92050-082

$6.82

92055

RING-O,ID=13.8

92055-1141

$3.12

92055A

RING-O,76MM

92055-1213

$9.27

92055B

RING-O

92055-1316

$8.03

92081

SPRING,DAMPER

92081-1854

$23.47

92087

BUSHING-METER GEAR

92087-1054

$38.50

92116

BEARING-ROLLER

92116-1055

$48.92

132

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132A

BOLT-FLANGED-SMALL,6X75

132J0675

Unavailable

132B

BOLT-FLANGED-SMALL

132J0685

Unavailable

132C

BOLT-FLANGED-SMALL,8X75

132J0875

Unavailable

132D

BOLT-FLANGED-SMALL

132J0890

Unavailable

172

STUD,8X25

92004-1008

$2.56

410

WASHER PLAIN 5MM

410B0500

Unavailable

410A

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19
