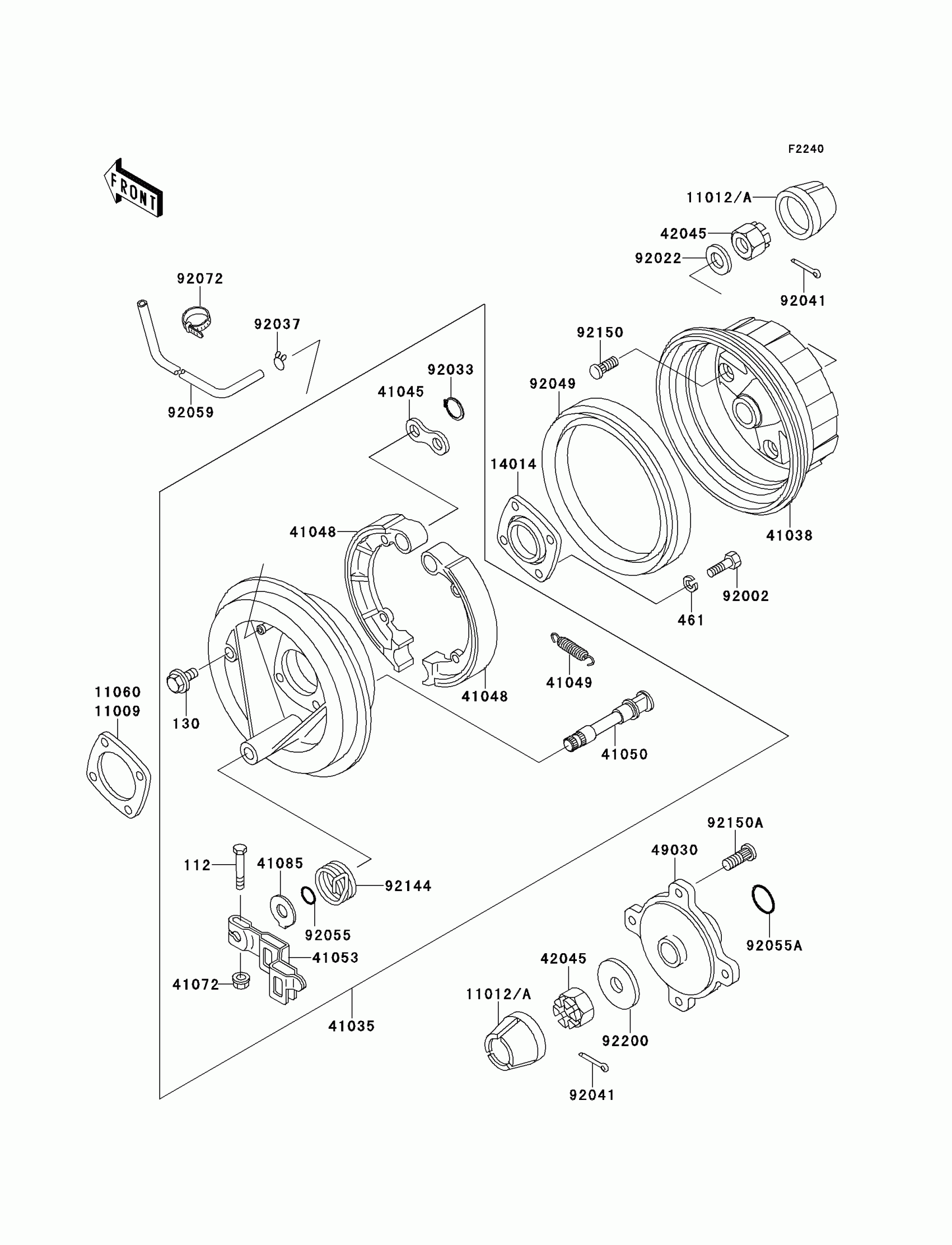

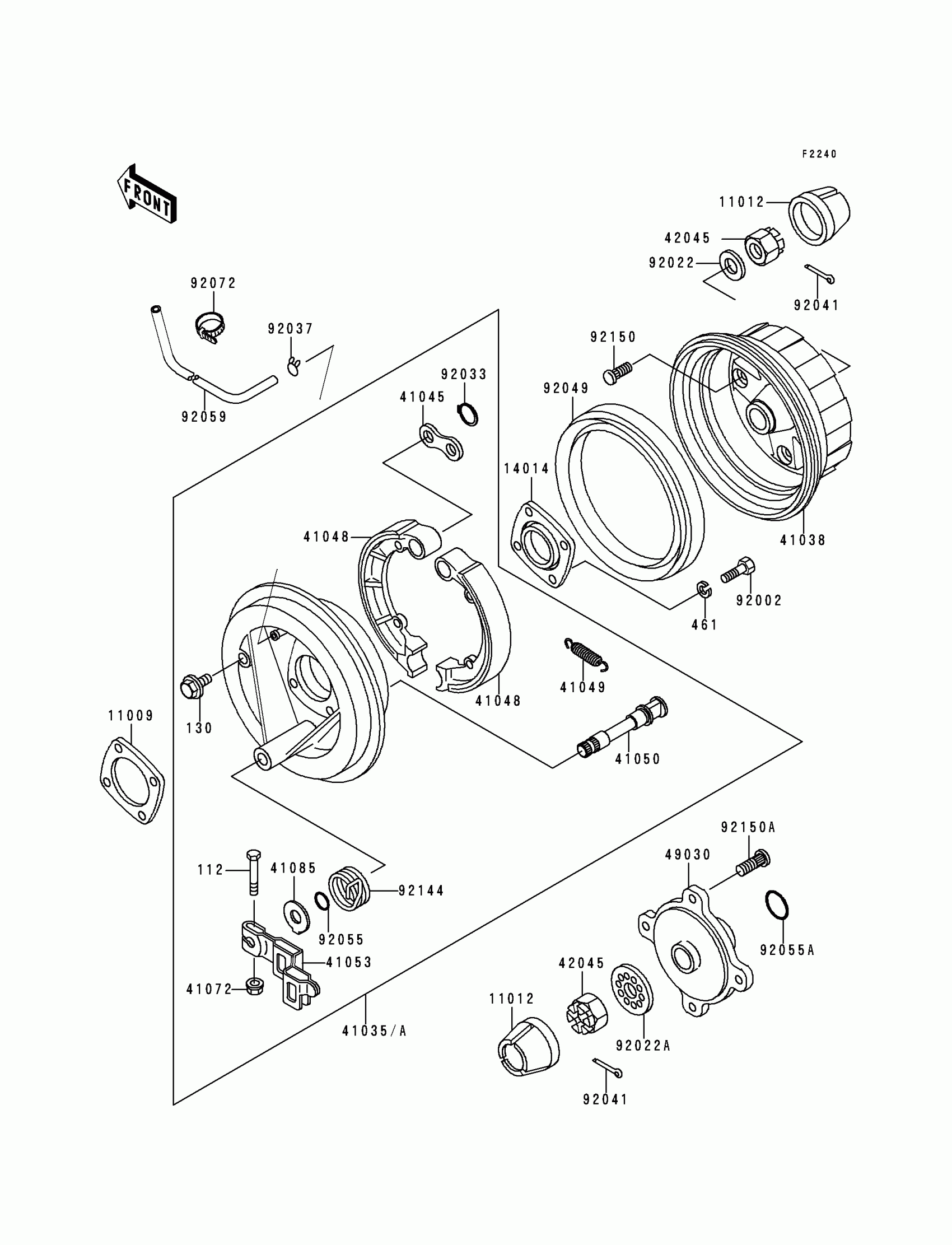

Kawasaki Bayou 300 4X4 Rear Hub Diagram

#

Description
Price

112

BOLT-UPSET

112H0640

Unavailable

130

BOLT-FLANGED,10X12

130B1012

Unavailable

461

WASHER SPRING 10MM

461F1000

Unavailable

11009

GASKET

11009-1765

Unavailable

11012

CAP,WHEEL

11012-1519

Unavailable

14014

PLATE-POSITION

14014-1072

$17.54

41035A

PANEL-ASSY-BRAKE,RR,RH

41035-1279

$637.18

41038

DRUM,REAR BRAKE

41038-1202

$351.84

41045

WASHER-BRAKE SHOE

41045-006

$7.14

41048

SHOE-BRAKE

41048-1082

$34.05

41049

SPRING,BRAKE SHOE

41049-012

$7.23

41050

CAM-BRAKE

41050-1077

$73.51

41053

LEVER-BRAKE CAM

41053-1070

Unavailable

41072

NUT,6MM

41072-007

$2.99

41085

INDICATOR

41085-1062

$15.12

42045

NUT,CASTLE,18MM

42045-018

$7.01

49030

HUB,RR,LH

49030-1104

$147.84

92002

BOLT,10X30

92002-1918

$5.75

92022

WASHER,18.3X34X4.5

92022-1658

$3.42

92022A

WASHER,T=4.5

92022-1794

$6.18

92033

RING-SNAP,15MM

92033-1250

$3.95

92037

CLAMP,TUBE

92037-147

$5.61

92041

COTTER,4.0X35

92041-1053

$2.99

92049

SEAL-OIL,SD07 190 225 16 NS

92049-1312

$136.85

92055

RING-O,ID=16.4

92055-1376

$4.08

92055A

RING-O,ID=24.5

92055-1459

$3.60

92059

TUBE,4.7X9.5X1240

92059-1968

$21.61

92072

BAND,L=123

92072-030

$3.81

92144

SPRING

92144-1365

$12.36

92150

BOLT,10MM

92150-1110

$4.43

92150A

BOLT

92150-1289

$4.04
